Motorola AP 7161 User Manual

Installation Guide 35

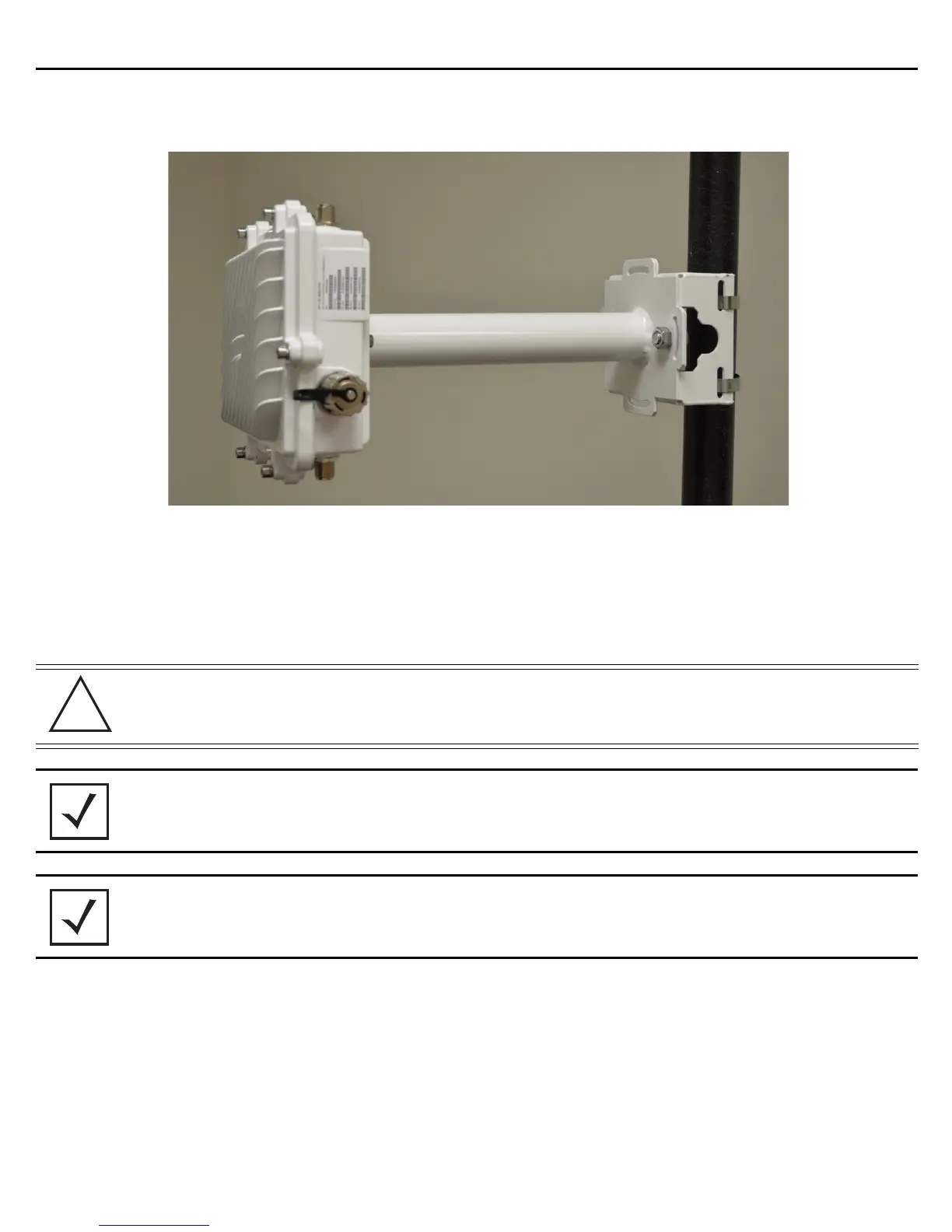

An example of using the extension arm with only the pole mount bracket is shown below:
2.2.2 Wall Mounted Installations
For wall mounted installations, use only the Access Point bracket section and angle adjust bracket section if
required.
CAUTION Always mount the AP 7161 with the black gore vent facing down.
NOTE The U-bolt and band clamps are not included in the mounting bracket kit.
NOTE The lag bolts are not included in the mounting bracket kit.
!
