36 AP 7161 Access Point

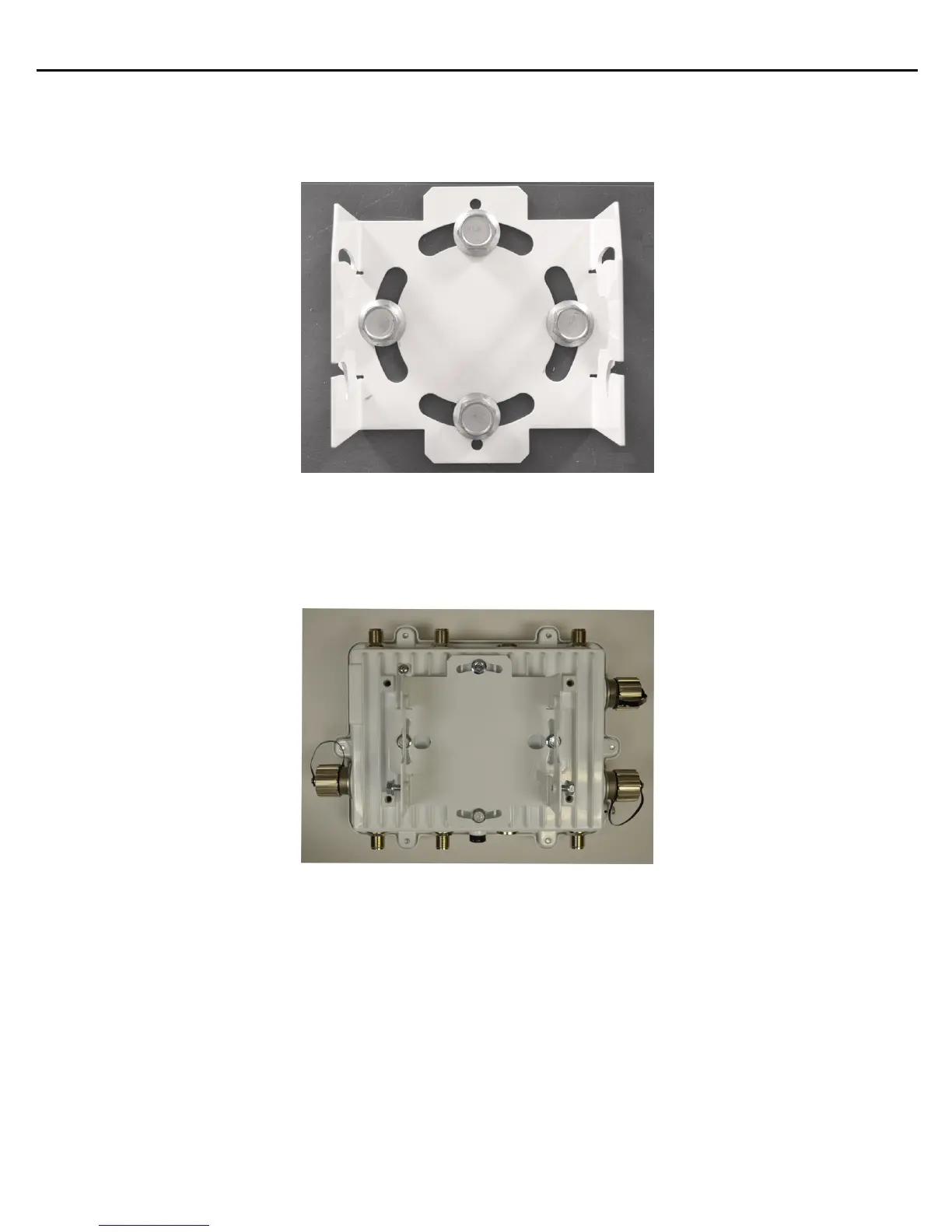

1. With the open slot connections facing down, attach the angle adjust bracket section at the desired
mounting location using four #10/32 lag bolts.
2. Using a torque wrench or a ratchet and a 10mm socket, or an adjustable wrench, attach (but don’t tighten)
the Access Point bracket section to the AP 7161 with four M6 hex flange screws and insert two M6 hex
flange screws into the bottom holes on the sides of the Access Point bracket section.
3. With the Access Point positioned so that the gore vent is facing down, insert the two M6 hex flange
screws in the bottom holes on the sides of the Access Point bracket section into the open slot connections
on the bottom of the angle adapter bracket section. Rotate the Access Point bracket section upward and
