Installation Guide 23
2 AP 7161 Hardware Mounting and Installation
It is recommended to use the AP 7161 mounting bracket kit (KT-147407-01) for most deployments. When a
standoff distance is required for a pole mounted or wall mounted installation, use the extension arm kit
(KT-150173-01).
The following sections detail the installation procedure for deploying an AP 7161 Access Point.
2.1 Mounting Bracket Kit

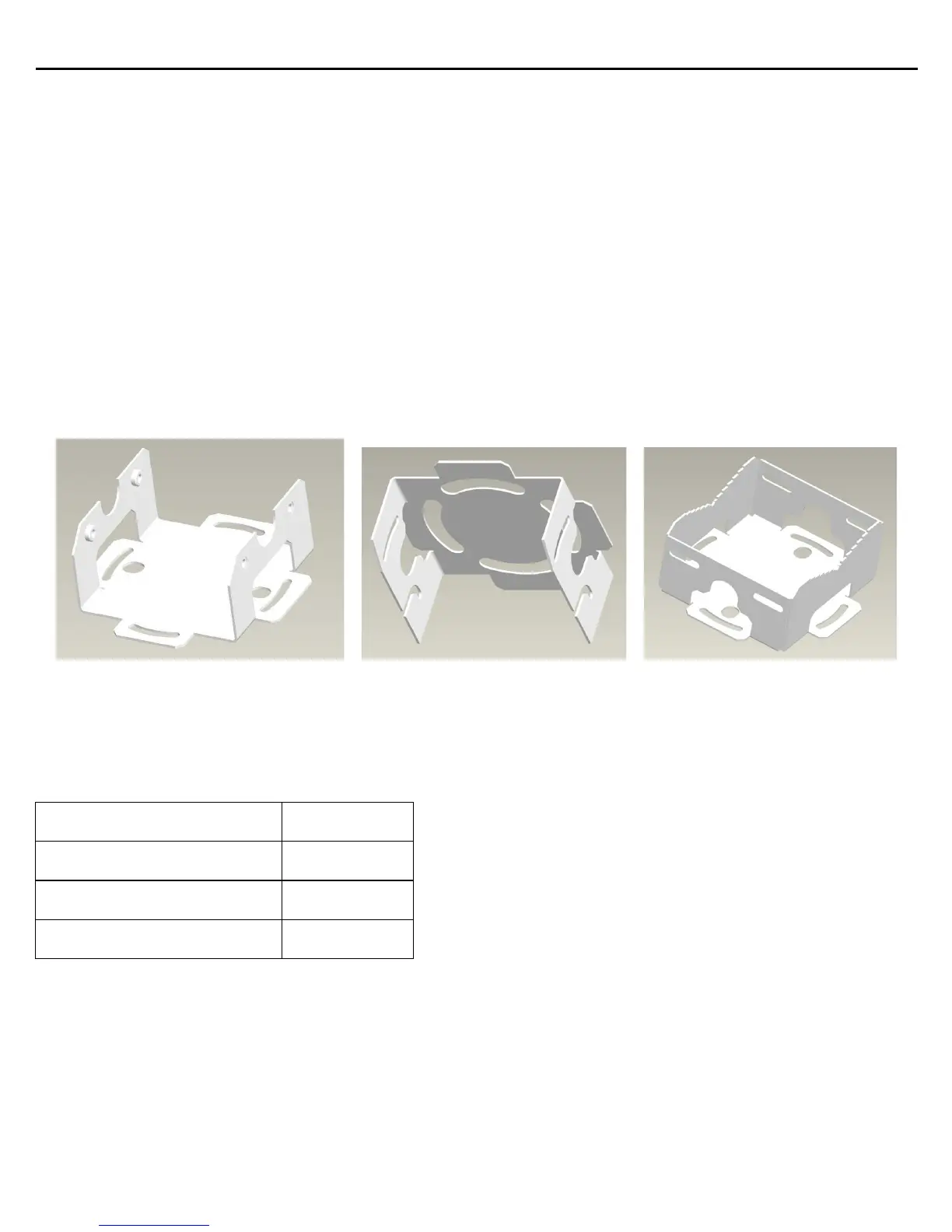

The AP 7161 mounting bracket kit (KT-147407-01) includes the Access Point bracket (left), angle adapter bracket
(center), and pole mount bracket (right) sections:
The Access Point bracket and angle adapter bracket can be rotated (plus or minus 15 degrees) and tilted (up to 45
degrees) to orient the unit for optimal positioning.
The following ancillary hardware to assemble the mounting bracket sections is included in the kit:
Description Quantity
M6 serrated hex flanged screws 8
1/2 inch hex head nut 2
1/2 inch x 3/4 inch hex head bolt 2
To Next Page
