Ports R3-A and R3-B are reserved for the sensor radio. An appropriate multi band antenna should be mounted on
the unit for sensor operation.
1.10.3 AP 7161 Console, GE1/POE and GE2 Ports

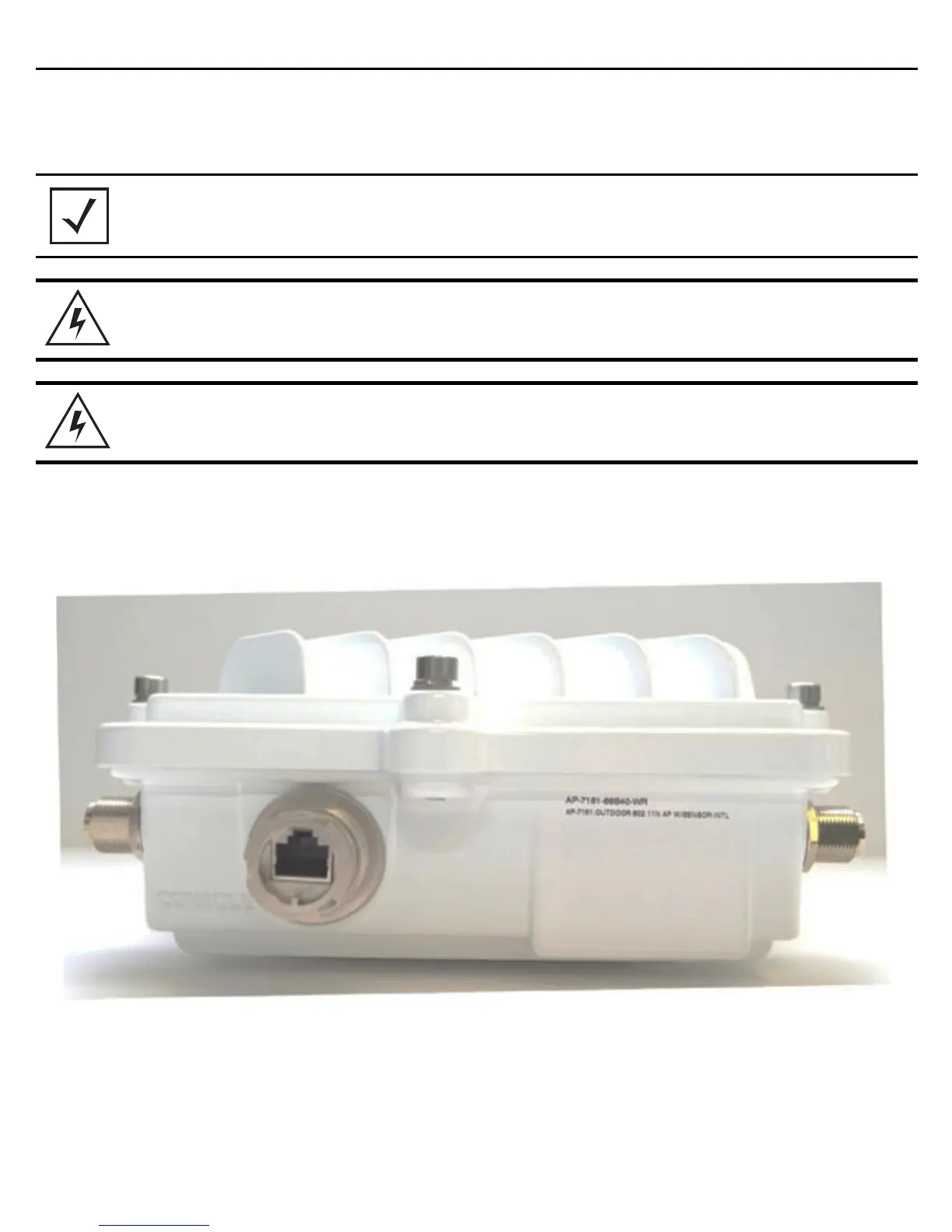

The AP 7161 has Ethernet ports for external console, GE1/POE, and GE2 connections.To gain access to the ports
you will need to remove the protective caps.
NOTE The sensor radio does not function as a WLAN data radio.
WARNING! Antenna ports where no antenna is mounted must be properly terminated using an
approved IP67 terminator.
WARNING! All antenna connectors should be covered with weatherproofing tape.
