Motorola APX 2000 User Manual

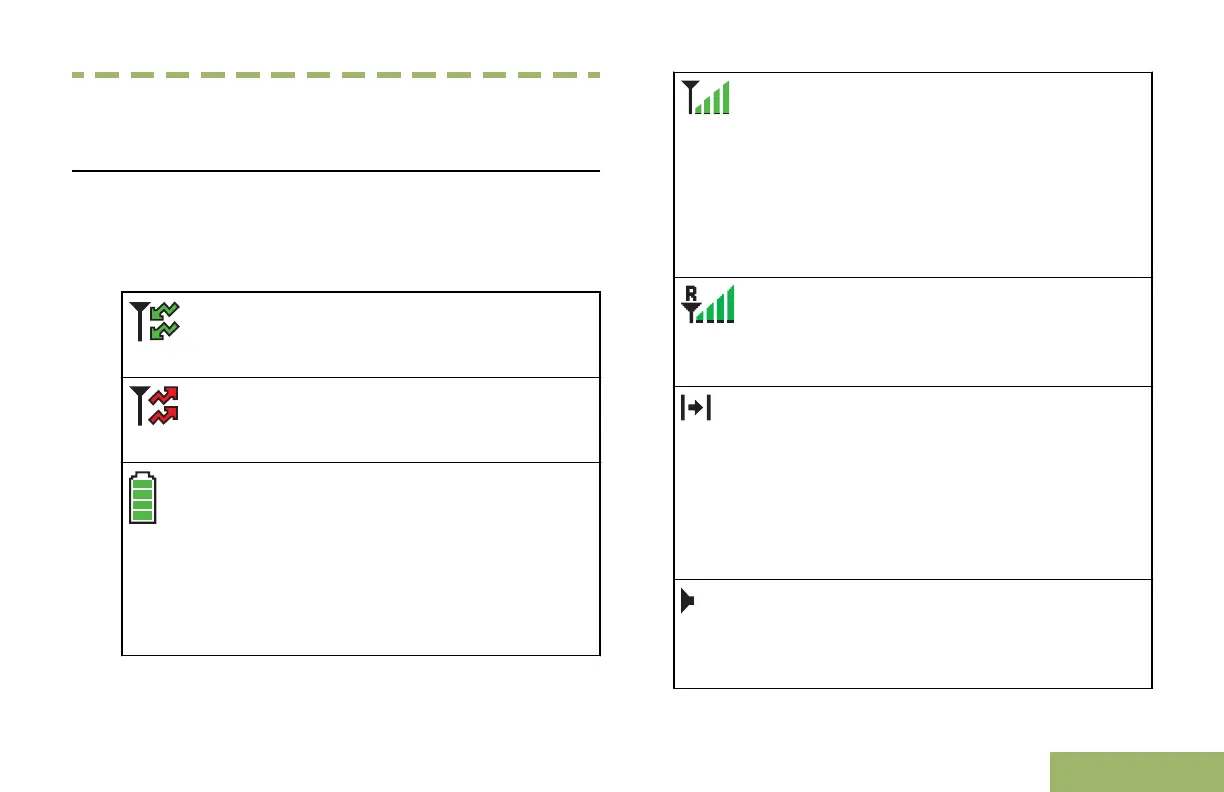

Identifying Status Indicators
Status Icons
The 160 x 90 pixel front liquid crystal display (LCD) of
your radio shows radio status, text entries, and menu
entries. The top two display rows contain color icons
that indicate radio operating conditions.
Receiving
Radio is receiving a call or data.
Transmitting
Radio is transmitting a call or data.
Battery
For IMPRES battery operation only– the
icon shown indicates the charge
remaining in the battery.
For all battery operation– the icon blinks
when the battery is low.
Received Signal Strength Indicator
(RSSI)
The number of bars displayed
represents the received signal strength
for the current site, for trunking only. The
more stripes in the icon, the stronger the
signal.
Roaming
The radio has roamed to and is currently
registered to a foreign system.
Direct
On– Radio is currently configured for
direct radio-to-radio communication
(during conventional operation only).
Off– Radio is connected with other
radios through a repeater.
Monitor (Carrier Squelch)
Selected channel is being monitored
(during conventional operation only).
Identifying Status Indicators
47
English
