Identifying Status Indicators

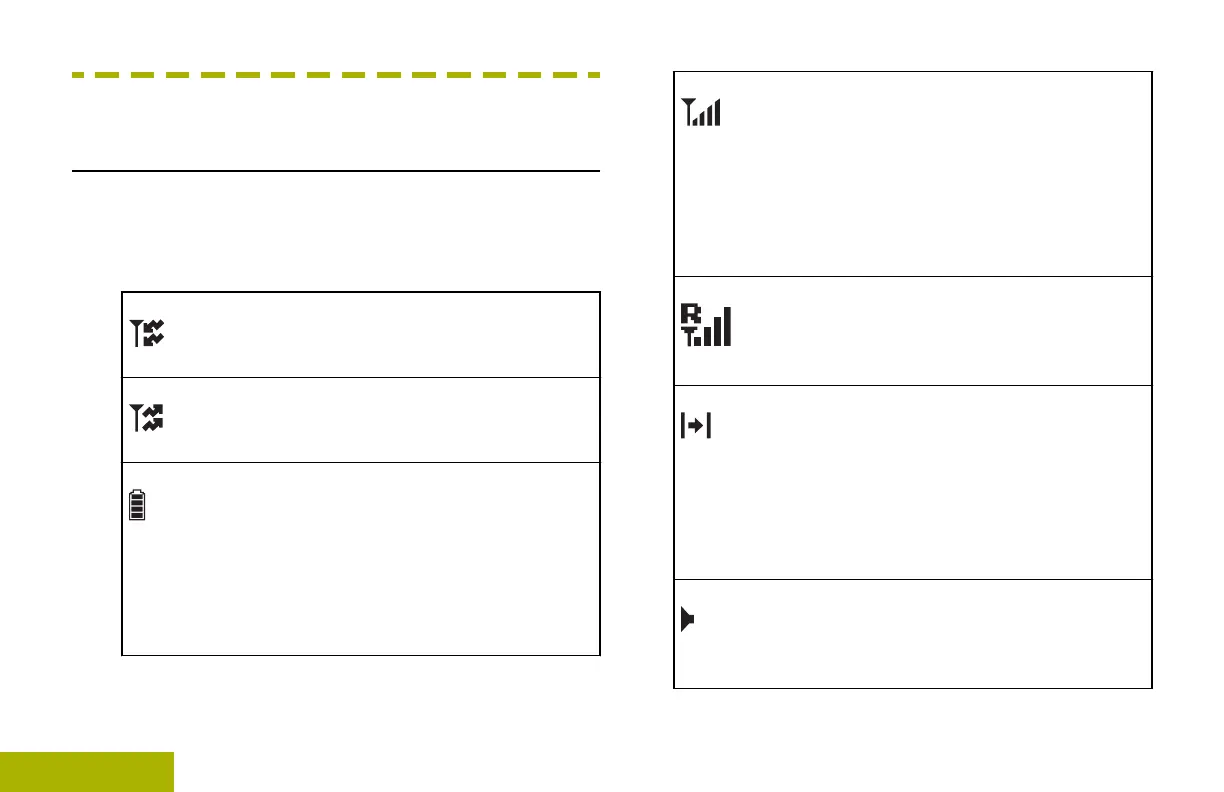

Status Icons
Selected icons are also shown on the first row of the
112 x 32 pixel top monochrome display screen of
your radio. The following icons are for the front
display screen unless indicated otherwise.
Receiving
Radio is receiving a call or data.
Transmitting
Radio is transmitting a call or data.
Battery
For IMPRES 2
™
battery operation only –
the icon shown indicates the charge re-
maining in the battery.
For all battery operation – the icon blinks
when the battery is low.
Received Signal Strength Indicator
(RSSI)
The number of bars displayed repre-
sents the received signal strength for the
current site, for trunking only. The more
stripes in the icon, the stronger the sig-
nal.
Roaming
The radio has roamed to and is currently
registered to a foreign system.
Direct
On – Radio is currently configured for di-
rect radio-to-radio communication (dur-
ing conventional operation only).
Off – Radio is connected with other ra-
dios through a repeater.
Monitor (Carrier Squelch)
Selected channel is being monitored
(during conventional operation only).
