Page #19 background imageLoading...
Page #19 background image

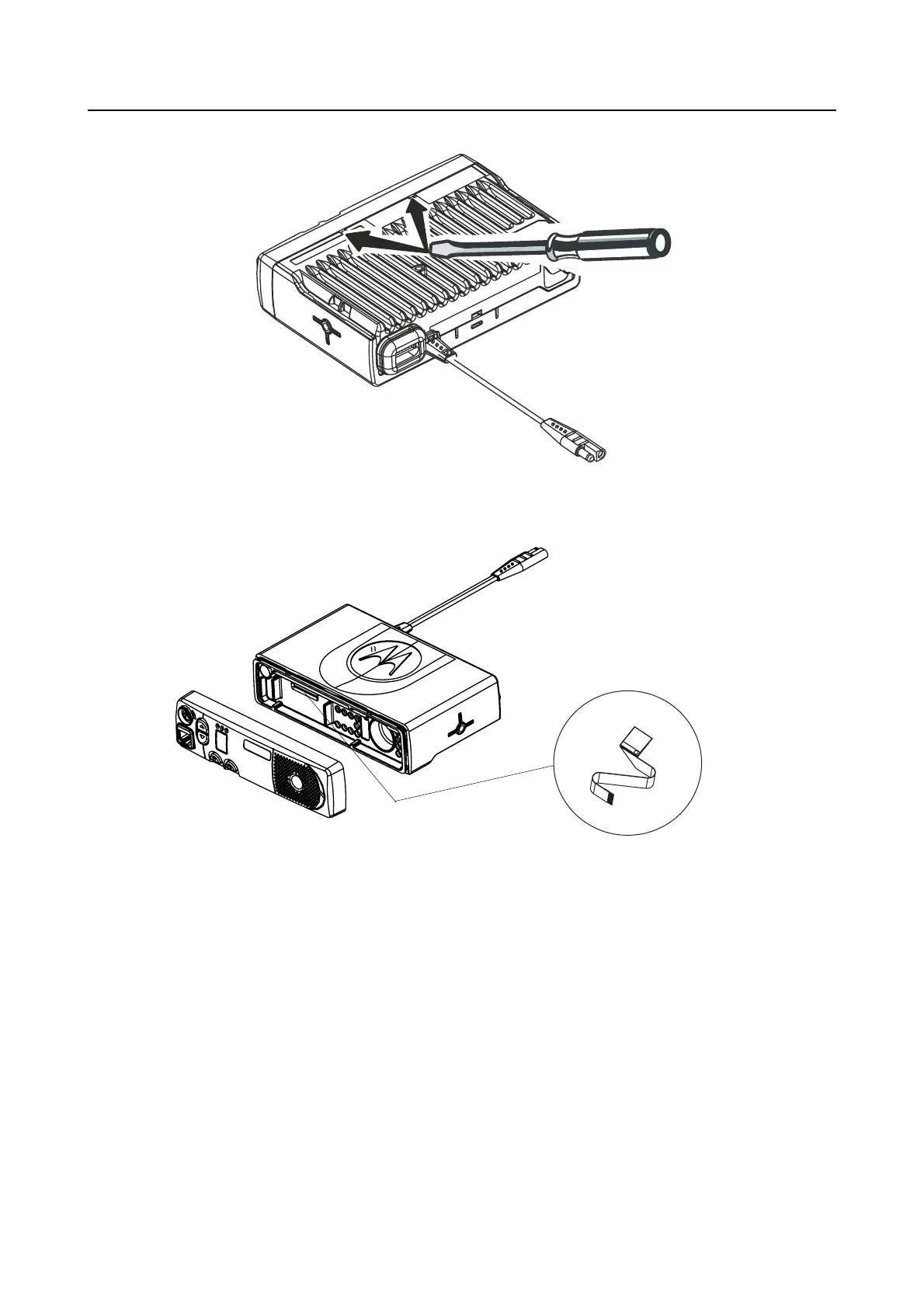

Radio Disassembly - Detailed 2-5
Figure 2-2 Control Head Removal
3. To free the head, disconnect the flat cable from the chassis assembly See Figure 2-3.
Figure 2-3 Flat Cable Removal
