Motorola L2 Service Manual

20 October 14, 2005 6809495A75-O
Disassembly L6
Removing and Replacing the Antenna
1. Remove the battery cover, battery and SIM, as described in the procedures.
2. Use the disassembly tool to gently pry off the RF grommet located on the
antenna cap (see Figure 7).
3. Use the metal tweezers to release the antenna cover latches (see Figure 9).
4. Carefully use the flat end of the disassembly tool to release two latches on the
top end of the antenna cover, then carefully lift the antenna cover away from
the phone.
o

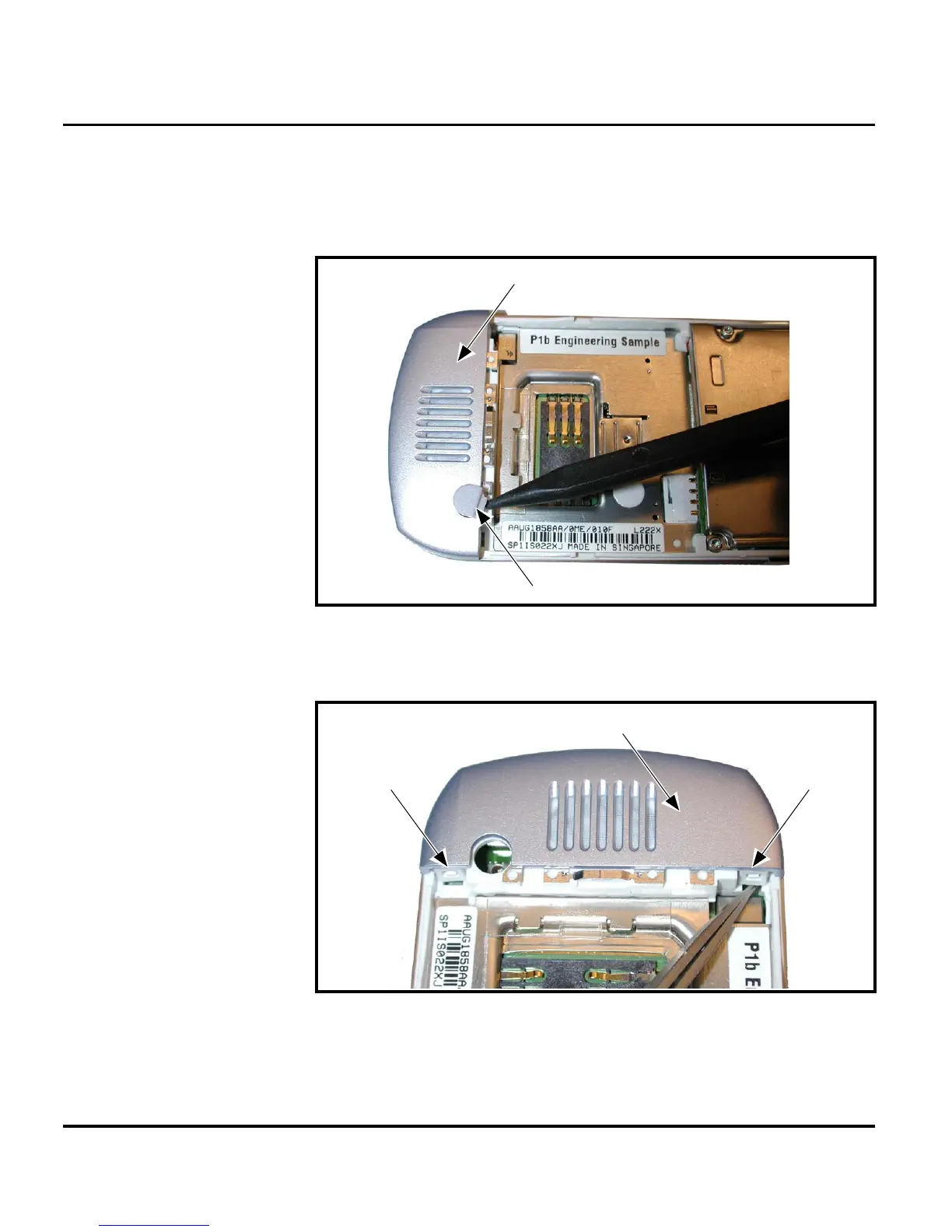

Figure 7. Removing and Replacing the RF Grommet
o
Figure 8. Removing and Replacing the Antenna Cover
Antenna Cover
RF Grommet
Latch
Latch
Antenna Cover
