Motorola L2 Service Manual

6809495A75-O October 14, 2005 41
Level 1 and 2 Service Manual Troubleshooting

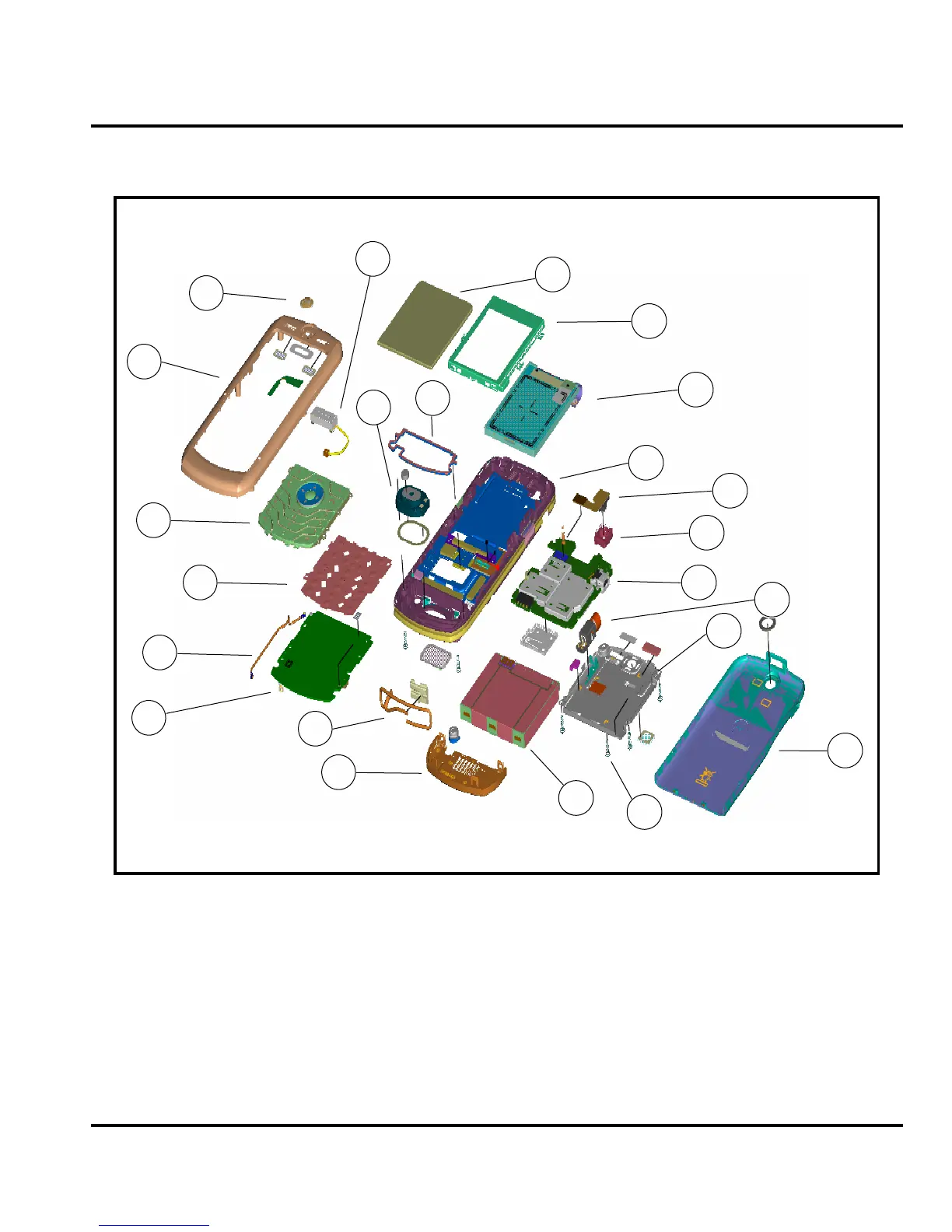

Exploded View Diagram
Figure 26. Exploded View Diagram
22
22
34
34
15
15
36
36
21
21
23
23
20
20
25
25
24
24
26
26
29
29
33
33
37
37
1
6
2
7
17
17
19
19
9
8
11
11
12
12
