3. Refer to Figure 2 and, at control head of radio, disconnect
microphone cord.
4. At rear of radio body, disconnect power and antenna cables.
5. At each side of radio, unscrew (counterclockwise) and remove the
wing screw that attaches radio body to radio trunnion.
6. Slide radio out of radio trunnion.
7. If only the control head of the radio is to be relocated and the
radio body is to remain where it is, skip the next two steps and
proceed to step 1 of the paragraph titled “Reconfiguring Control
Head” (Model I only or Models II and III only, as appropriate).
Otherwise, continue with next step.
8. Remove radio trunnion from its present location by removing the
four screws that attach it to vehicle.
9. Disconnect existing power cable from vehicle battery circuit. Then
remove power cable from vehicle.
Reconfiguring Control
Head (Model I only)
1. In Installation Manual 68P02058U20, refer to section titled
“Control Head Remote Mount Installation”.
2. Remove control head from radio body.
NOTE:
The control head of the Model I radio
has a built-in loudspeaker. An external
loudspeaker can also be used with the
Model I radio. However, the
loudspeaker built-into the control
head and an external loudspeaker
cannot be used simultaneously. Step 3
below provides instructions for
Figure 1 Microphone Cord S-Hook
Connected to Trunnion
Radio
Trunnion
S-Hook
S-Hook Hole
(Four Places)
Microphone
Cord
MAEPF-25537-O

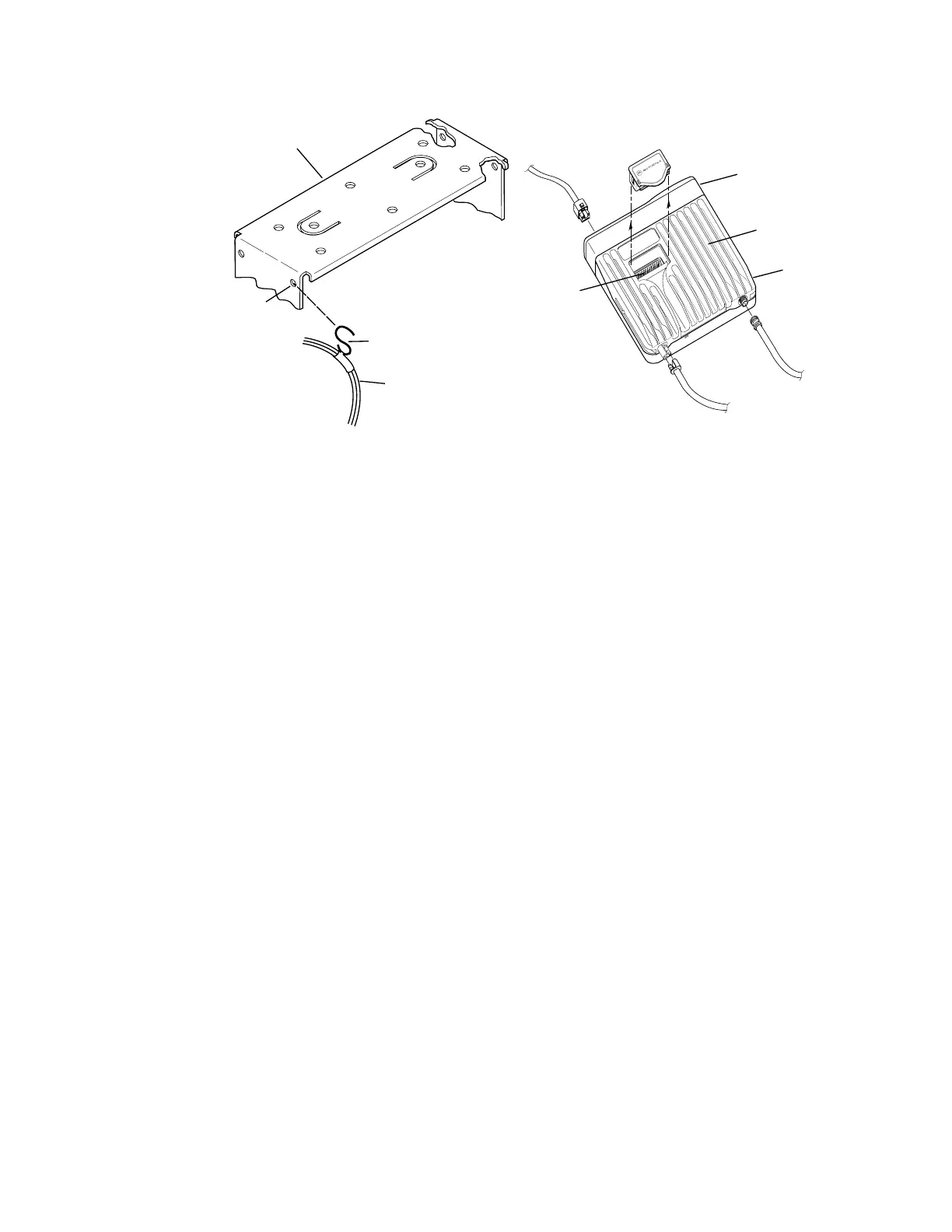

Figure 2 Disconnecting Accessory
Plug and External Connections
from Radio
MAEPF-25538-O
Accessory
Connector
Bottom Side
of Radio
Control
Head
Radio
Chassis
Power
Cable
Antenna
Cable
Microphone
Cord
Accessory
Plug
To Next Page
