8
8. If radio body is not being relocated, skip to step 10. Otherwise,
continue with step 9.
9. Extend all accessory wires so that accessory plug will reach new
location of radio body (see step 4).
10.Snap wings of accessory plug pin housing closed. Make sure that
pins on jumper wire and any other pins are seated correctly in pin
housing.
11.Insert pin housing back into shell in opposite way it was removed.
Be certain that 13-location side of pin housing is facing flat side of
shell. Also be sure that pin housing snaps securely into shell and is
not cocked in shell.
12.Install top cover back onto accessory connector by snapping it
over the tabs and pressing down.
13.Reroute accessory wires and accessory plug to new location of
radio body.
Modifying External
Loudspeaker Wire
1. Clip off the accessory plug pin from each of the two conductors
of the external loudspeaker wire.
NOTE:
The two external loudspeaker
connectors included with the retrofit
kit are identical.
2. Refer to Figure 8 and open the hinged door of one of the external
loudspeaker connectors included in the retrofit kit.

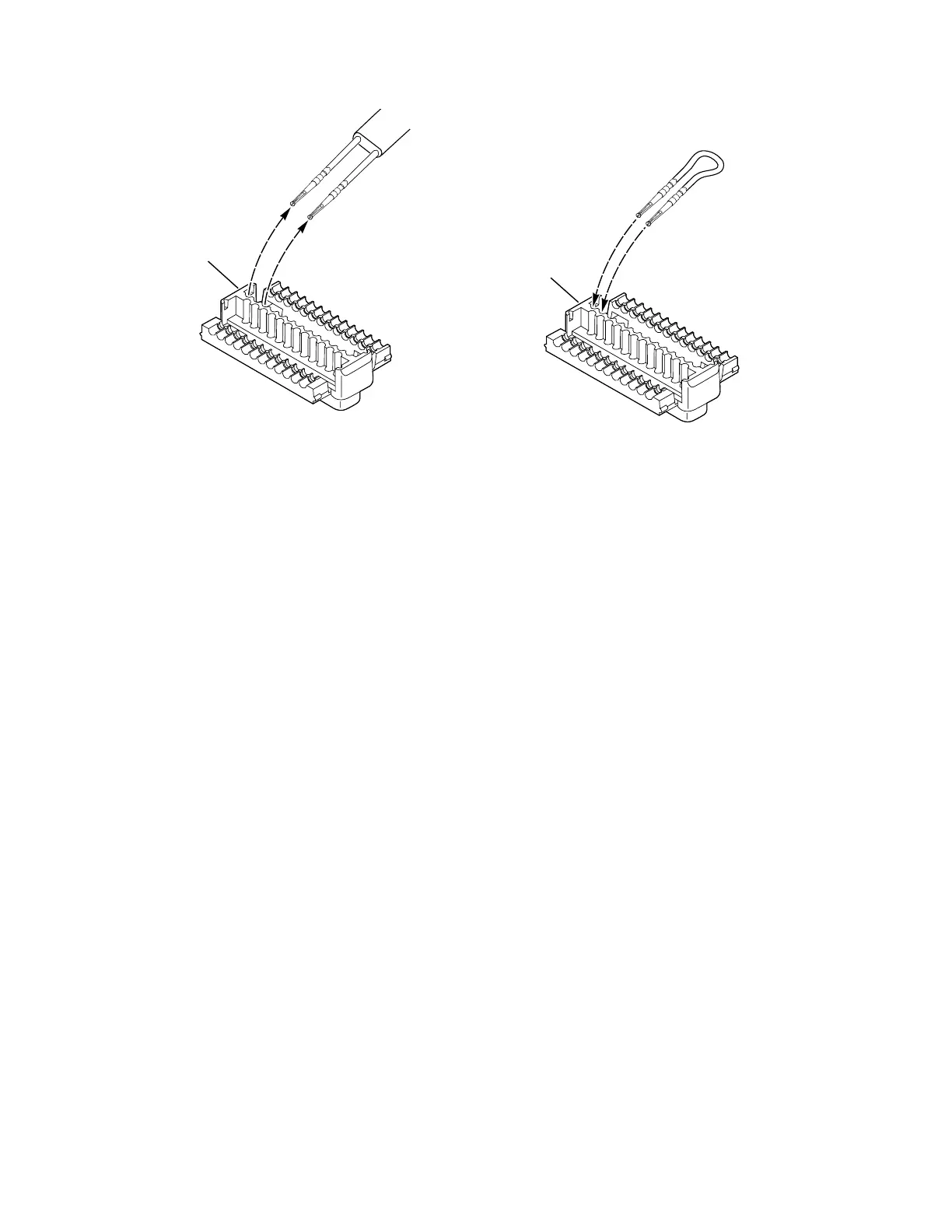

Figure 6 Removing External Loudspeaker
Wires from Connector Pin Housing
Insert Jumper
Between Locations
1 and 2
Pin
Housing
MAEPF-25543-O
Remove
External Speaker
Wires from Locations
1 and 3
Pin
Housing
MAEPF-25542-O
Figure 7 Inserting Jumper into Pin Housing
