5.4.3 Opening the cover plate
The individual connection cables in the device are connected as shown in
the diagram, which is printed on the inside of the cover plate.
► Open the cover plate.

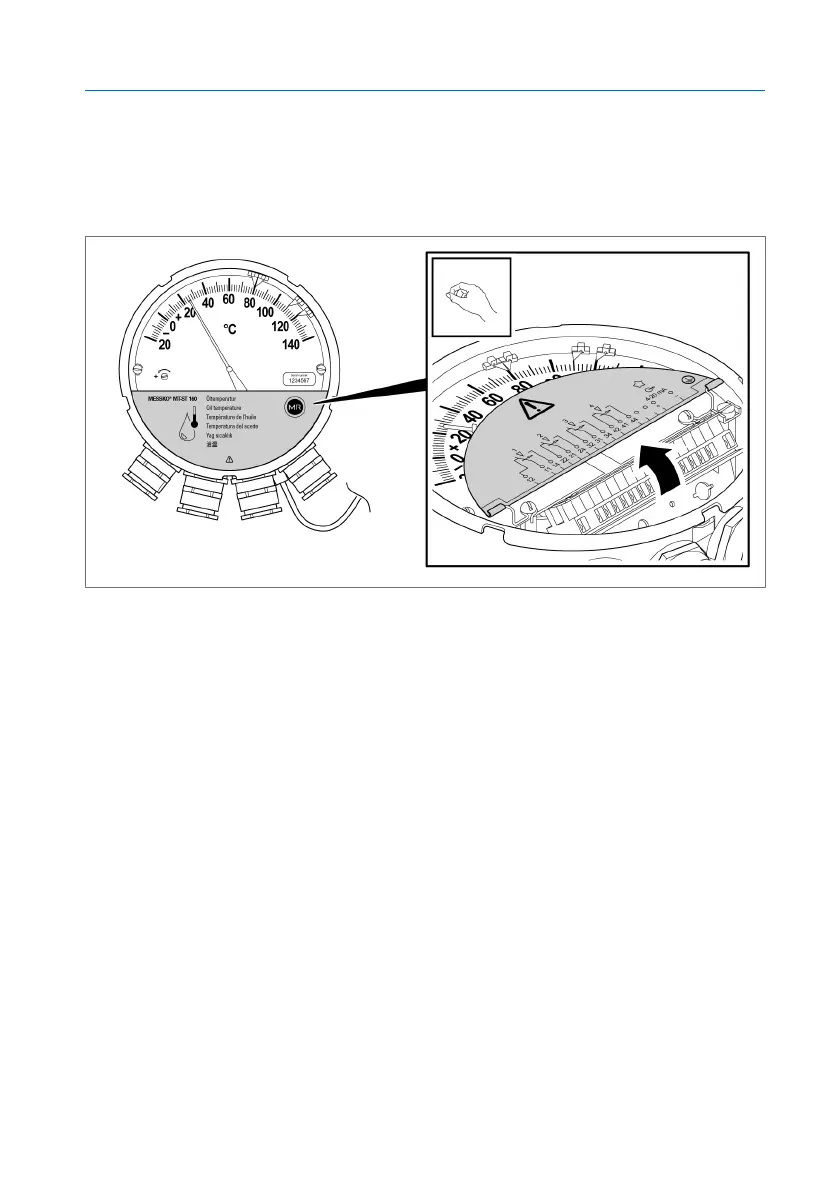

Figure23: Opening the cover plate
5.4.4 Preparing the cables
To prepare the cables correctly, proceed as follows:
1. Note the cable recommendation.
2. Route the connection cable without tension and attach it so that neither
the device nor the cable gland is subjected to mechanical stress.
3. Remove approx. 160mm (6.3") of the jacket from the cable of the respec-
tive connection lines, strip approx. 6mm (0.24") of the insulation from the
wires and seal with ferrules.
