Chapter 2
HARDWARE INSTALLATION
Central Processing Unit: CPU
The mainboard operates with Intel
®
Celeron
TM
/Pentium
®
III (FC-PGA)
processor. The mainboard uses a CPU socket called Socket 370 for easy
CPU installation. The CPU should always have a Heat Sink and a cooling
fan attached to prevent overheating.

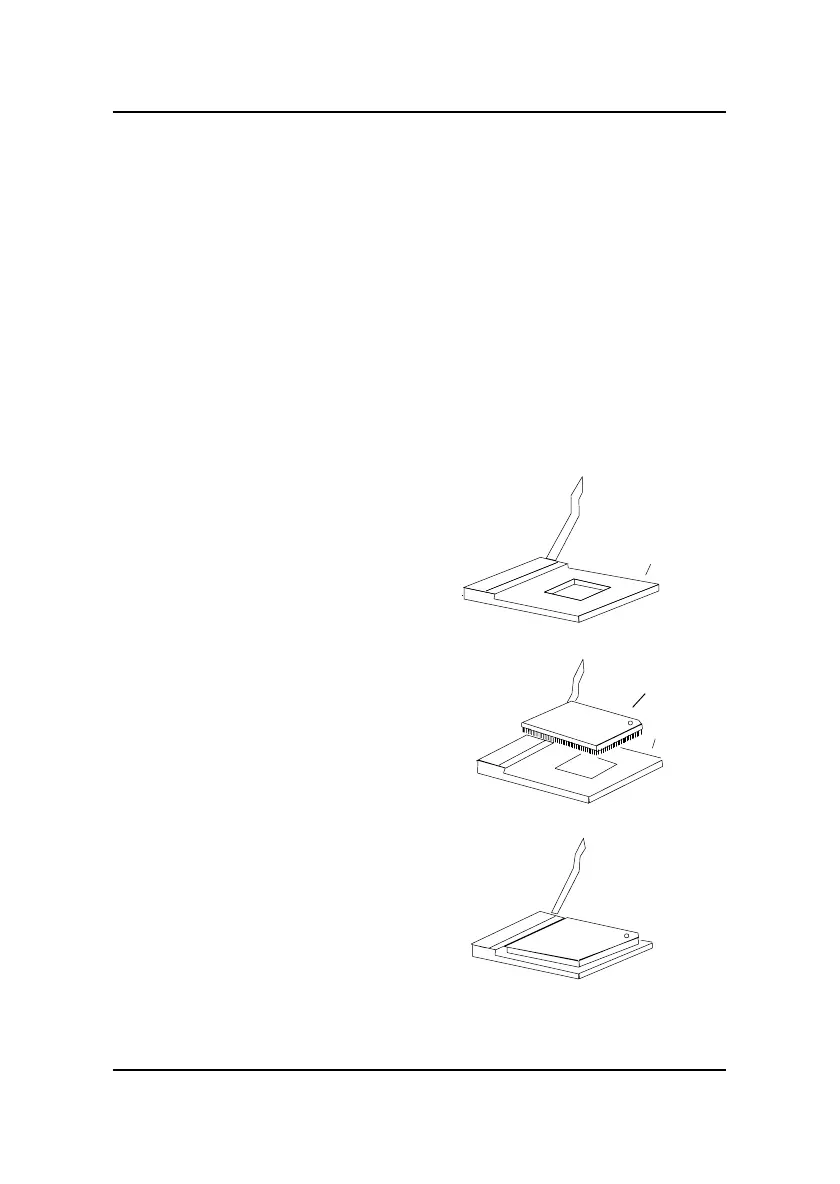

3. Press the lever down to
complete the installation.
2. Locate Pin 1 in the socket
and look for the white dot or
cut edge in the CPU. Match
Pin 1 with the white dot/cut
edge. Then, insert the CPU.
It should insert easily.
Open Lever
Pin 1
Sliding
Plate
White dot/
Cut edge
Close
Lever
1. Pull the lever sideways away
from the socket. Then, raise
the lever up to a 90-degree
angle.
Pin 1
••
••
• CPU Installation Procedures
