2-5
Memory InstallationMemory Installation
Memory InstallationMemory Installation
Memory Installation
••
••

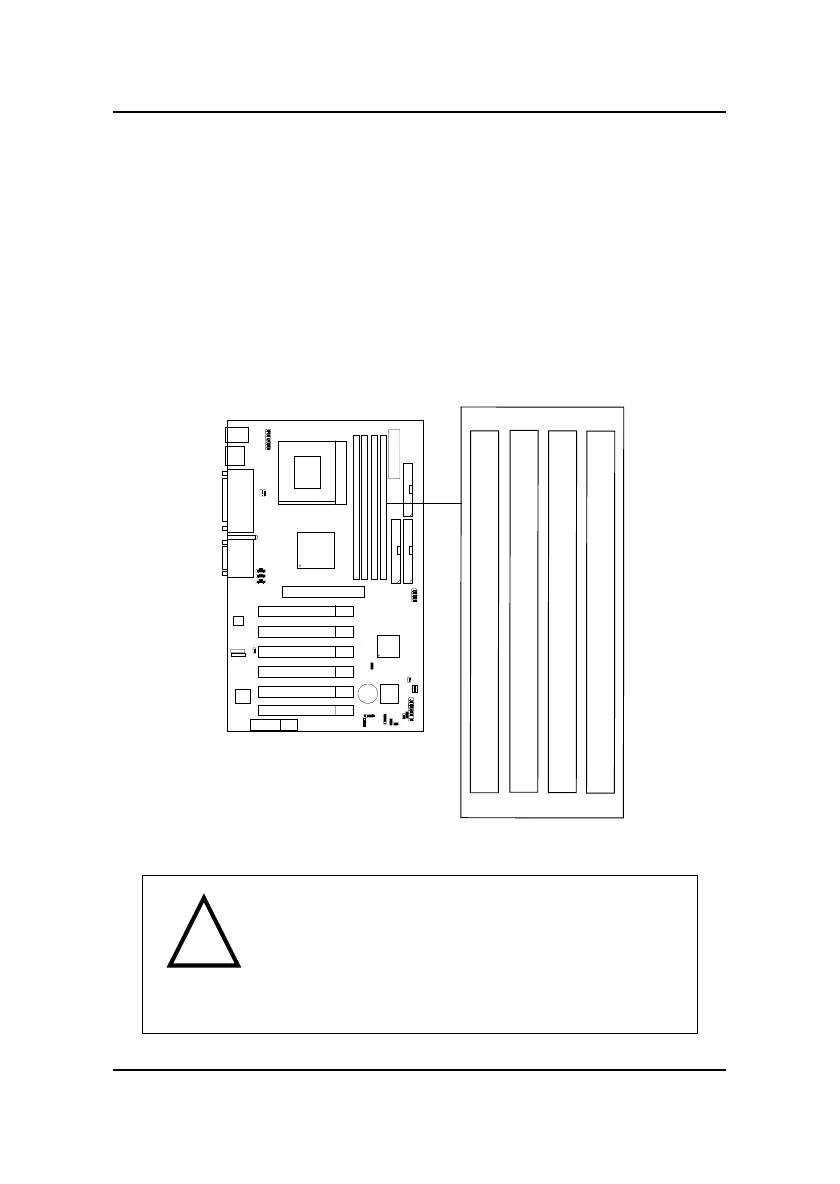

• Memory Bank Configuration
The mainboard supports a maximum memory size of 2GB (256-bit
technology) SDRAM: It provides four 168-pin unbuffered DIMMs (Double
In-Line Memory Module) sockets. It supports 8 MB to 512 Mbytes DIMM
memory module.
DIMM1(Bank0+ Bank1)
DIMM2(Bank2+ Bank3)
DIMM3(Bank4+ Bank5)
DIMM4(Bank6+ Bank7)
There are three kinds of DIMM specification supported
by this mainboard: PC133, PC100 and PC66. If you
use 66MHz CPU Bus Frequency, these four DIMM
Specs. is supported. If you use 100 MHz CPU Bus
Frequency, only PC100 DIMM Specs. is supported.If
you use 133 MHz CPU Bus Frequency, only PC133
DIMM Specs. is supported.
