20

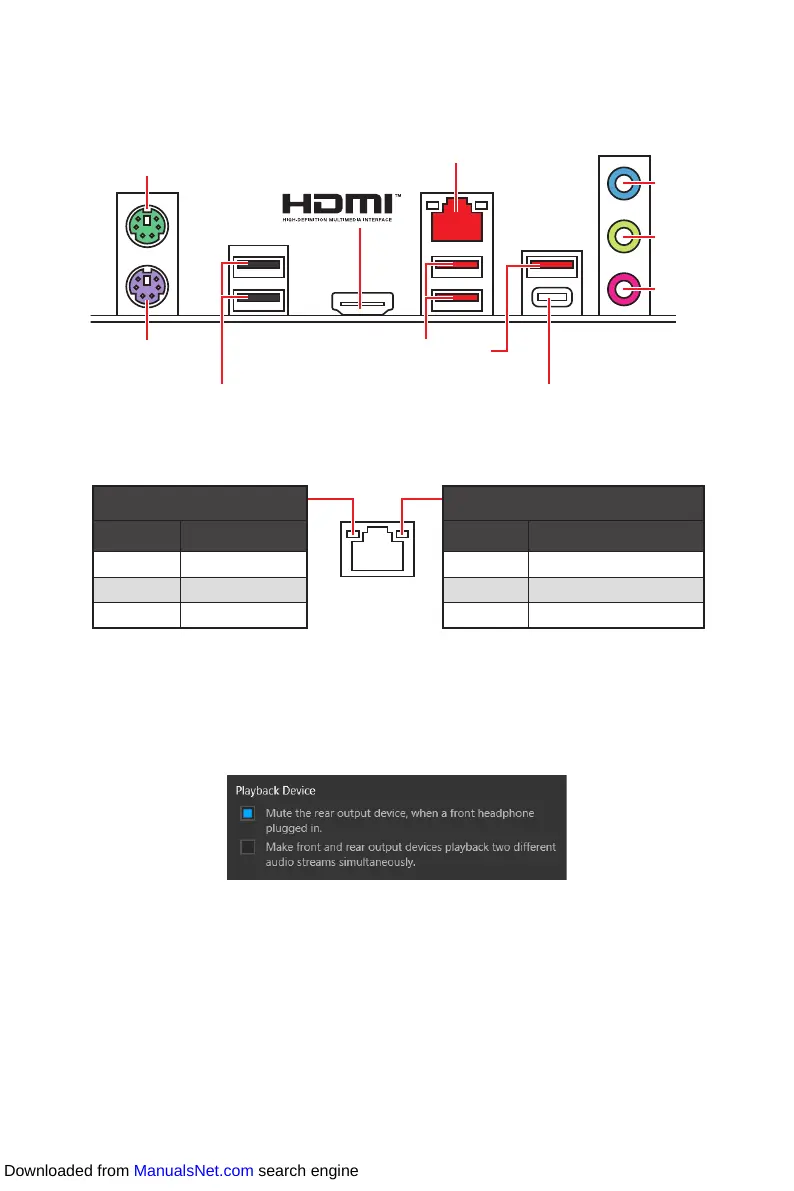

Rear I/O Panel
Rear I/O Panel
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Description
Off 10 Mbps connection
Green 100 Mbps connection
Orange 1 Gbps connection
LAN Port LED Status Table
PS/2 Mouse
PS/2 Keyboard
LAN
Mic-In
USB 3.1 Gen 1 Type-A
USB 3.1 Gen 1 Type-C
Audio 7.1-channel Configuration
To configure 7.1-channel audio, you have to connect front audio I/O module to JAUD1
connector and follow the below steps.
1.
Click on the Realtek Audio Console > Advanced Settings to open the dialog below.
2.
Select Mute the rear output device, when a front headphone plugged in.
3.
Plug your speakers to audio jacks on rear and front I/O panel. When you plug into
a device at an audio jack, a dialogue window will pop up asking you which device is
current connected.
USB 2.0
Line-In
Line-Out
