MSI 7C67-001R User Manual

35
Overview of Components

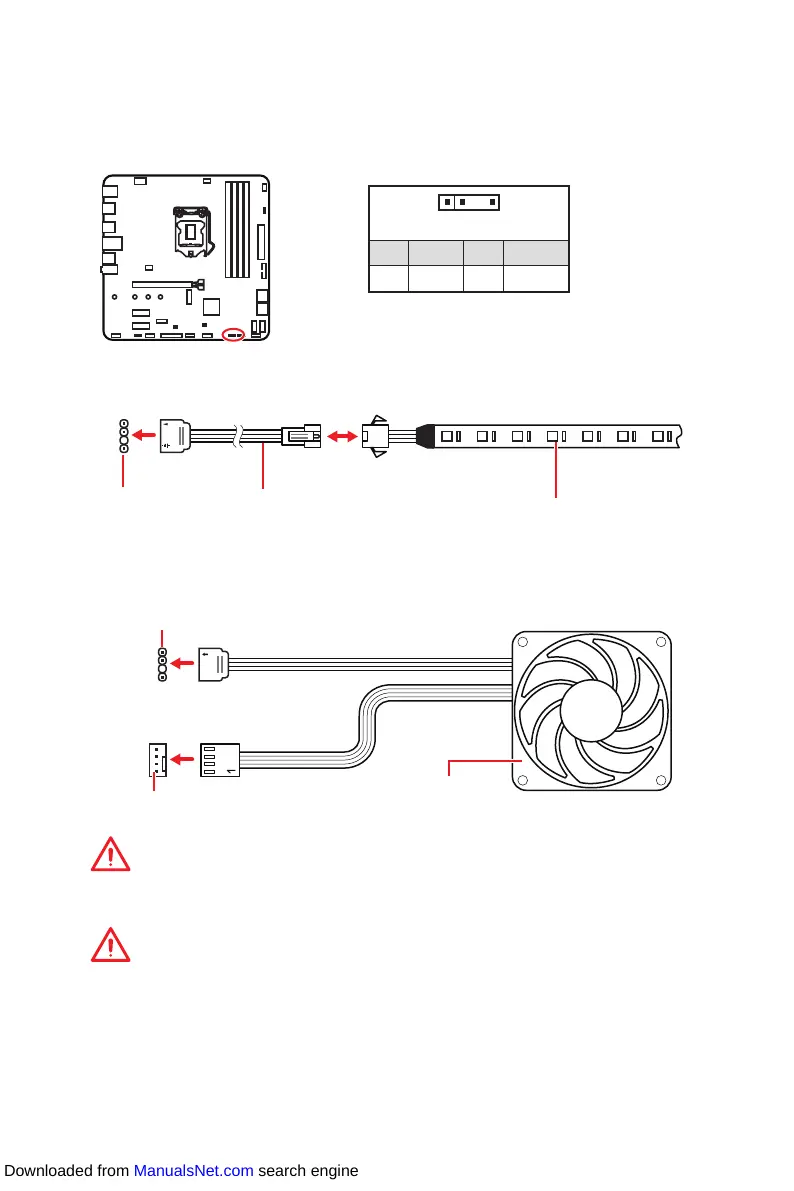

JRAINBOW1: Addressable RGB LED connectors
The JRAINBOW connector allows you to connect the WS2812B Individually Addressable
RGB LED strips 5V.
1
1 +5V 2 Data
3 No Pin 4 Ground
1
D
+5V
JRAINBOW
connector
Rainbow RGB LED
extension cable
(optional)
WS2812B Individually
Addressable RGB LED strips 5V
Addressable RGB LED Strip Connection
1
1
CAUTION
Do not connect the wrong type of LED strips. The JRGB connector and the JRAINBOW
connector provide different voltages, and connecting the 5V LED strip to the JRGB
connector will result in damage to the LED strip.
Important
y The JRAINBOW connector supports up to 75 LEDs WS2812B Individually Addressable
RGB LED strips (5V/Data/Ground) with the maximum power rating of 3A (5V). In the
case of 20% brightness, the connector supports up to 200 LEDs.
y Always turn off the power supply and unplug the power cord from the power outlet
before installing or removing the LED strip.
y Please use MSI’s software to control the extended LED strip.
JRAINBOW connector
System Fan connector
Addressable RGB LED Fan Connection
Addressable RGB LED Fan
