5

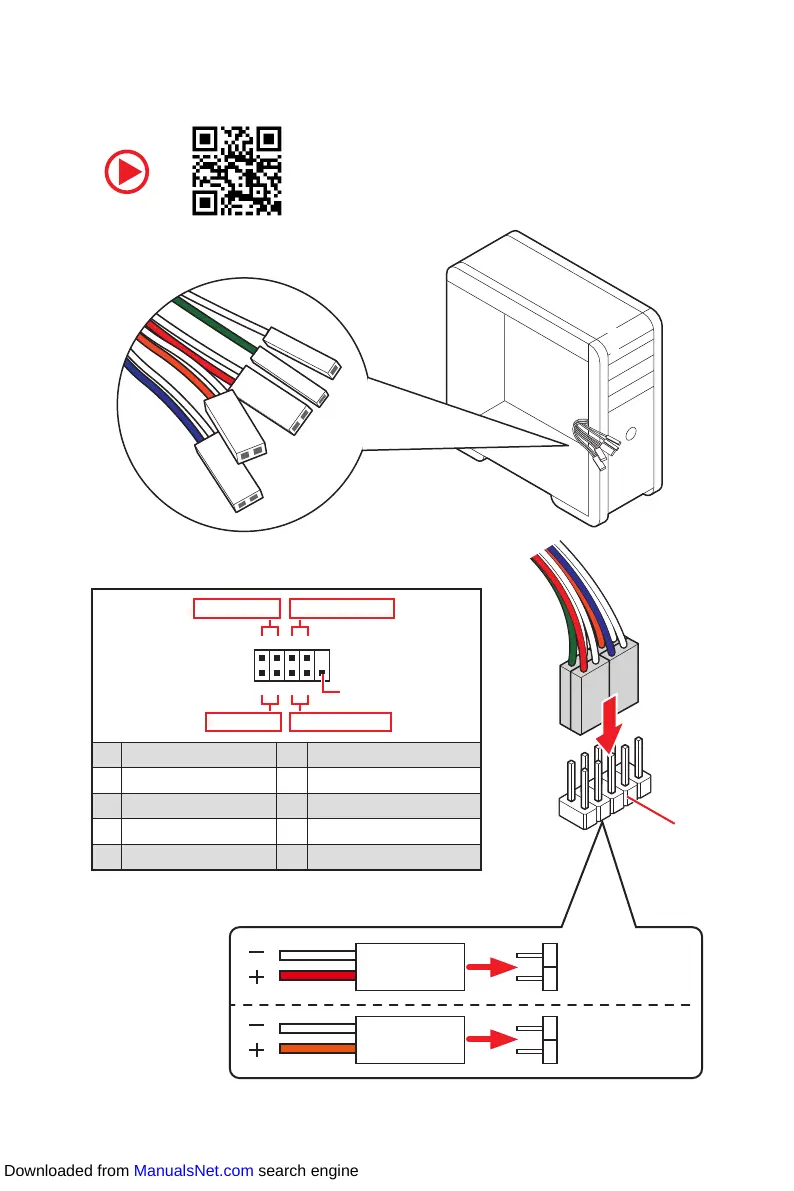

Quick Start
HDD LED
RESET SW
Conne
ctin
g the F
ron
t Panel Header
http://youtu.be/DPELIdVNZUI
JFP1
HDD LED
HDD LED -
HDD LED +
POWER LED -
POWER LED +
POWER LED
1
2
10
9
+
+
+
-
-
-
-
+
Power LED
HDD LED
Reset Switch
Reserved
Power Switch
JFP1
1
HDD LED +
2
Power LED +
3
HDD LED -
4
Power LED -
5
Reset Switch
6
Power Switch
7
Reset Switch
8
Power Switch
9
Reserved
10
No Pin
RESET SW
POWER SW
POWER LED+
POWER LED-
HDD LED
Downloaded
from
ManualsNet.com
search
engine
4
6
Table of Contents
Quick Start
1
Preparing Tools and Components
1
Safety Information
2
Installing a Processor
3
Installing DDR4 Memory
4
Connecting the Front Panel Header
5
Installing the Motherboard
6
Connecting the Power Connectors
7
Installing SATA Drives
8
Installing a Graphics Card
9
Connecting Peripheral Devices
10
Power on
11
Table of Contents
12
Specifications
14
Package Contents
18
Block Diagram
19
Rear I/O Panel
20
LAN Port LED Status Table
20
Audio 7.1-Channel Configuration
20
Realtek Audio Console
21
Overview of Components
22
CPU Socket
24
DIMM Slots
25
PCI_E1~3: Pcie Expansion Slots
26
M2_1: M.2 Slot (Key M)
26
SATA1~6: SATA 6Gb/S Connectors
27
JFP1, JFP2: Front Panel Connectors
27
CPU_PWR1, ATX_PWR1: Power Connectors
28
CPU_FAN1, SYS_FAN1~2: Fan Connectors
29
JUSB3: USB 3.1 Gen1 Connector
30
JUSB1~2: USB 2.0 Connectors
30
JAUD1: Front Audio Connector
31
JCOM1: Serial Port Connector
31
JLPT1: Parallel Port Connector
31
JCI1: Chassis Intrusion Connector
32
JBAT1: Clear CMOS (Reset BIOS) Jumper
33
EZ Debug LED
33
JRGB1: RGB LED Connector
34
JRAINBOW1: Addressable RGB LED Connectors
35
Installing OS, Drivers & Utilities
36
Installing Windows 10
36
Installing Drivers
36
Installing Utilities
36
BIOS Setup
37
Entering BIOS Setup
37
Resetting BIOS
38
Updating BIOS
38
EZ Mode
39
Advanced Mode
41
Settings
42
Advanced
42
Boot
48
Security
49
Save & Exit
50
M-Flash
57
Oc Profile
58
Hardware Monitor
59
Intel ® Optane™ Memory Configuration
60
System Requirements
60
Installing the Intel ® Optane™ Memory
60
Removing the Intel ® Optane™ Memory
62
Troubleshooting
63
Regulatory Notices
64
