Chapter 1
1-7
Getting Started

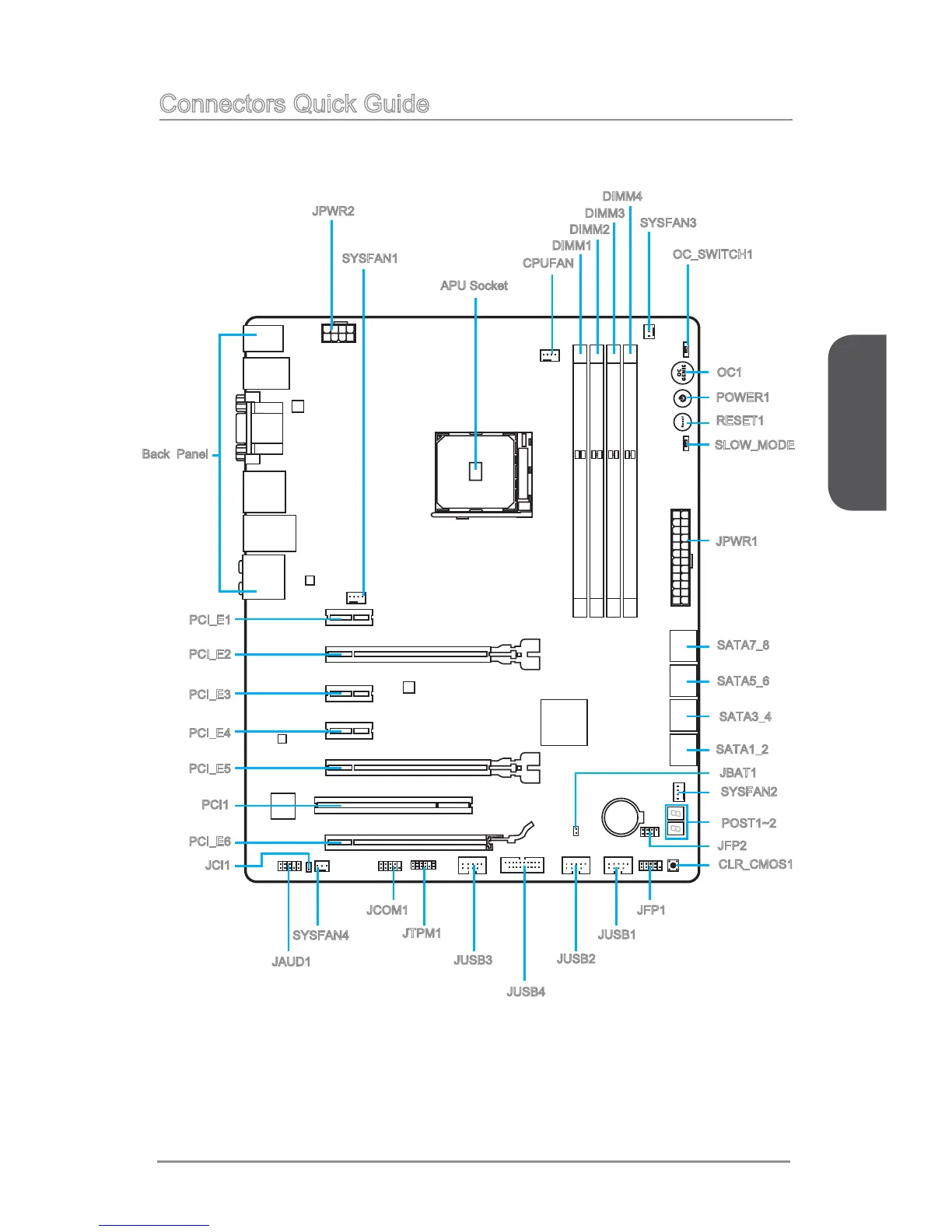

Connectors Quick Guide
Back Panel
APU Socket
CPUFAN
DIMM2
JUSB1
JPWR1
SATA1_2
JAUD1
PCI_E1
JUSB3
JTPM1
DIMM1
JPWR2
JCI1
SYSFAN1
JBAT1
SATA5_6
JUSB2
JFP1
PCI_E2
PCI_E3
PCI_E4
PCI_E5
PCI1
JFP2
SYSFAN2
SYSFAN3
CLR_CMOS1
JUSB4
POST1~2
JCOM1
PCI_E6
SYSFAN4
SATA3_4
SATA7_8
SLOW_MODE
RESET1
POWER1
OC1
OC_SWITCH1
DIMM3
DIMM4
20
22
