Overview of Components

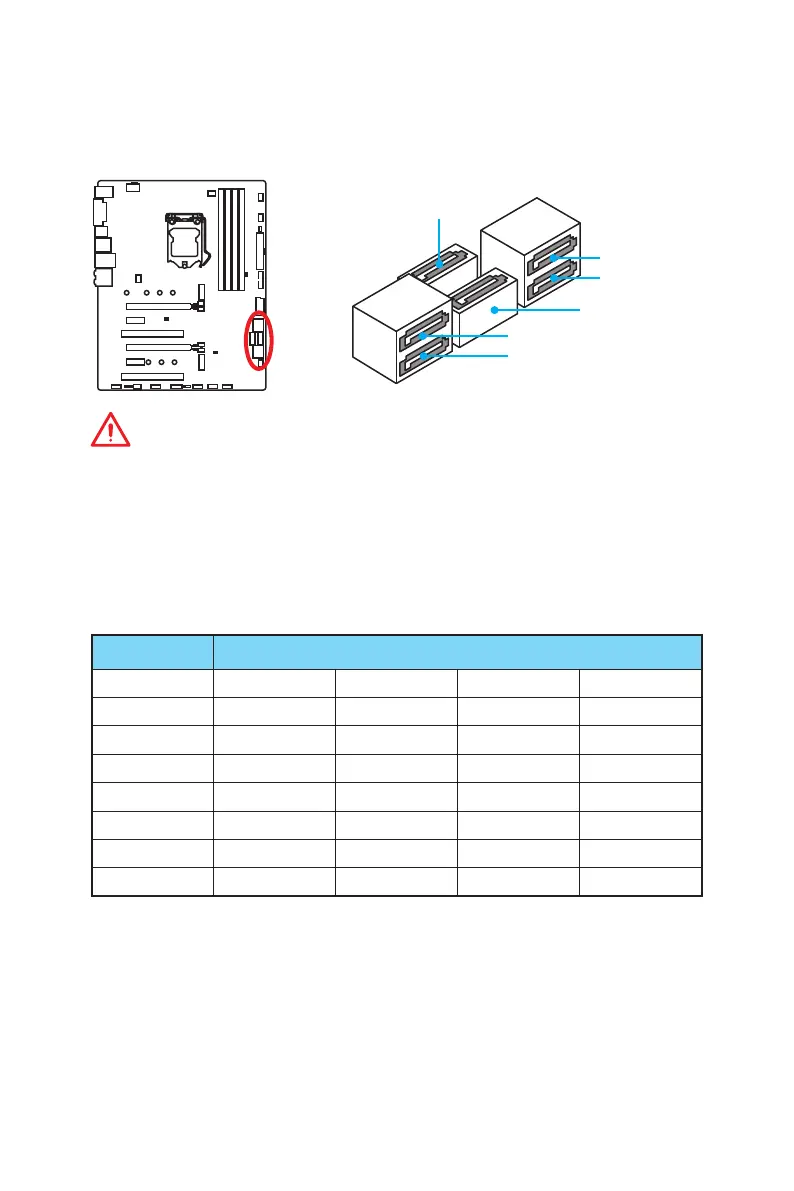

SATA1~6: SATA 6Gb/s Connectors
These connectors are SATA 6Gb/s interface ports. Each connector can connect to one
SATA device.
SATA1
SATA5
SATA2
SATA6
SATA3
SATA4
Important
y
Please do not fold the SATA cable at a 90-degree angle. Data loss may result during
transmission otherwise.
y
SATA cables have identical plugs on either sides of the cable. However, it is
recommended that the flat connector be connected to the motherboard for space
saving purposes.
M.2 & SATA combination table
Slot Available SATA connectors
M2_1 PCIe SATA PCIe SATA
M2_2 PCIe PCIe SATA SATA
SATA1 ✓ ─ ✓ ─
SATA2 ✓ ✓ ✓ ✓
SATA3 ✓ ✓ ✓ ✓
SATA4 ✓ ✓ ✓ ✓
SATA5 ✓ ✓ ✓ ✓
SATA6 ✓ ✓ ─ ─
(SATA: M.2 SATA SSD, PCIe: M.2 PCIe SSD, ✓: available, ─: unavailable)
