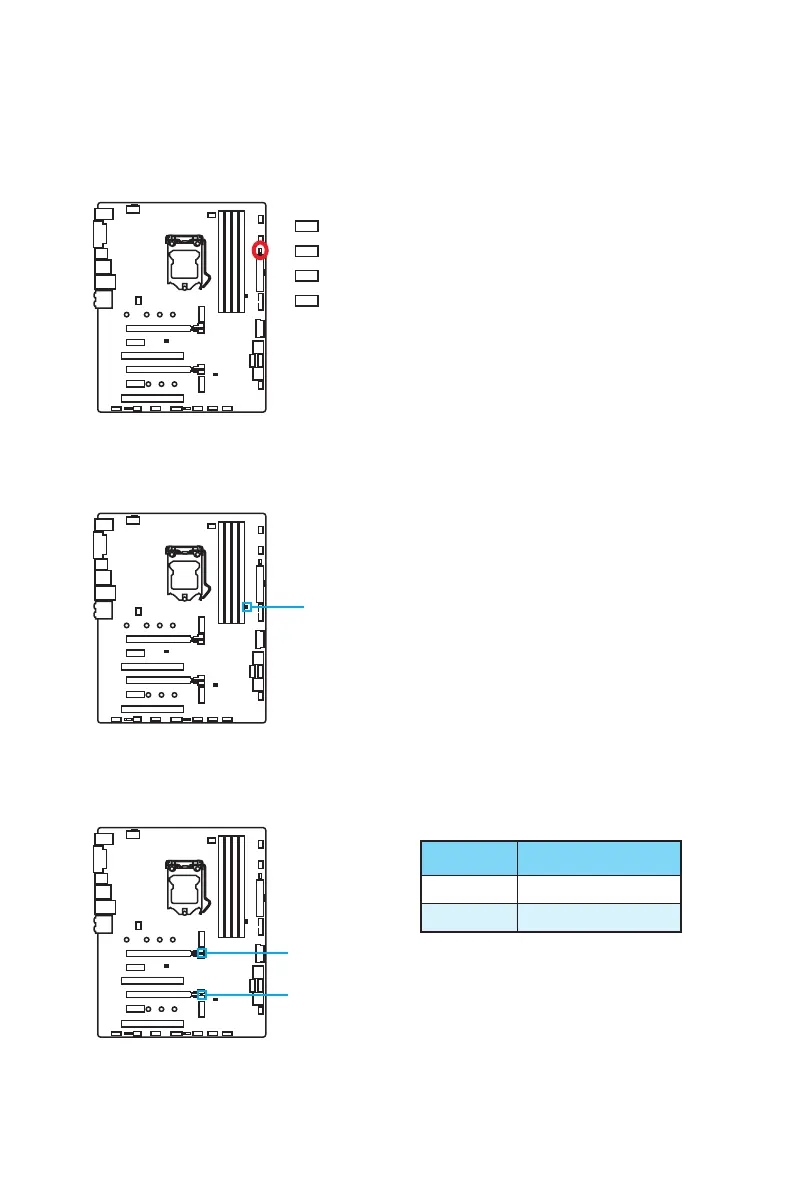

Onboard LEDs
Onboard LEDs
XMP LED
PCI_E1 LED
PCI_E3 LED
EZ Debug LED
These LEDs indicate the debug status of the motherboard.
XMP LED
This LED indicates the XMP (Extreme Memory Profile) mode is enabled.
PCIe x16 slot LEDs
These LED indicate the PCIe x16 slots status.
CPU - indicates CPU is not detected or fail.
DRAM - indicates DRAM is not detected or fail.
VGA - indicates GPU is not detected or fail.
BOOT - indicates the booting device is not detected
or fail.
LED Color PCIe slot status
Red x16 mode
White x8, x4, x1 mode
