Overview of Components
Important
y
This connector supports 5050 single color LED strips with the maximum power
rating of 3A (12V). Please keeping the LED strip shorter than 2 meters to prevent
dimming.
y
Always turn off the power supply and unplug the power cord from the power outlet
before installing or removing the LED strip.
y
Please use GAMING APP to control the extended LED strip.
Video Demonstration
Watch the video to learn how to install 5050 RGB LED strips to RGB LED
connector.
https://youtu.be/CqNHyADzd2Q

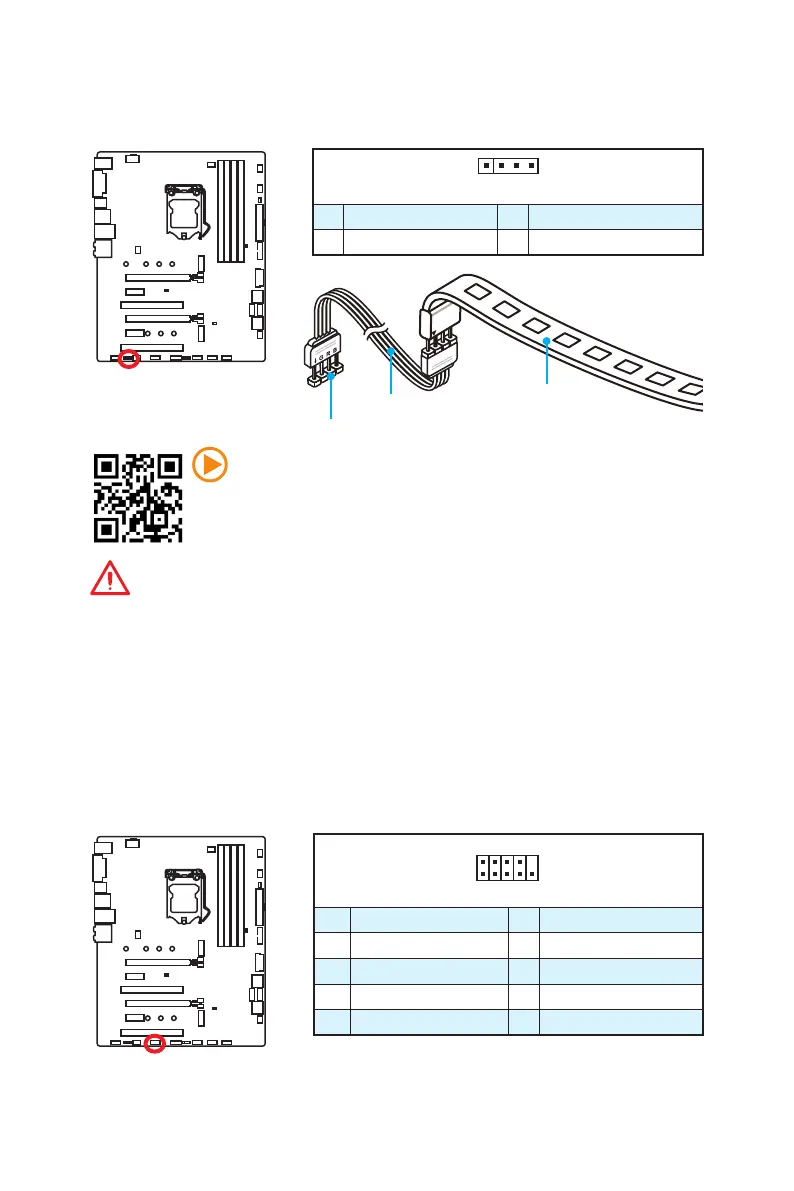

JLED1: RGB LED connector
These connectors allow you to connect the 5050 RGB LED strips.
1
JLED1
Extension cable
5050 LED strip
1
1 +12V 2 G
3 R 4 B
1
2 10
9
1 DCD 2 SIN
3 SOUT 4 DTR
5 Ground 6 DSR
7 RTS 8 CTS
9 RI 10 No Pin
JCOM1: Serial Port Connector
This connector allows you to connect the optional serial port with bracket.
