MSI B250M BAZOOKA User Manual

19

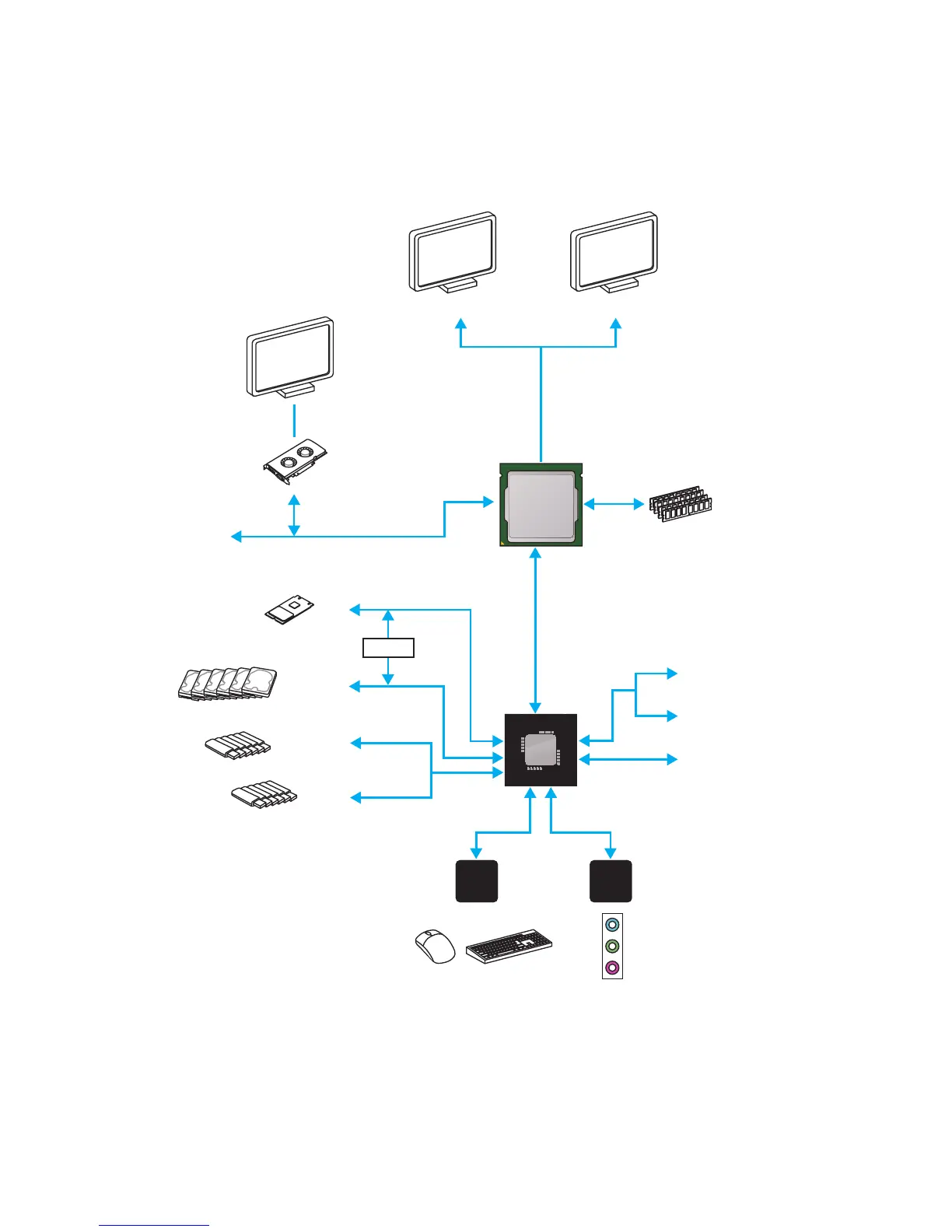

Block Diagram
Block Diagram
LPC Bus
Dual Channel DDR4 Memory
P/S2 Mouse / Keyboard
Audio Jacks
DMI 3.0
B250/ H270
CPU
NV6795
Super I/O
Realtek
ALC887
HDMI DVI-D
PCIe x1 slot
x1
HDMI
PCI Express Bus
PCI slot
PCIe x1 slot
x1
USB 3.1 Gen1
M.2
USB 2.0
PCI Express Bus
Switch
SATA 6Gb/s

MSI B250M BAZOOKA Specifications

General

Form Factor	Micro ATX
Chipset	Intel B250
Socket	LGA 1151
Maximum Memory	64GB
PCIe Slots	1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1
Storage Interface	6 x SATA 6Gb/s
Memory Slots	4
M.2 Slots	1 x M.2
USB Ports	6 x USB 3.1 Gen1 (4 rear, 2 via header), 6 x USB 2.0 (2 rear, 4 via headers)
Audio	Realtek ALC887
LAN	Realtek 8111H
RAID Support	0, 1, 5, 10
