MSI B250M BAZOOKA User Manual

34
Overview of Components

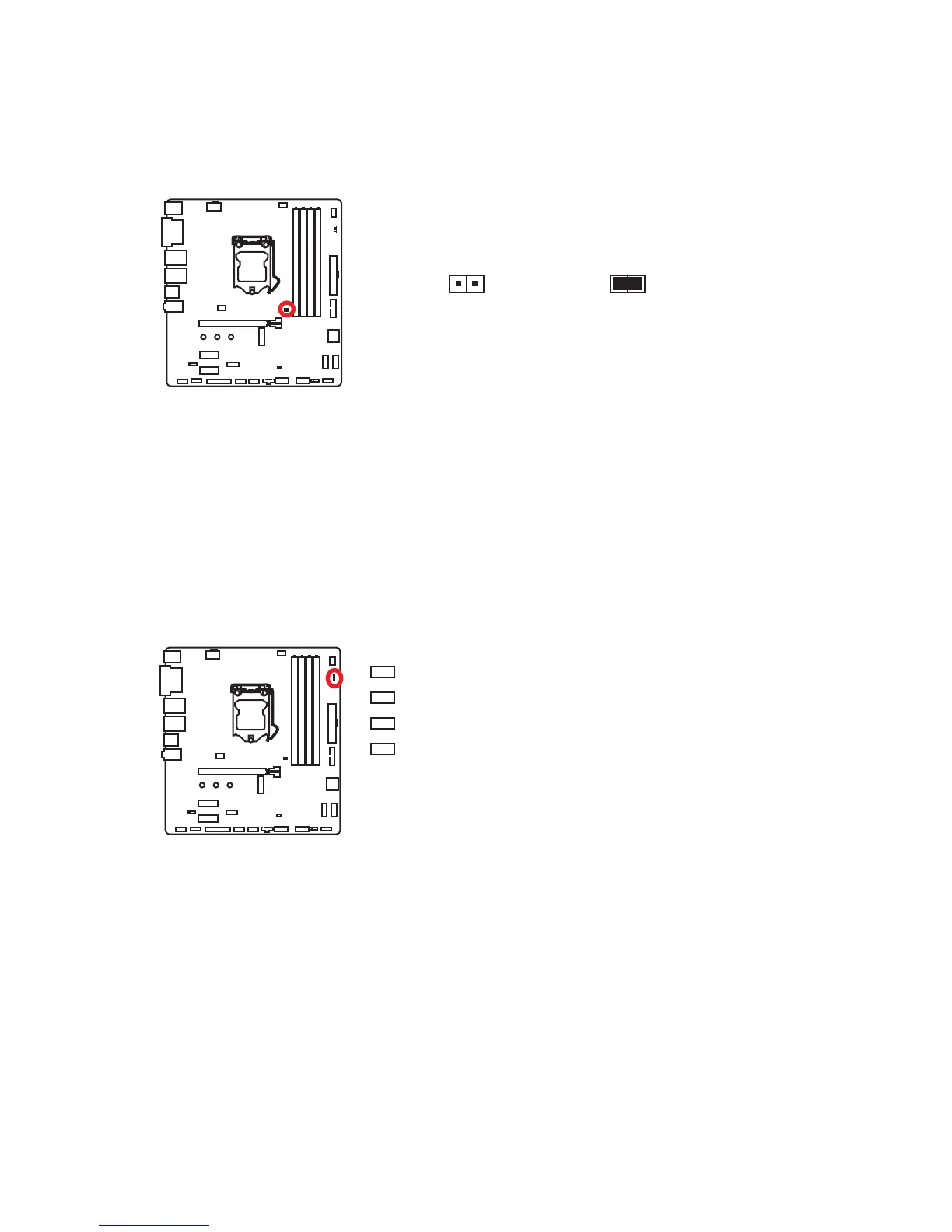

EZ Debug LED
These LEDs indicate the debug status of the motherboard.
CPU - indicates CPU is not detected or fail.
DRAM - indicates DRAM is not detected or fail.
VGA - indicates GPU is not detected or fail.
BOOT - indicates the booting device is not detected
or fail.
JBAT1: Clear CMOS (Reset BIOS) Jumper
There is CMOS memory onboard that is external powered from a battery located on
the motherboard to save system configuration data. If you want to clear the system
configuration, set the jumpers to clear the CMOS memory.
Keep Data
(default)
Clear CMOS/
Reset BIOS
Resetting BIOS to default values
1. Power off the computer and unplug the power cord
2. Use a jumper cap to short JBAT1 for about 5-10 seconds.
3. Remove the jumper cap from JBAT1.
4. Plug the power cord and power on the computer.

MSI B250M BAZOOKA Specifications

General

Form Factor	Micro ATX
Chipset	Intel B250
Socket	LGA 1151
Maximum Memory	64GB
PCIe Slots	1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1
Storage Interface	6 x SATA 6Gb/s
Memory Slots	4
M.2 Slots	1 x M.2
USB Ports	6 x USB 3.1 Gen1 (4 rear, 2 via header), 6 x USB 2.0 (2 rear, 4 via headers)
Audio	Realtek ALC887
LAN	Realtek 8111H
RAID Support	0, 1, 5, 10
