MSI B250M BAZOOKA User Manual

6
Quick Start

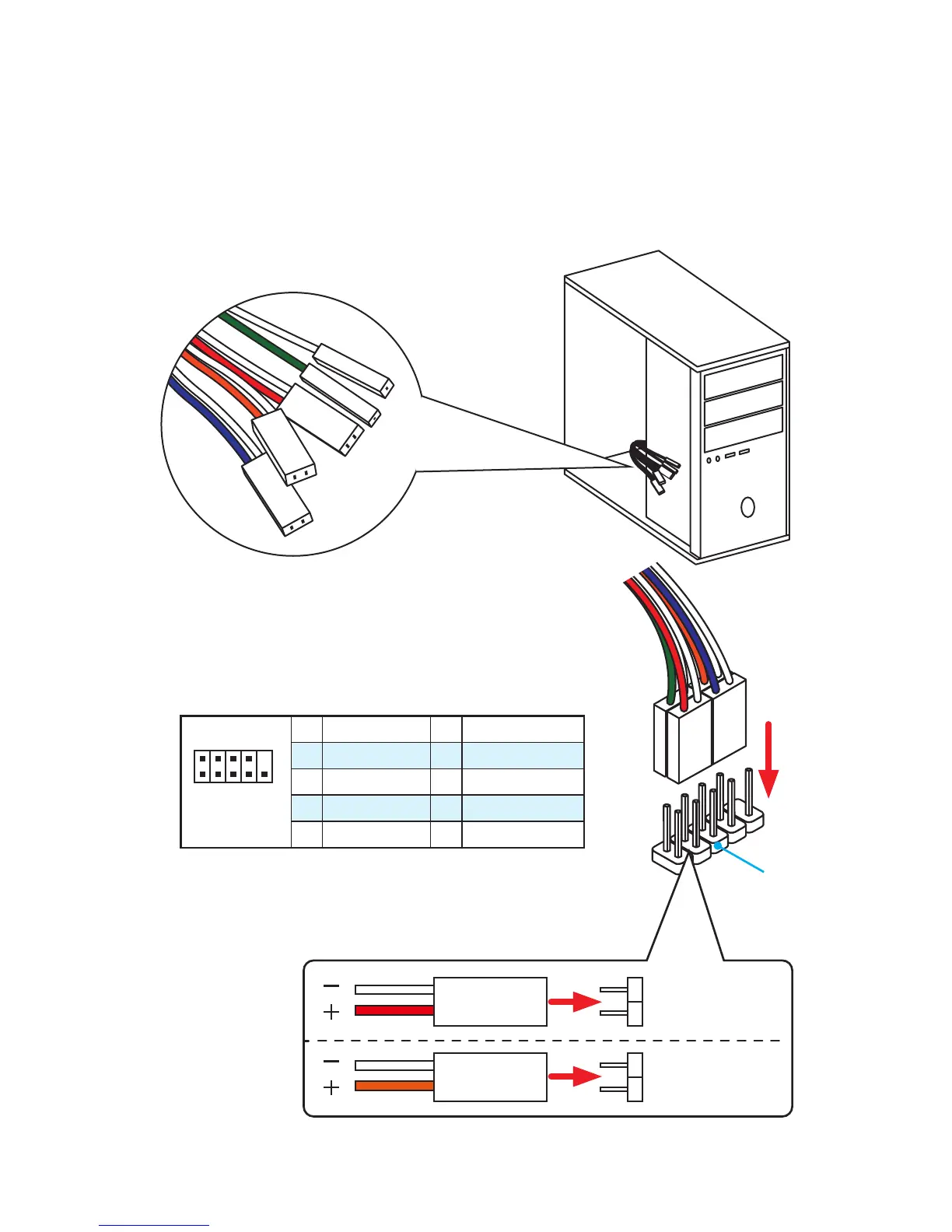

Connecting the Front Panel Header
1
2 10
9
JFP1
1 HDD LED + 2 Power LED +
3 HDD LED - 4 Power LED -
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin
RESET SW
POWER SW
POWER LED+
POWER LED-
HDD LED
HDD LED
RESET SW
JFP1
HDD LED
HDD LED -
HDD LED +
POWER LED -
POWER LED +
POWER LED

MSI B250M BAZOOKA Specifications

General

Form Factor	Micro ATX
Chipset	Intel B250
Socket	LGA 1151
Maximum Memory	64GB
PCIe Slots	1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1
Storage Interface	6 x SATA 6Gb/s
Memory Slots	4
M.2 Slots	1 x M.2
USB Ports	6 x USB 3.1 Gen1 (4 rear, 2 via header), 6 x USB 2.0 (2 rear, 4 via headers)
Audio	Realtek ALC887
LAN	Realtek 8111H
RAID Support	0, 1, 5, 10
