MSI B450 GAMING PLUS User Manual

31

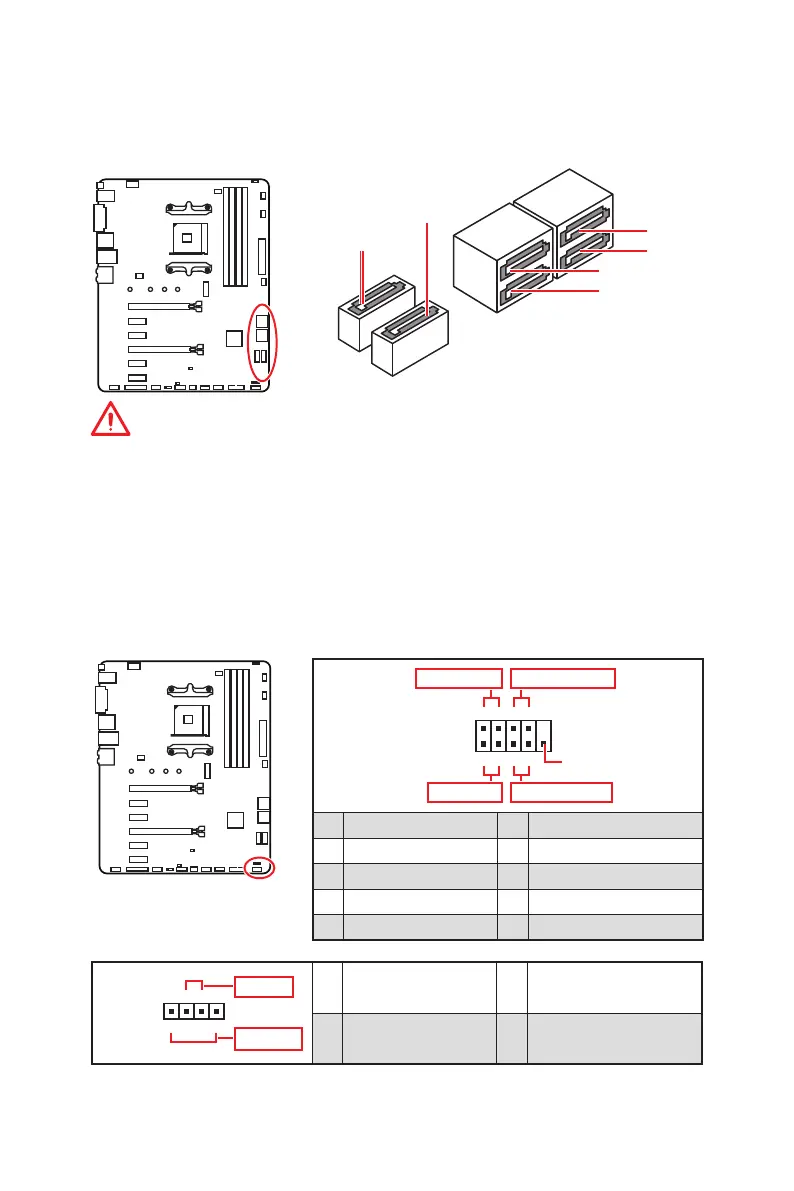

Overview of Components
SATA1~6: SATA 6Gb/s Connectors
These connectors are SATA 6Gb/s interface ports. Each connector can connect to one
SATA device.
SATA5
SATA3
SATA6
SATA4
SATA2
SATA1
Important
y Please do not fold the SATA cable at a 90-degree angle. Data loss may result during
transmission otherwise.
y SATA cables have identical plugs on either sides of the cable. However, it is
recommended that the flat connector be connected to the motherboard for space
saving purposes.
y SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M.2 slot.
JFP1, JFP2: Front Panel Connectors
These connectors connect to the switches and LEDs on the front panel.
1
JFP2
+
+
-
-
Speaker
Buzzer
1 Speaker - 2 Buzzer +
3 Buzzer - 4 Speaker +
1
2 10
9
+
+
+- -- -
+
Power LED
HDD LED Reset Switch
Reserved
Power Switch
JFP1
1 HDD LED + 2 Power LED +
3 HDD LED - 4 Power LED -
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin

MSI B450 GAMING PLUS Specifications

General

Chipset	AMD B450
Form Factor	ATX
Socket	AM4
Memory Slots	4 x DIMM
Max Memory	64GB
Audio	Realtek ALC892 Codec
LAN	Realtek 8111H Gigabit LAN
RAID Support	RAID 0, 1, 10
USB Ports	6 x USB 3.1 Gen1, 6 x USB 2.0
Storage Interface	6 x SATA 6Gb/s
