MSI B450 GAMING PLUS User Manual

57
BIOS Setup
M-FLASH
M-FLASH provides the way to update BIOS with a USB flash drive. Please download
the latest BIOS file that matches your motherboard model from MSI website, save the
BIOS file into your USB flash drive. And then follow the steps below to update BIOS.
1. Insert the USB flash drive that contains the update file into the computer.

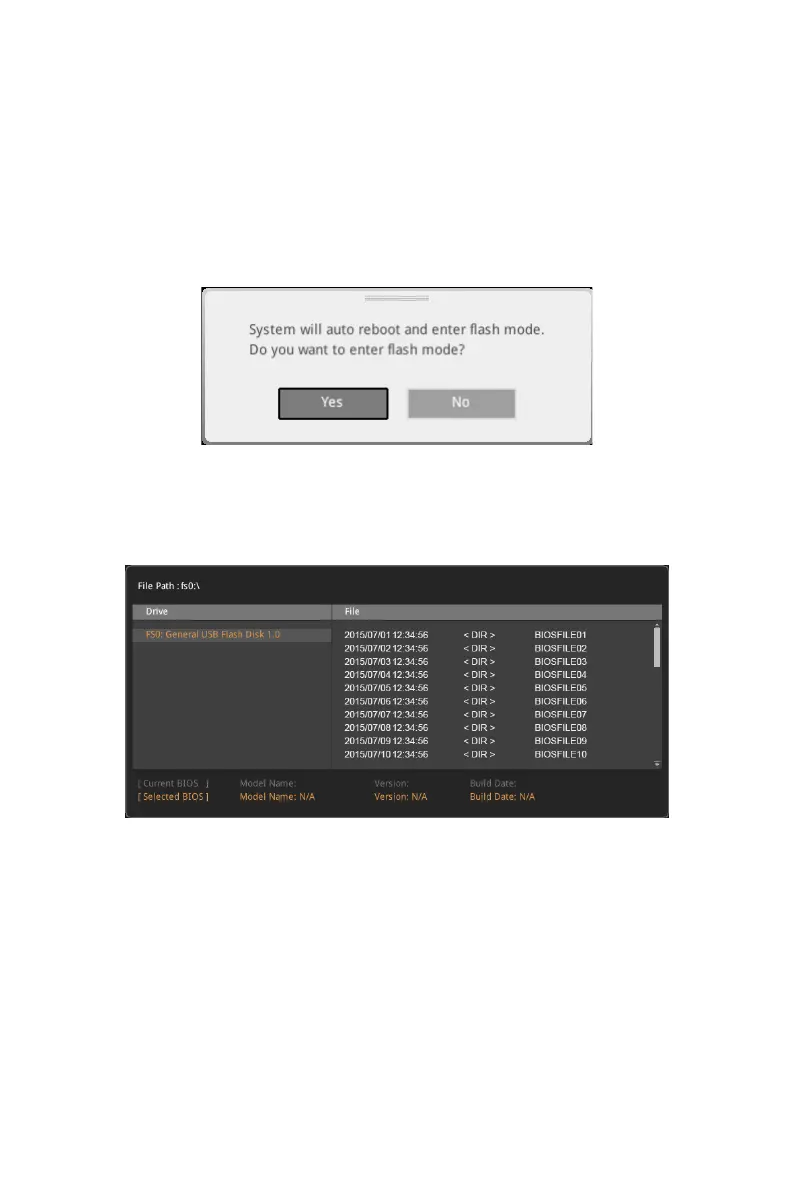

2. Click on M-FLASH tab, a demand message will be prompted. Click on Yes to
reboot and enter the flash mode.
3. The system will enter the flash mode and a file selection menu will appear after
rebooting.
4. Select a BIOS file to perform the BIOS update process.
5. After the flashing process is 100% completed, the system will reboot
automatically.

MSI B450 GAMING PLUS Specifications

General

Chipset	AMD B450
Form Factor	ATX
Socket	AM4
Memory Slots	4 x DIMM
Max Memory	64GB
Audio	Realtek ALC892 Codec
LAN	Realtek 8111H Gigabit LAN
RAID Support	RAID 0, 1, 10
USB Ports	6 x USB 3.1 Gen1, 6 x USB 2.0
Storage Interface	6 x SATA 6Gb/s
