MSI B450 GAMING PLUS User Manual

5
Quick Start

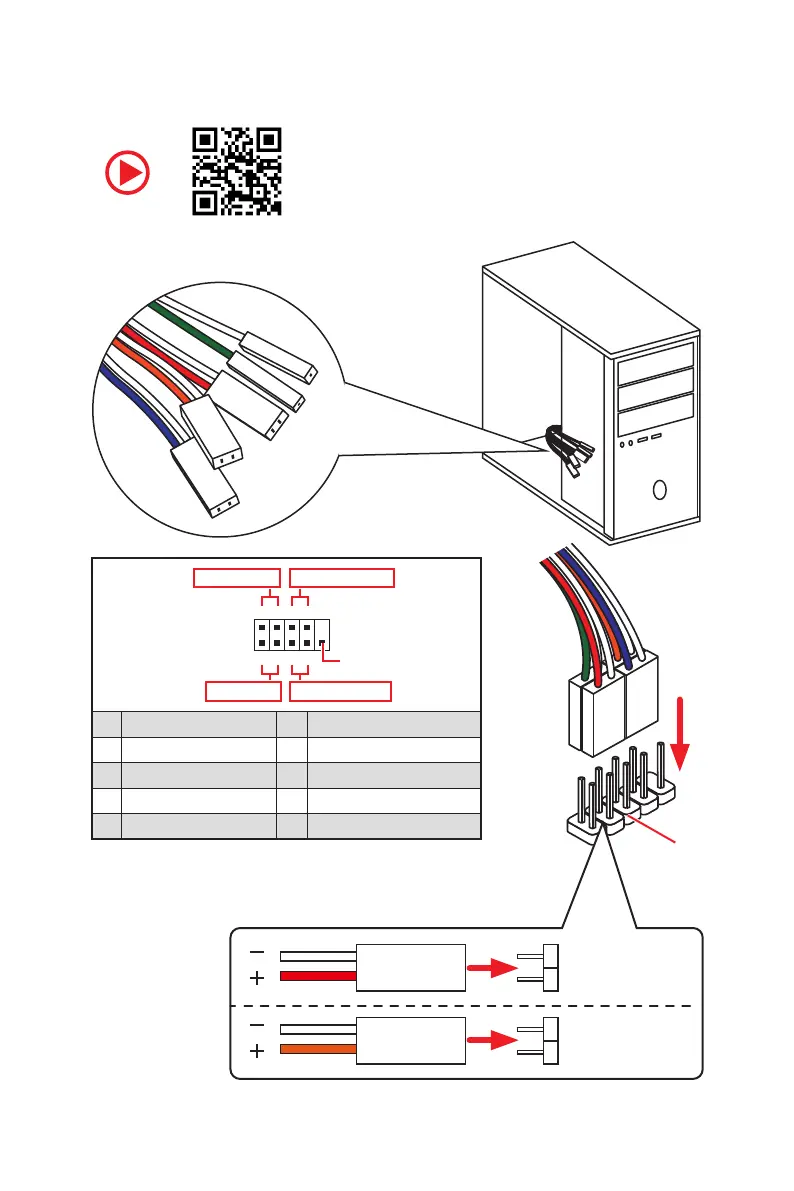

Connecting the Front Panel Header
http://youtu.be/DPELIdVNZUI
RESET SW
POWER SW
POWER LED+
POWER LED-
HDD LED
HDD LED
RESET SW
JFP1
HDD LED
HDD LED -
HDD LED +
POWER LED -
POWER LED +
POWER LED
1
2 10
9
+
+
+- -- -
+
Power LED
HDD LED Reset Switch
Reserved
Power Switch
JFP1
1 HDD LED + 2 Power LED +
3 HDD LED - 4 Power LED -
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin

MSI B450 GAMING PLUS Specifications

General

Chipset	AMD B450
Form Factor	ATX
Socket	AM4
Memory Slots	4 x DIMM
Max Memory	64GB
Audio	Realtek ALC892 Codec
LAN	Realtek 8111H Gigabit LAN
RAID Support	RAID 0, 1, 10
USB Ports	6 x USB 3.1 Gen1, 6 x USB 2.0
Storage Interface	6 x SATA 6Gb/s
