MSI B450M PRO-VDH V2 User Manual

11
Overview of Components Overview of Components

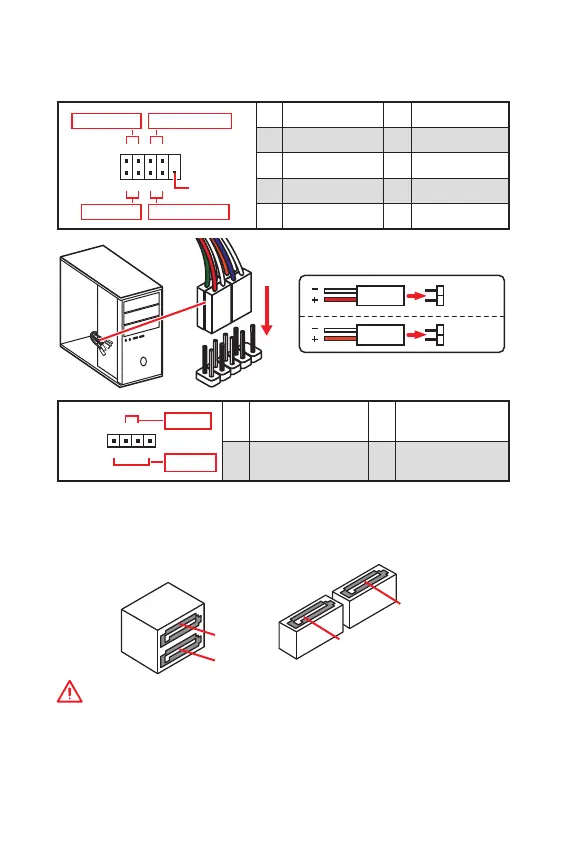

SATA1~4: SATA 6Gb/s Connectors
These connectors are SATA 6Gb/s interface ports. Each connector can connect to one
SATA device.
SATA3
SATA4
SATA2
SATA1
Important
y Please do not fold the SATA cable at a 90-degree angle. Data loss may result during
transmission otherwise.
y SATA cables have identical plugs on either sides of the cable. However, it is
recommended that the flat connector be connected to the motherboard for space
saving purposes.
JFP1, JFP2: Front Panel Connectors
These connectors connect to the switches and LEDs on the front panel.
1
2 10
9
+
+
+- -- -
+
Power LED
HDD LED Reset Switch
Reserved
Power Switch
1 HDD LED + 2 Power LED +
3 HDD LED - 4 Power LED -
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin
JFP2
1
+
+
-
-
Speaker
Buzzer
1 Speaker - 2 Buzzer +
3 Buzzer - 4 Speaker +
HDD LED
RESET SW
HDD LED
HDD LED -
HDD LED +
POWER LED -
POWER LED +
POWER LED
JFP1

MSI B450M PRO-VDH V2 Specifications

General

Form Factor	Micro ATX
Chipset	AMD B450
CPU Socket	AM4
Maximum Memory	64 GB
LAN	Realtek 8111H Gigabit LAN
Memory Slots	4 x DIMM
Storage Interface	4 x SATA 6Gb/s 1 x M.2
Video Outputs	1 x HDMI, 1 x DVI-D, 1 x VGA
