MSI B450M PRO-VDH V2 User Manual

16
󱭬󱝾󶯰󸊳

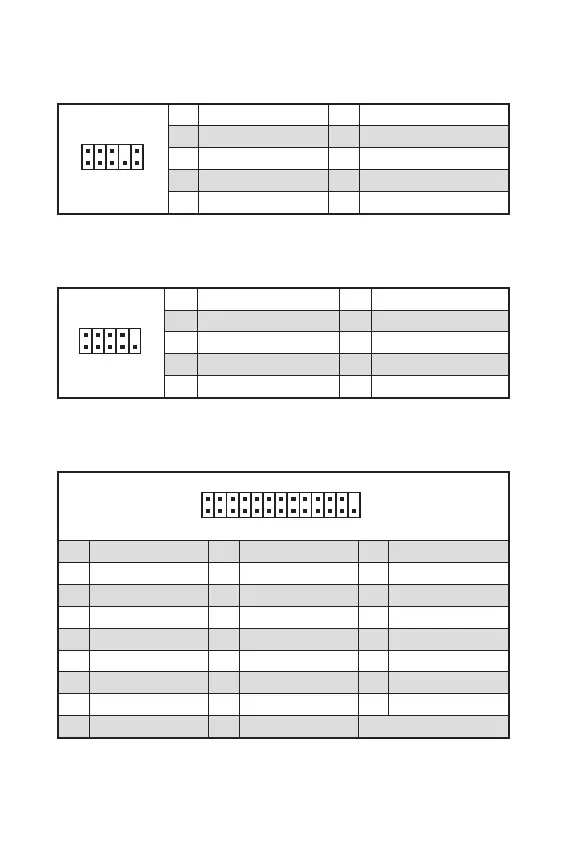

JAUD1: 󱴚󶷉󹮪󳼋󳱥󲵑
󴉆󳱥󲵑󵫞󳿕󸷏󳰛󱴚󹪸󴋃󵵙󹮪󸌾󳱥󲵑󾗘
1
2 10
9
1 MIC L 2 Ground
3 MIC R 4 NC
5 Head Phone R 6 MIC Detection
7 SENSE_SEND 8 No Pin
9 Head Phone L 10 Head Phone Detection
JCOM1: 󳍙󱳋󲘸󳰛󹰈
󴦞󳰛󹰈󵫞󱡖󸷏󳰛󸺨󳸖󳘮󹀣󶷉󵵙󳍙󱳋󲘸󳨐󴌛󾗘
1
2 10
9
1 DCD 2 SIN
3 SOUT 4 DTR
5 Ground 6 DSR
7 RTS 8 CTS
9 RI 10 No Pin
1
2 26
25
1 RSTB# 2 AFD# 3 PRND0
4 ERR# 5 PRND1 6 PINIT#
7 PRND2 8 LPT_SLIN# 9 PRND3
10 Ground 11 PRND4 12 Ground
13 PRND5 14 Ground 15 PRND6
16 Ground 17 PRND7 18 Ground
19 ACK# 20 Ground 21 BUSY
22 Ground 23 PE 24 Ground
25 SLCT 26 No Pin
JLPT1: 󳌣󸀅󲘸󳰛󹰈
󴦞󳰛󹰈󵫞󱡖󸷏󳰛󸺨󳸖󳘮󹀣󶷉󵵙󳌣󸀅󲘸󳨐󴌛󾗘

MSI B450M PRO-VDH V2 Specifications

General

Form Factor	Micro ATX
Chipset	AMD B450
CPU Socket	AM4
Maximum Memory	64 GB
LAN	Realtek 8111H Gigabit LAN
Memory Slots	4 x DIMM
Storage Interface	4 x SATA 6Gb/s 1 x M.2
Video Outputs	1 x HDMI, 1 x DVI-D, 1 x VGA
