MSI B450M PRO-VDH V2 User Manual

11
󶳧󱝾󴘭󸵅 󶳧󱝾󴘭󸵅
SATA1~4: SATA 6Gb/s 󳰛󱿂
󸴐󱛩󳰚󱿂󴂞 SATA 6Gb/s 󵬓󹪸󳰚󱿂󴪇󱙂󳰚󱿂󱿔󱝥󸴗󳰚󱘈󱙂 SATA 󸚤󲠫
SATA3
SATA4
SATA2
SATA1
󴱅󳞲
y 󸛝󱹂󲺽 SATA 󳽉󳮹󶳢󲺧󳩵󳦎 90 󳍿󲀥󱳎󽘜󱞼󸱶󸳣󶌱󱙆󱿔󷃫󱞵󱲡󵡂󳽉󳮹󱘸󲢀
y SATA 󶳢󵵙󱘺󶔏󴈄󵸒󱿻󵵙󳱤󱿂󽘜󵏍󶻽󽘜󱙚󱛌󷐽󵸢󶐀󹠣󳐫󸚔󸴗󳰚󳧡󳌣󳰚󱿂󶔏󲔩󱙛󴋄󱘔

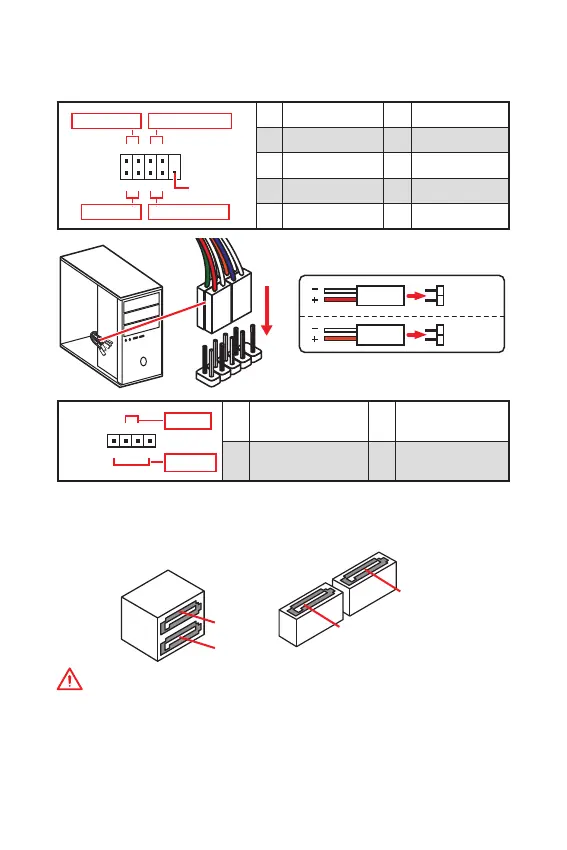

JFP1, JFP2: 󱴚󶷉󹪸󴋃󳰛󱿂
󸴐󱛩󳰚󱿂󸴗󳰚󱴙󶷉󹪸󴋄󱘔󵵙󳐴󱯃󲃅 LED 󵉈
1
2 10
9
+
+
+- -- -
+
Power LED
HDD LED Reset Switch
Reserved
Power Switch
JFP1
1 HDD LED + 2 Power LED +
3 HDD LED - 4 Power LED -
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin
JFP2
1
+
+
-
-
Speaker
Buzzer
1 Speaker - 2 Buzzer +
3 Buzzer - 4 Speaker +
HDD LED
RESET SW
HDD LED
HDD LED -
HDD LED +
POWER LED -
POWER LED +
POWER LED
JFP1

MSI B450M PRO-VDH V2 Specifications

General

Form Factor	Micro ATX
Chipset	AMD B450
CPU Socket	AM4
Maximum Memory	64 GB
LAN	Realtek 8111H Gigabit LAN
Memory Slots	4 x DIMM
Storage Interface	4 x SATA 6Gb/s 1 x M.2
Video Outputs	1 x HDMI, 1 x DVI-D, 1 x VGA
