MSI B650M PROJECT ZERO User Manual

37

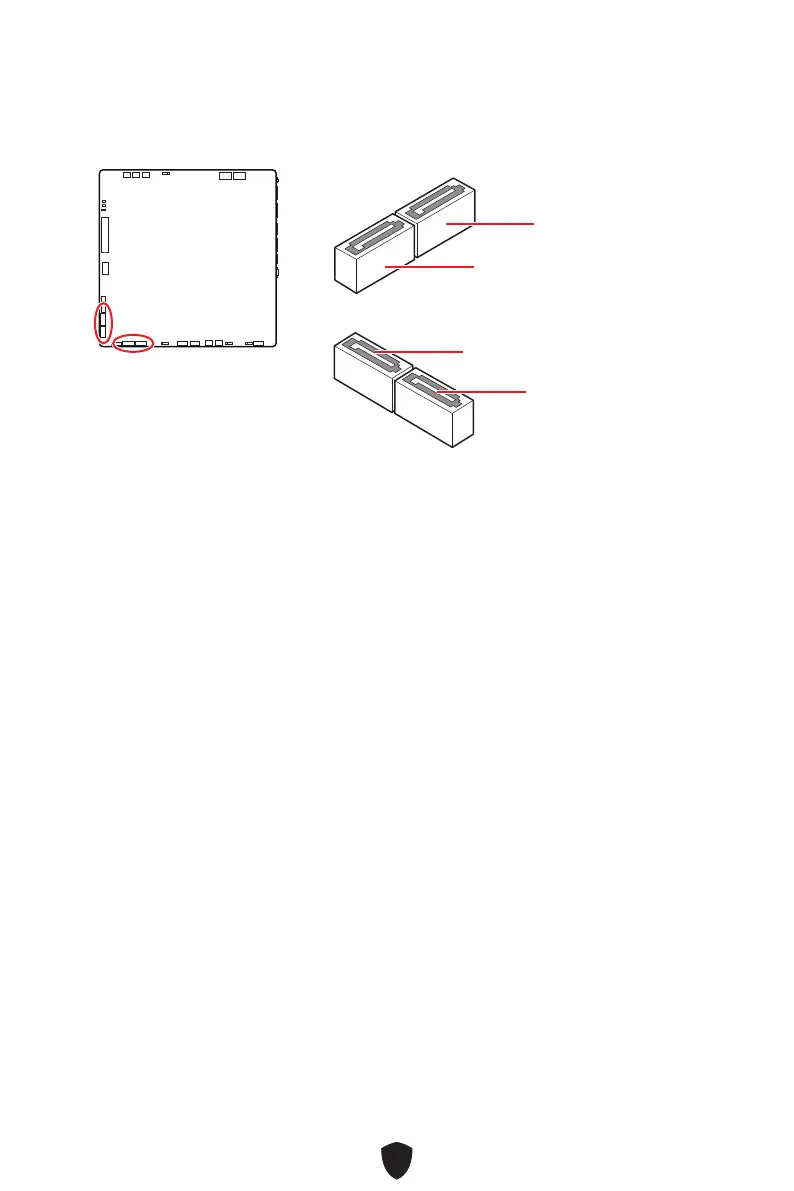

SATA_1~4: SATA 6Gb/s Anschlüsse
Dieser Anschluss basiert auf der Hochgeschwindigkeitsschnittstelle SATA 6 Gb/s. Pro
Anschluss kann ein SATA Gerät angeschlossen werden.
SATA3
SATA1
SATA2
SATA4

Wichtig
 Knicken Sie das SATA-Kabel nicht in einem 90° Winkel. Datenverlust könnte die
Folge sein.
 SATA-Kabel haben identische Stecker an beiden Enden. Es wird empfohlen den
flachen Stecker auf dem Motherboard einstecken.

MSI B650M PROJECT ZERO Specifications

General

Chipset	AMD B650
Memory Support	DDR5
Maximum Memory Supported	192GB
Form Factor	Micro ATX
Socket	AM5
Memory Slots	4
Storage Interface	4 x SATA 6Gb/s
Network	2.5G LAN
Audio	Realtek ALC897

Summary

Installing OS, Drivers & MSI Center

Installing Drivers with MSI Driver Utility Installer

Install drivers using the MSI utility.

UEFI BIOS

BIOS Setup

Guide to configuring BIOS settings.

Resetting BIOS

Updating BIOS

Steps to update the motherboard BIOS.

Quick Start

Safety Information

Case Stand-off Notification

Installing DDR5 Memory

Connecting the Front Panel Header

Installing the Motherboard

Connecting the Power Connectors

Installing SATA Drives

Installing a Graphics Card

Specifications

CPU and Chipset

Details on CPU socket and chipset.

Memory and Expansion Slots

Information on RAM slots and PCIe slots.

Onboard Graphics and SATA Ports

Graphics outputs and SATA connectors.

M.2 SSD Slots and RAID

M.2 storage support and RAID configurations.

Audio, LAN, and Wireless

Audio codec, LAN controller, and Wi-Fi/Bluetooth.

Power and Internal USB Connectors

Fan and System Connectors

Back Panel Connectors

Overview of Components

Top View Diagram

Bottom View Diagram

CPU Socket

AM5 CPU Introduction

DIMM Slots

Memory Module Installation Recommendations

PCIe Expansion Slots

M.2 Slots (Key M)

M.2 Module Installation

CMOS Battery (BAT1)

Replacing the CMOS Battery

Front Panel Connectors (JFP1, JFP2)

Power Connectors (CPU_PWR1~2, ATX_PWR1)

SATA Connectors (SATA_1~4)

Chassis Intrusion Connector (JCI1)

USB 3.2 Gen 2 10Gbps Type-C Connector (JUSB4)

USB 3.2 Gen 1 Connector (JUSB3)

Clear CMOS Jumper (JBAT1)

Resetting BIOS to Default Values

Fan Connectors

ARGB LED Connectors

Onboard LEDs

EZ Debug LED
