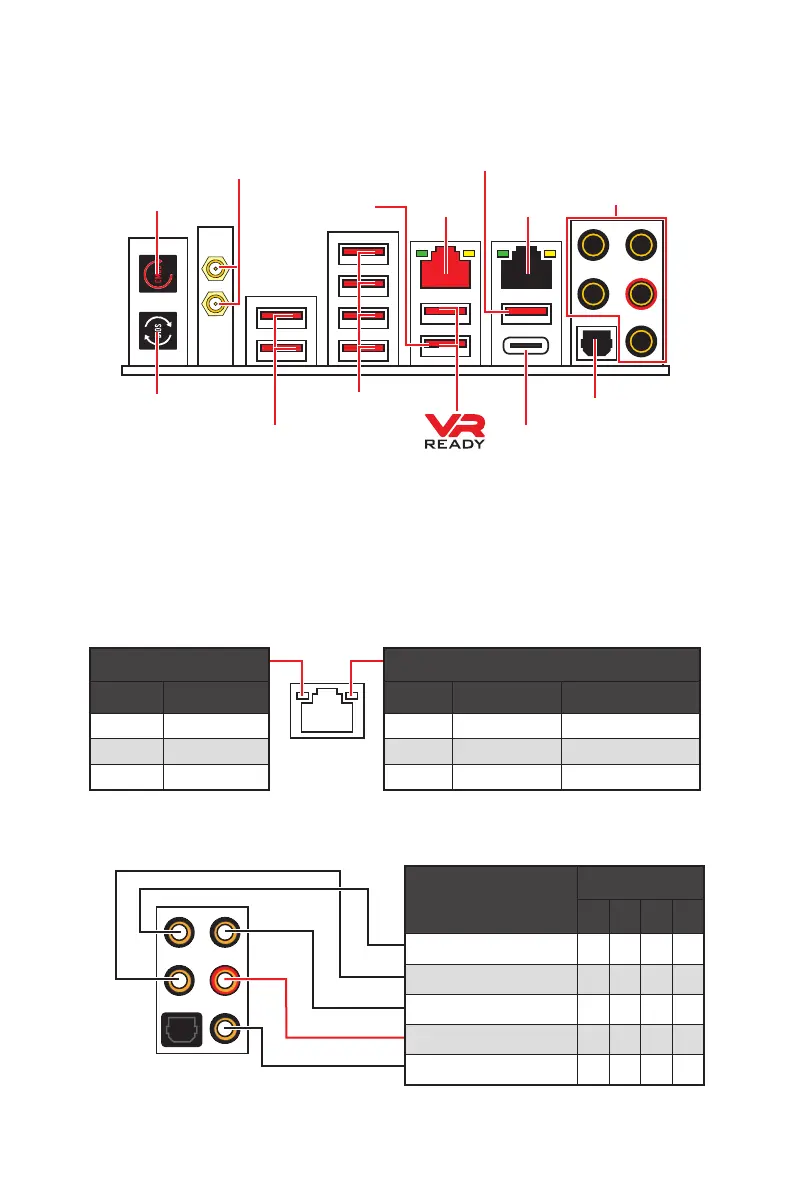

Rear I/O Panel
Rear I/O Panel
Gigabit
LAN
10Gigabit
LAN
Audio Ports
Optical S/PDIF-Out
USB 3.2 Gen1
Audio Ports Configuration
Audio Ports
Channel
2 4 6 8
Center/ Subwoofer Out  
Rear Speaker Out   
Line-In/ Side Speaker Out 
Line-Out/ Front Speaker Out    
Mic In
(: connected, Blank: empty)
Wi-Fi Antenna connectors
USB 3.2 Gen2
USB 3.2 Gen2
USB 3.2 Gen2
Flash BIOS Button
Clear CMOS button
USB 3.2 Gen2x2 Type-C
Link/ Activity LED
Status Description
Off No link
On Linked
Blinking Data activity
Speed LED
Status Gigabit LAN 10Gigabit LAN
Off 10 Mbps N/A
Green 100 Mbps 100 M/ 1G bps
Orange 1 Gbps 10 Gbps
LAN Port LED Status Table
∙ Clear CMOS button - Power off your computer. Press and hold the Clear CMOS
button for about 5-10 seconds to reset BIOS to default values.
∙ Flash BIOS Button/Port - Please refer to page 61 for Updating BIOS with Flash BIOS
Button.
Flash BIOS Port

MSI Creator TRX40 Specifications

General

Processor socket	Socket sTRX4
Processor manufacturer	AMD
Compatible processor series	3rd Gen AMD Ryzen™ Threadripper™
Memory channels	Quad-channel
Memory slots type	DIMM
Number of memory slots	8
Supported memory types	DDR4-SDRAM
Maximum internal memory	256 GB
Supported memory clock speeds	2133, 2400, 2666, 2800, 2933, 3000, 3200, 3466, 3600, 3733, 3866, 4000, 4266, 4400, 4666 MHz
RAID levels	0, 1, 10
Supported storage drive interfaces	M.2, SATA III
Parallel processing technology support	3-Way SLI, CrossFire, SLI
TPM connector	Yes
USB 2.0 connectors	-
Number of SATA II connectors	0
Number of SATA III connectors	6
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Wi-Fi	No
LAN controller	Intel® I211-AT
Ethernet interface type	10 Gigabit Ethernet, Gigabit Ethernet
Audio chip	Realtek ALC1220
Component for	PC
Motherboard chipset	AMD TRX40
Audio output channels	7.1 channels
Motherboard form factor	Extended ATX
Windows operating systems supported	Windows 10 x64
Number of M.2 (M) slots	3
