MSI Creator TRX40 User Manual

78
BIOS Setup

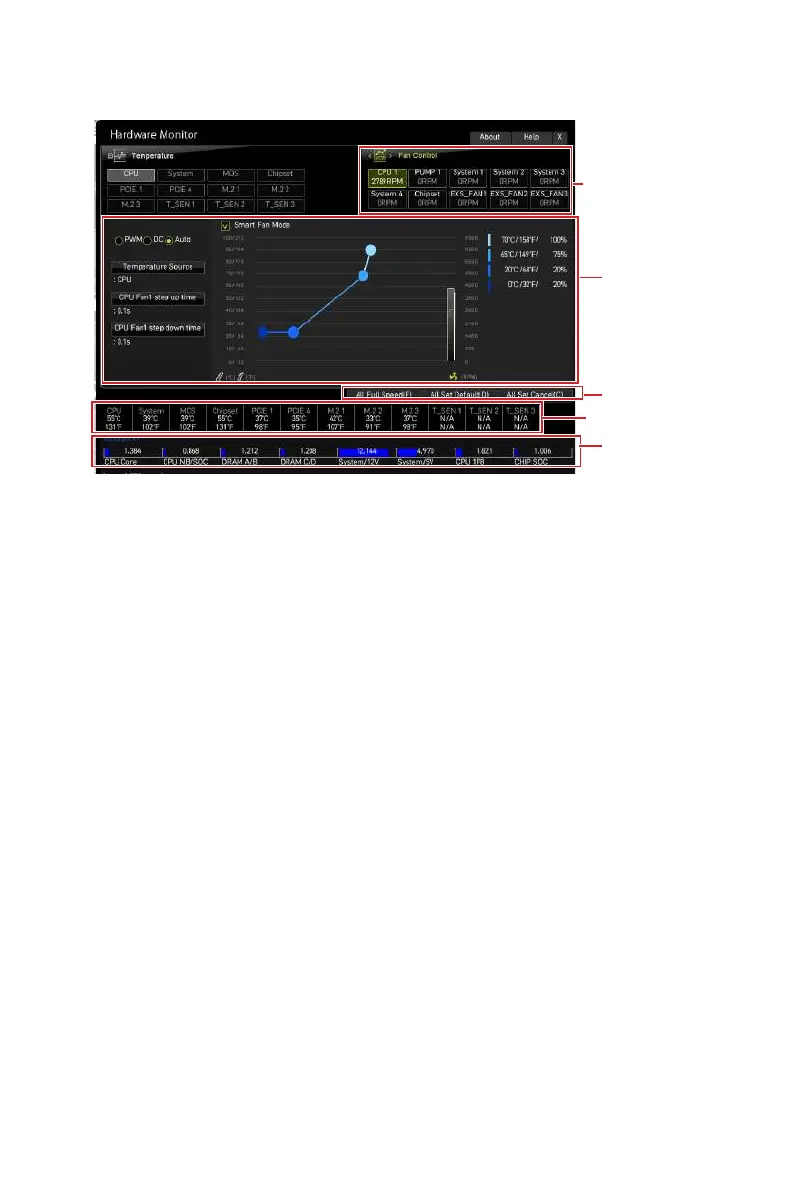

HARDWARE MONITOR
Speed
Temperature
Fan Manage
Voltage
Setting
Buttons
▶ Speed/ Temperature/ Voltage
Instantly display fan speed, temperature, and voltage for CPU, memory, and system
environments.
▶ Fan Manage
▪ PWM - allows you to select the PWM mode for fan operation.
▪ DC - allows you to select the DC mode for fan operation.
▪ Auto - allows you to select the Auto-detection mode for fan operation.
▪ Fan step up/ down time - allows you to set the period of fan step up/ down.
▪ Smart Fan Mode field - allows you to drag the gradient points to configure
the fan target values for Smart Fan mode. Smart Fan can control the fan speed
automatically depending on the CPU temperature to keep it with in a specific
range. If the current CPU temperature reaches to the target value, the Smart Fan
function will be activated.
⚠
Important
∙ The changing will achieve after you save the changes and reboot the system.
∙ Make sure fans are working properly after switching the PWM/ DC mode.
▶ Settings Buttons
▪ All Full Speed - configures all fans to run at full operating speed.
▪ All Set Default - configures all fans to run at default operating speed.
▪ All Set Cancel - discards current changes and restores previous operating fan
speeds .

MSI Creator TRX40 Specifications

General

Processor socket	Socket sTRX4
Processor manufacturer	AMD
Compatible processor series	3rd Gen AMD Ryzen™ Threadripper™
Memory channels	Quad-channel
Memory slots type	DIMM
Number of memory slots	8
Supported memory types	DDR4-SDRAM
Maximum internal memory	256 GB
Supported memory clock speeds	2133, 2400, 2666, 2800, 2933, 3000, 3200, 3466, 3600, 3733, 3866, 4000, 4266, 4400, 4666 MHz
RAID levels	0, 1, 10
Supported storage drive interfaces	M.2, SATA III
Parallel processing technology support	3-Way SLI, CrossFire, SLI
TPM connector	Yes
USB 2.0 connectors	-
Number of SATA II connectors	0
Number of SATA III connectors	6
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Wi-Fi	No
LAN controller	Intel® I211-AT
Ethernet interface type	10 Gigabit Ethernet, Gigabit Ethernet
Audio chip	Realtek ALC1220
Component for	PC
Motherboard chipset	AMD TRX40
Audio output channels	7.1 channels
Motherboard form factor	Extended ATX
Windows operating systems supported	Windows 10 x64
Number of M.2 (M) slots	3

Weight and Dimensions

Width	- mm
