MSI Creator TRX40 User Manual

91 pages

To Next Page

To Previous Page

AMD RAID Configuration

Initializing Disks

New disks and legacy disks must be initialized before they can be used to create an

AMD-RAID array. Initialization writes AMD-RAID configuration information (metadata)

to a disk.

⚠

Important

∙

If a disk is part of an AMD-RAID array, the disk cannot be selected for initialization.

To initial the disk anyway, delete the AMD-RAID array. Data on the disk is deleted

during initialization so ensure the correct disks are chosen to initialize.

∙

A legacy disk can contain valid data. When a legacy disk is initialized, all data on the

disk is lost.

To initialize disks

1. As previously mentioned, enable RAIDXpert2 Configuration Utility.

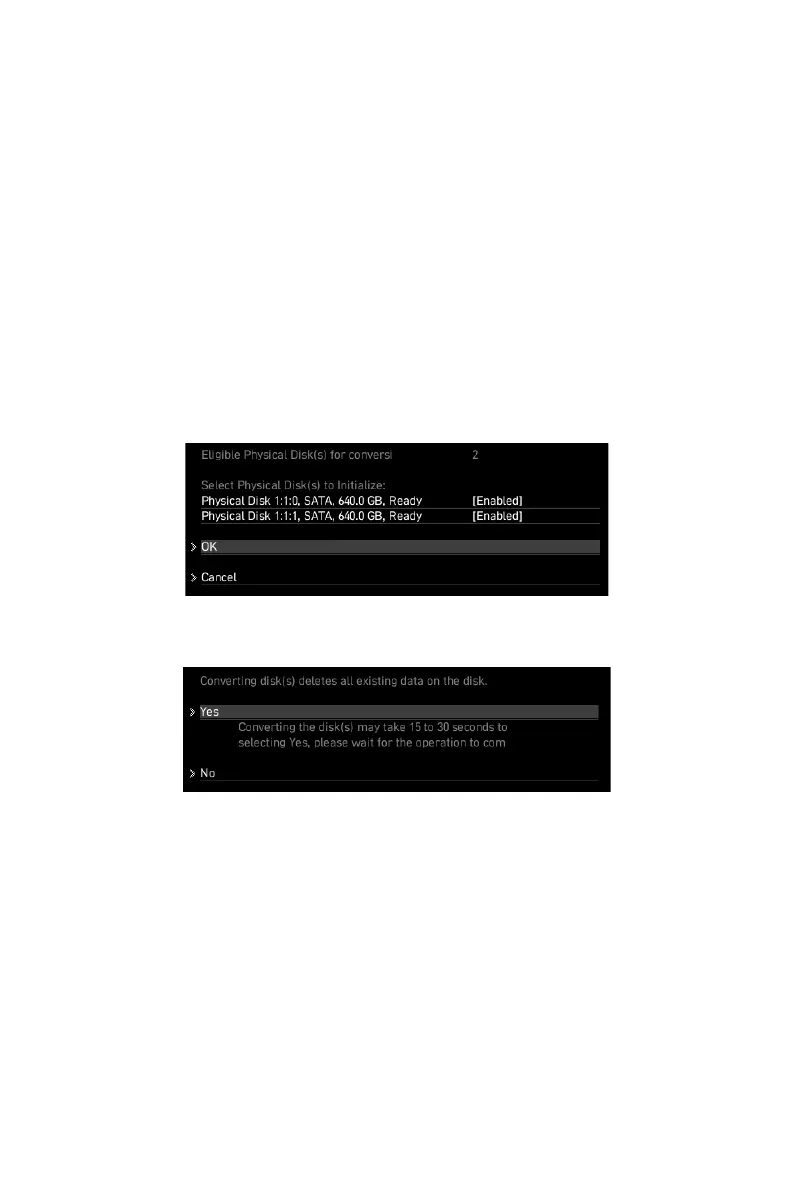

2. Go to BIOS > SETTINGS > Advanced > RAIDXpert2 Configuration Utility > Physical

Disk Management > Select Physical Disk Operations > Initialize Disk sub-menu.

3. Select desired disks by changing the Physical Disk setting to Enabled.

4. Select OK, then press Enter.

5. Review the warning message, if you want to proceed, select YES, then press Enter.

6. Initialization takes 10 to 15 seconds per disk. During initialization, a complete

rescan of all channels is done automatically.

Questions and Answers:

Need help?

Do you have a question about the MSI Creator TRX40 and is the answer not in the manual?

General

Processor socket	Socket sTRX4
Processor manufacturer	AMD
Compatible processor series	3rd Gen AMD Ryzen™ Threadripper™
Memory channels	Quad-channel
Memory slots type	DIMM
Number of memory slots	8
Supported memory types	DDR4-SDRAM
Maximum internal memory	256 GB
Supported memory clock speeds	2133, 2400, 2666, 2800, 2933, 3000, 3200, 3466, 3600, 3733, 3866, 4000, 4266, 4400, 4666 MHz
RAID levels	0, 1, 10
Supported storage drive interfaces	M.2, SATA III
Parallel processing technology support	3-Way SLI, CrossFire, SLI
TPM connector	Yes
USB 2.0 connectors	-
Number of SATA II connectors	0
Number of SATA III connectors	6
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Wi-Fi	No
LAN controller	Intel® I211-AT
Ethernet interface type	10 Gigabit Ethernet, Gigabit Ethernet
Audio chip	Realtek ALC1220
Component for	PC
Motherboard chipset	AMD TRX40
Audio output channels	7.1 channels
Motherboard form factor	Extended ATX
Windows operating systems supported	Windows 10 x64
Number of M.2 (M) slots	3
