Overview of Components
1
1
1
D
+5V

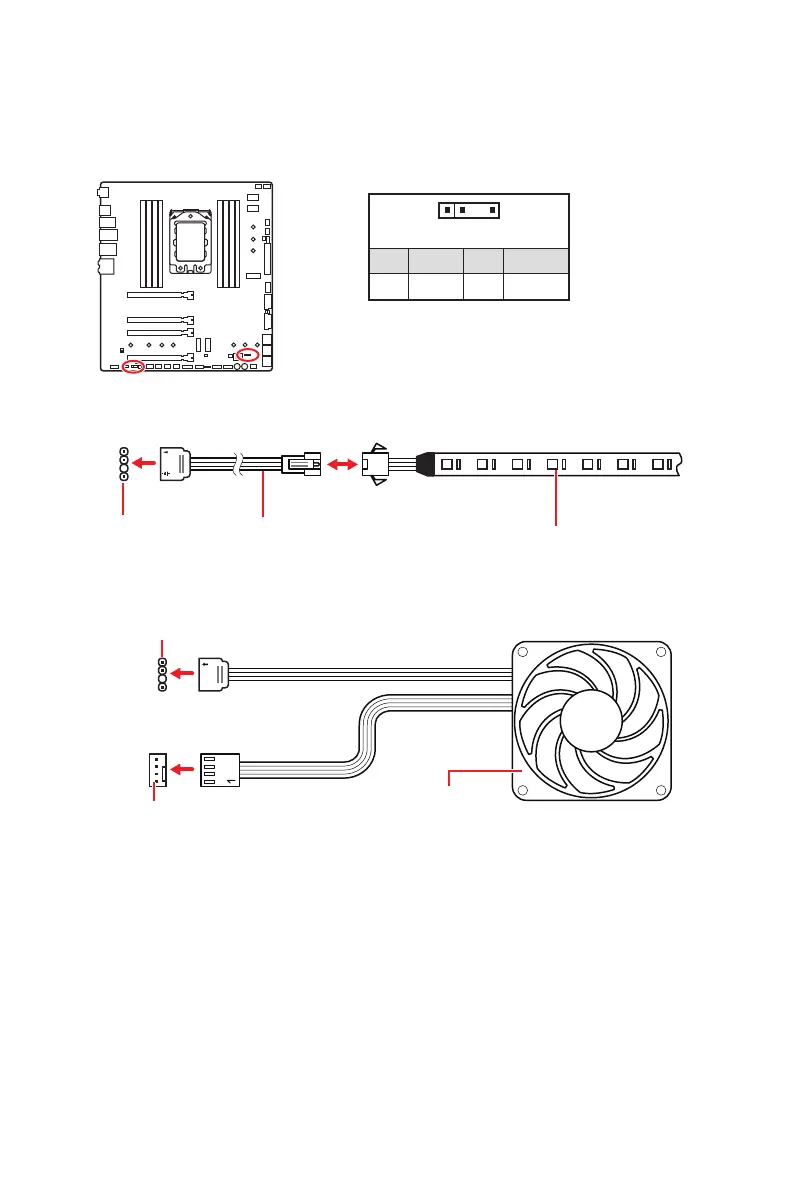

JRAINBOW1~2: Addressable RGB LED connectors
The JRAINBOW connectors allow you to connect the WS2812B Individually
Addressable RGB LED strips 5V.
JRAINBOW
connector
JRAINBOW connector
System Fan connector
Rainbow RGB LED
extension cable
WS2812B Individually
Addressable RGB LED strips 5V
1
1 +5V 2 Data
3 No Pin 4 Ground
Addressable RGB LED Strip Connection
Addressable RGB LED Fan Connection
Addressable RGB LED Fan
⚠
CAUTION
Do not connect the wrong type of LED strips. The JRGB connector and the JRAINBOW
connector provide different voltages, and connecting the 5V LED strip to the JRGB
connector will result in damage to the LED strip.
⚠
Important
∙ The JRAINBOW connector supports up to 75 LEDs WS2812B Individually
Addressable RGB LED strips (5V/Data/Ground) with the maximum power rating of 3A
(5V). In the case of 20% brightness, the connector supports up to 200 LEDs.
∙ Always turn off the power supply and unplug the power cord from the power outlet
before installing or removing the RGB LED strip.
∙ Please use MSI’s software to control the extended LED strip.

MSI Creator TRX40 Specifications

General

Processor socket	Socket sTRX4
Processor manufacturer	AMD
Compatible processor series	3rd Gen AMD Ryzen™ Threadripper™
Memory channels	Quad-channel
Memory slots type	DIMM
Number of memory slots	8
Supported memory types	DDR4-SDRAM
Maximum internal memory	256 GB
Supported memory clock speeds	2133, 2400, 2666, 2800, 2933, 3000, 3200, 3466, 3600, 3733, 3866, 4000, 4266, 4400, 4666 MHz
RAID levels	0, 1, 10
Supported storage drive interfaces	M.2, SATA III
Parallel processing technology support	3-Way SLI, CrossFire, SLI
TPM connector	Yes
USB 2.0 connectors	-
Number of SATA II connectors	0
Number of SATA III connectors	6
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Wi-Fi	No
LAN controller	Intel® I211-AT
Ethernet interface type	10 Gigabit Ethernet, Gigabit Ethernet
Audio chip	Realtek ALC1220
Component for	PC
Motherboard chipset	AMD TRX40
Audio output channels	7.1 channels
Motherboard form factor	Extended ATX
Windows operating systems supported	Windows 10 x64
Number of M.2 (M) slots	3

Weight and Dimensions

Width	- mm
