Right Side View

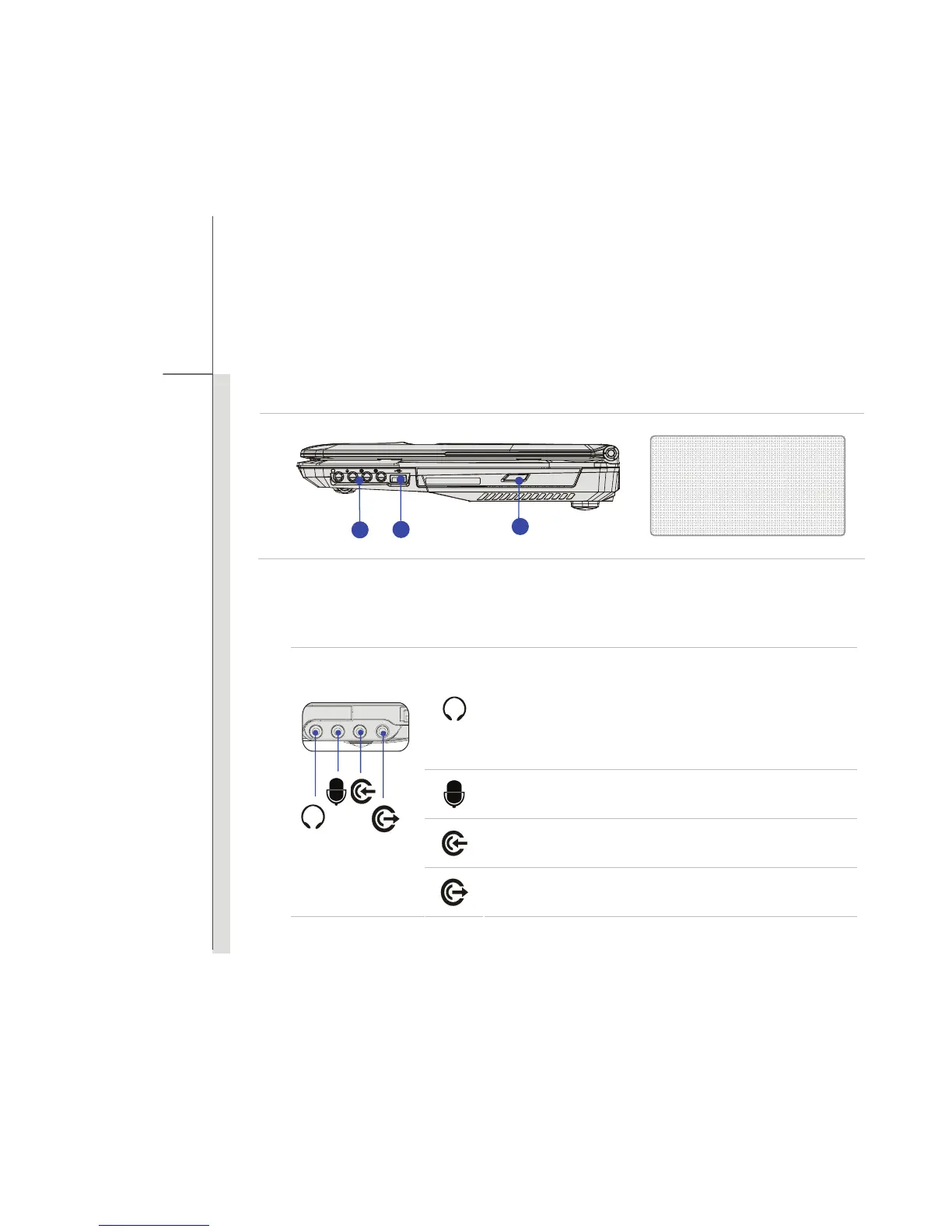

1. Audio Port Connectors
Make high quality sound blaster with stereo system and Hi-Fi function supported. Connect your
speakers to the proper connectors as shown below.
Headphone out/ SPDIF-out: Used for speakers or
headphones. The S/PDIF connector is also provided for
digital audio transmission to external speakers through an
optical fiber cable.
Connect the Front speakers here.
Mic In: Used for an external microphone.
Connect the Center and Subwoofer speakers here.
Line In: Used for an external audio device.
Connect the Rear speakers here.
Line Out: A connector for speakers.
Connect the Surround speakers here.
1
2
3
1. Audio Port Connectors
2. USB Port
3. Optical Drive Device
