MSI H510M PRO User Manual

Important
When adding or removing expansion cards, always turn off the power supply and unplug the power supply
power cable from the power outlet. Read the expansion card’s documentation to check for any necessary
additional hardware or software changes.
If you install a large and heavy graphics card, you need to use a tool such as MSI Gaming Series Graphics
Card Bolster to support its weight to prevent deformation of the slot.

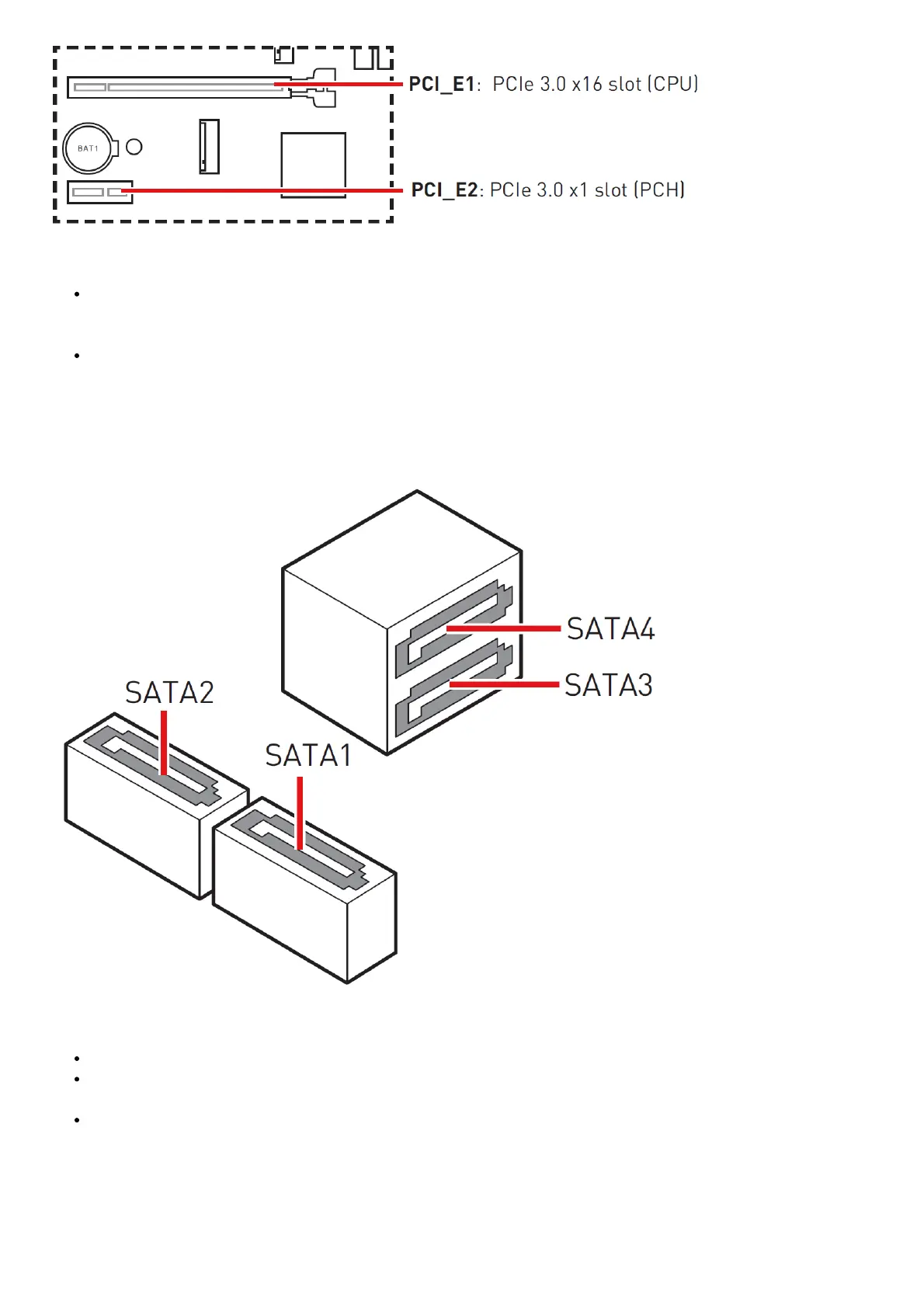

SATA1~4: SATA 6Gb/s Connectors
These connectors are SATA 6Gb/s interface ports. Each connector can connect to one SATA device.
Important
Please do not fold the SATA cable at a 90-degree angle. Data loss may result during transmission otherwise.
SATA cables have identical plugs on either sides of the cable. However, it is recommended that the flat
connector be connected to the motherboard for space saving purposes.
SATA1 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
JAUD1: Front Audio Connector
This connector allows you to connect audio jacks on the front panel.

MSI H510M PRO Specifications

General

Processor socket	LGA 1200 (Socket H5)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium
Maximum number of SMP processors	1
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 2666, 2933, 3200 MHz
Supported storage drive types	HDD & SSD
Number of storage drives supported	5
Supported storage drive interfaces	M.2, SATA
DirectX version	12.0
Maximum resolution	4096 x 2304 pixels
Parallel processing technology support	Not supported
Number of SATA III connectors	4
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB connector type	USB Type-A
DisplayPort version	1.4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Wi-Fi	No
LAN controller	Intel® I219-V
Ethernet interface type	Gigabit Ethernet
Audio chip	Realtek ALC897
Component for	PC
Motherboard chipset	Intel H510
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Number of mounting holes	6
Windows operating systems supported	Windows 10 x64
BIOS type	UEFI AMI
Cables included	SATA
Harmonized System (HS) code	84733020
Weight	730 g

Weight and Dimensions

Depth	202 mm
Width	236 mm
Height	60 mm
