Rear I/O Panel

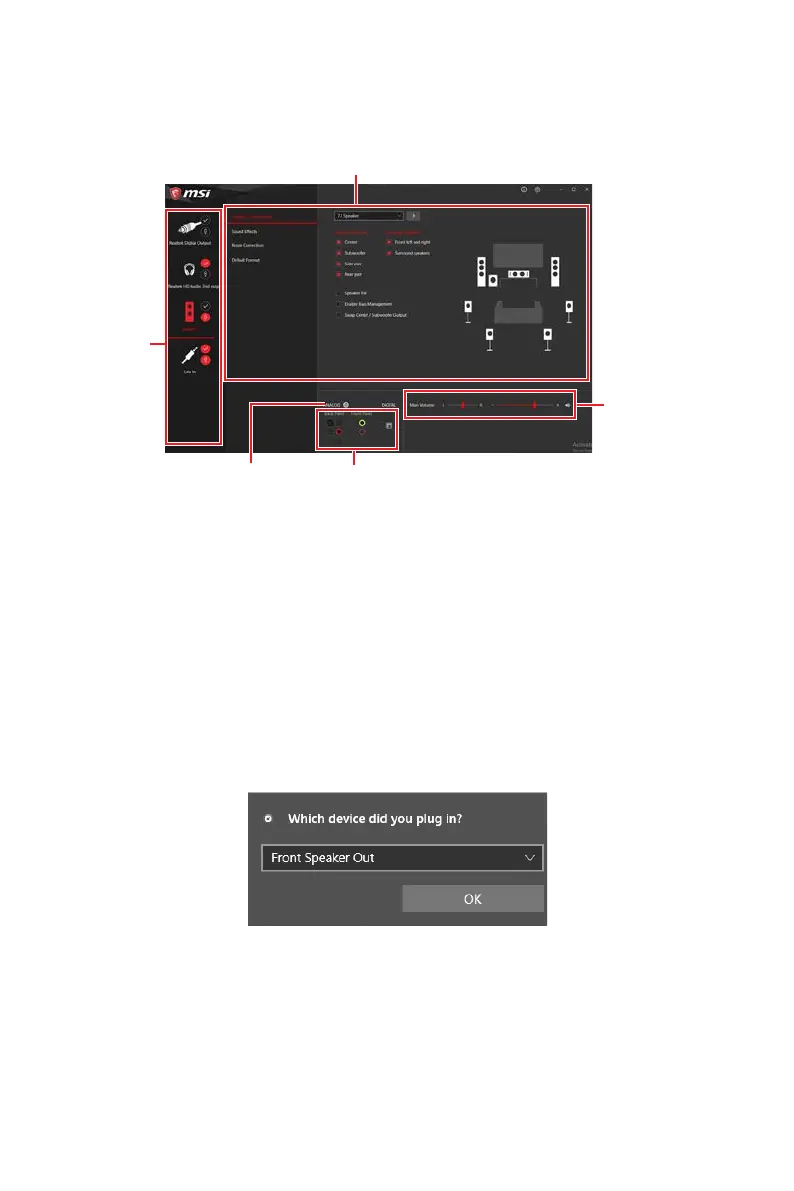

Realtek Audio Console

After Realtek Audio Console is installed. You can use it to change sound settings to get

better sound experience.

∙ Device Selection

options. The check sign indicates the devices as default.

∙ Application Enhancement

guidance of anticipated sound effect for both output and input device.

∙ Main Volume

that you plugged in front or rear panel by adjust the bar.

∙ Jack Status

computer.

∙ Connector Settings

Auto popup dialog

When you plug into a device at an audio jack, a dialogue window will pop up asking you

which device is current connected.

Each jack corresponds to its default setting as shown on the next page.

⚠

Important

The pictures above for reference only and may vary from the product you purchased.

Jack Status

Connector Settings

Device

Selection

Main Volume

Application Enhancement
