Übersicht der Komponenten

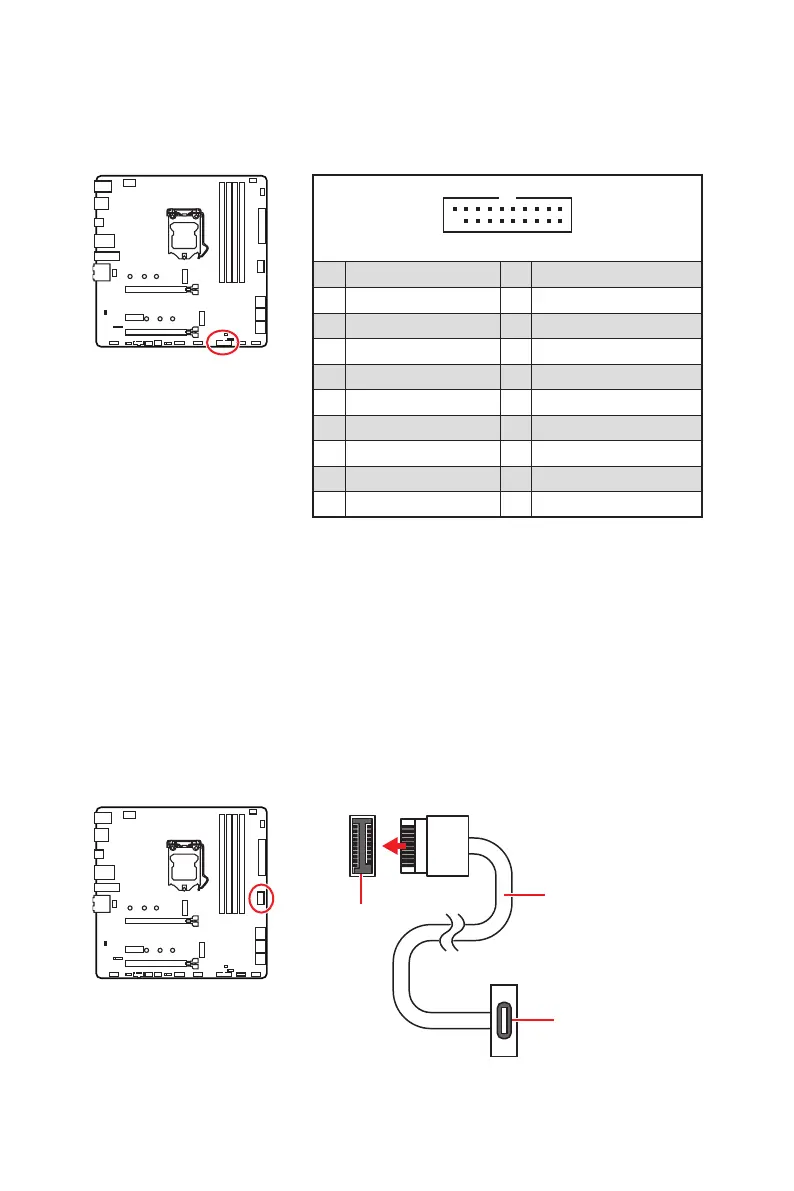

JUSB3: USB 3.2 Gen 1 Anschluss

Mit diesem Anschluss können Sie die USB 3.2 Gen 1 5Gbit/s Anschlüsse auf dem

Frontpanel verbinden.

⚠

Wichtig

Bitte beachten Sie, dass Sie die mit „Stromführende Leitung“ und „Erdleitung“

bezeichneten Pins korrekt verbinden müssen, ansonsten kann es zu Schäden

kommen.

1 10

1 Power 11 USB2.0+

2 USB3_RX_DN 12 

3 USB3_RX_DP 13 Ground

4 Ground 14 USB3_TX_C_DP

5 USB3_TX_C_DN 15 USB3_TX_C_DN

6 USB3_TX_C_DP 16 Ground

7 Ground 17 USB3_RX_DP

8  18 USB3_RX_DN

9 USB2.0+ 19 Power

10 Ground 20 No Pin

JUSB4: USB 3.2 Gen 1 Typ-C Anschluss



Frontpanel verbinden. Der Anschluss verfügt über ein besonders sicheres Design.

Wenn Sie das Kabel anschließen, müssen Sie es in der entsprechenden Ausrichtung

verbinden.

JUSB4



USB Anschluss auf

dem Frontpanel
