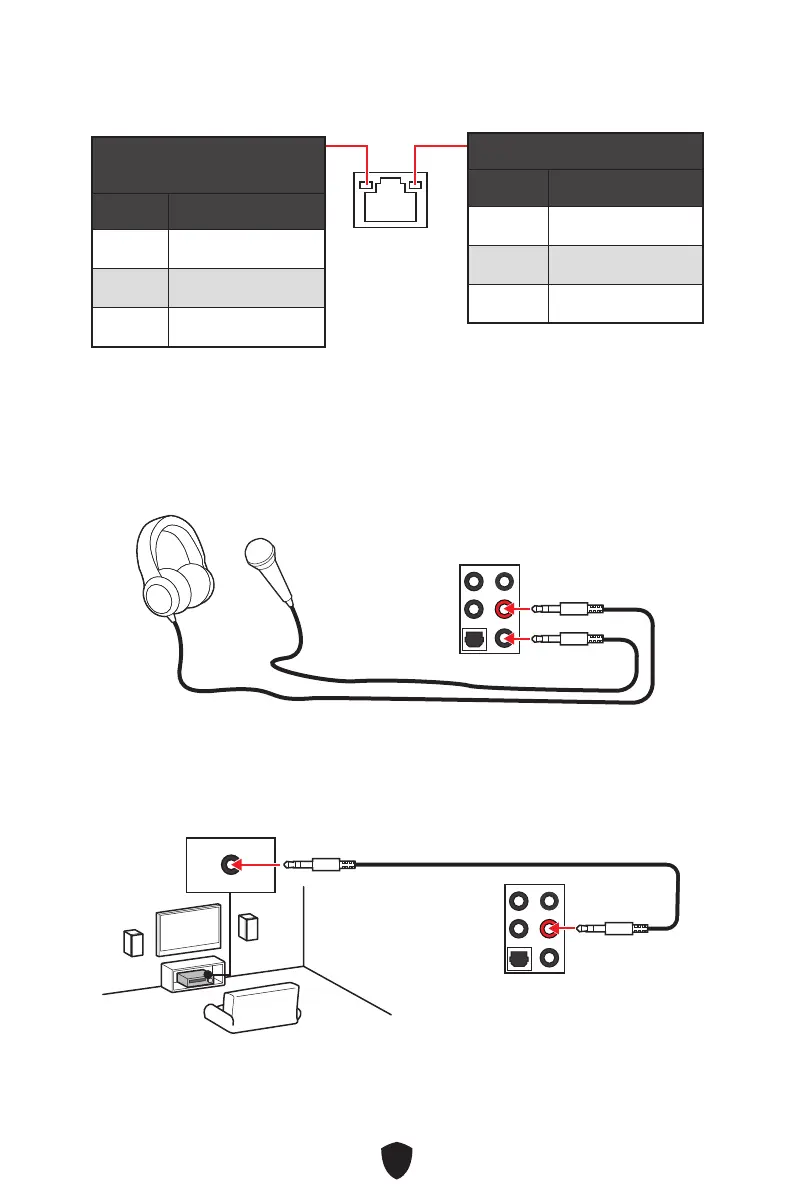

Tableau explicatif de l’état de la LED du port LAN
LED indiquant la connexion et
l’activité
État Description
Éteint Pas de connexion
Jaune Connexion correcte
Clignote Activité en cours
LED indiquant la vitesse
État Vitesse
Éteint 10 Mb/s
Vert 100 Mb/s / 1 Gb/s
Orange 2,5 Gb/s
Connexion des prises audio
Illustration de l’utilisation des ports audio dédiés au casque et au
microphone
Illustration de l’utilisation du port audio dédié aux haut-parleurs
AUDIO INPUT

MSI MAG B650M MORTAR WIFI Specifications

General

Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen
Supported processor sockets	Socket AM5
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400 MHz
Ethernet LAN	Yes
LAN controller	Realtek RTL8125B
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Bluetooth version	5.2
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ethernet interface type	2.5 Gigabit Ethernet
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Headphone outputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
RAID levels	0, 1, 10
Supported storage drive interfaces	M.2, SATA
Parallel processing technology support	Not supported
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Audio chip	Realtek ALC4080
Component for	PC
Motherboard chipset	AMD B650
PC health monitoring	Fan
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 11 x64

Weight and Dimensions

Width	243.84 mm
