MSI MAG B650M MORTAR WIFI User Manual

30
M2_1~2: M.2 Slots (Key M)
M2_1
M2_2
⚠
Important
∙ If your M.2 SSD equips its own heatsink, please
remove the M.2 plates or rubber cubes in the
M.2 slots before installing M.2 SSD. Do not
re-install the heatsinks supplied with your
motherboard.
Installing M.2 module

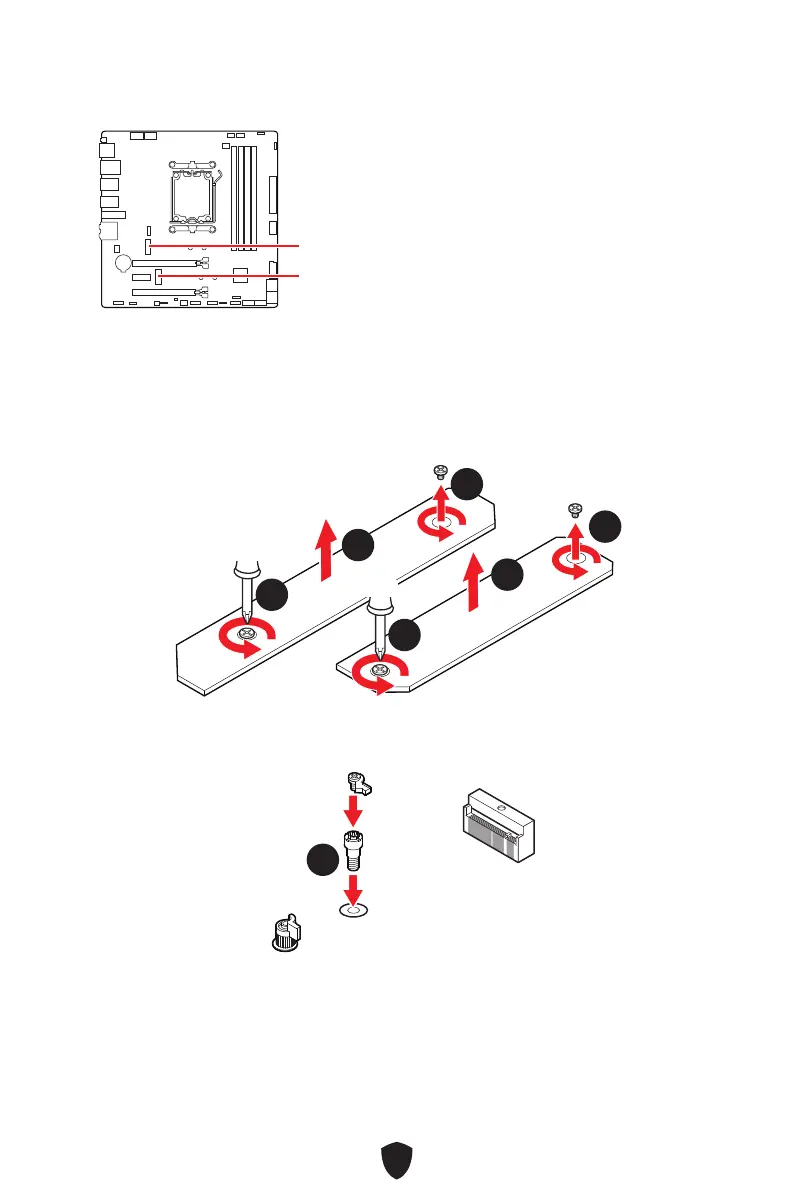

1. Loosen the screws of M.2 Shield Frozr heatsink.
2. Lift up the M.2 Shield Frozr heatsink and remove it.
11
11
11
22
22
11
3. Install the supplied EZ M.2 Clip kit before you install 2260 SSD. Skip this step if
you install 2280 SSD.
33
2260
