MSI MPG X570 GAMING PRO CARBON WIFI User Manual

28
Overview of Components

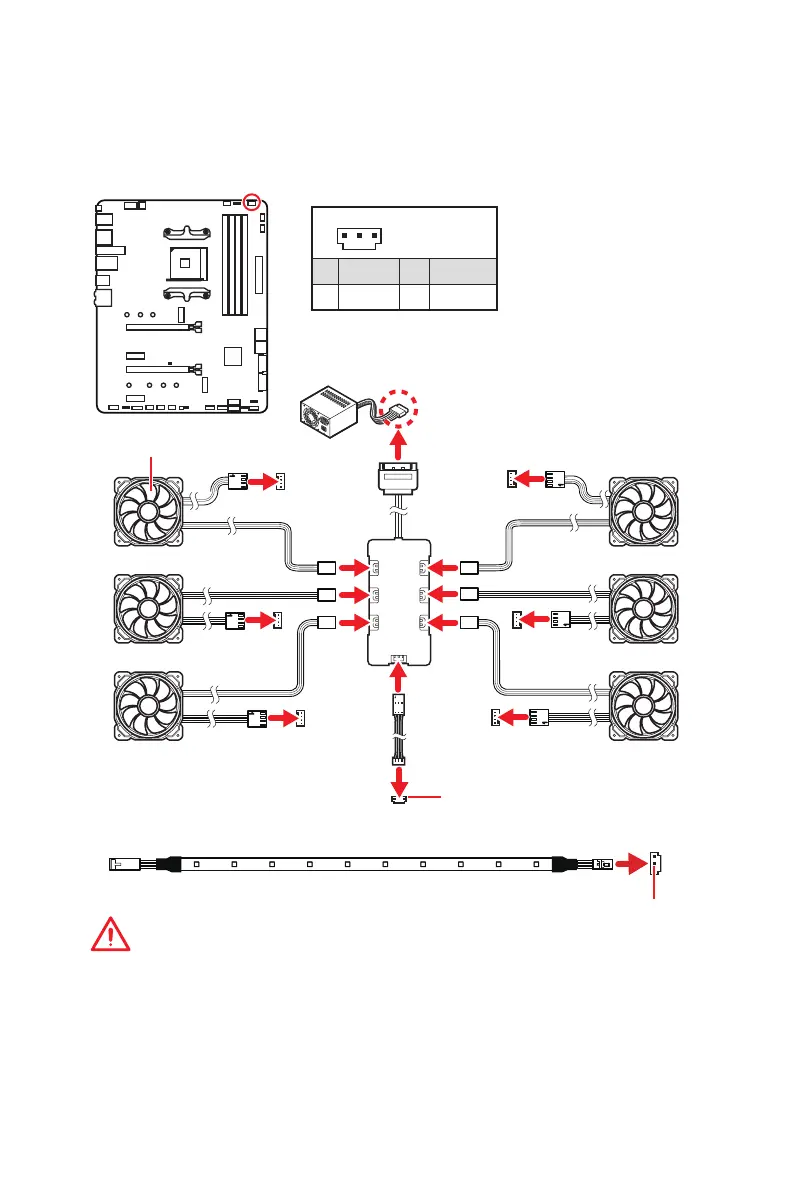

JCORSAIR1: CORSAIR Connector
The JCORSAIR1 connector allows you to connect the CORSAIR Individually
Addressable RGB LED strips 5V or CORSAIR RGB LED fans with the CORSAIR fan hub.
Once all items are connected properly, you can control the CORSAIR RGB LED strips
and fans with MSI's software.
Important
y Fans must start at 1 and continue in series. 1 > 2 > 3 > 4 > 5 > 6. Any fan not
connected in series will break communication and the RGB LED lighting function will
not work.
y Quantity of RGB LED Fans or RGB LED Lighting PRO strips supported may differ
between models. Please refer to the motherboard specification.
y CORSAIR RGB LED Fan and CORSAIR Lighting Node PRO can’t be used at the same
time.
1
JCORSAIR1
1 +5V 2 Data
3 Ground
JCORSAIR1 connector
SYS_FAN
SYS_FAN
SYS_FAN
SYS_FAN
SYS_FAN
SYS_FAN
1
2
34
5
6
JCORSAIR1 connector
SATA power
CORSAIR RGB LED Fan Connection
CORSAIR Lighting Node PRO Connection
CORSAIR RGB LED fan
CORSAIR fan hub

MSI MPG X570 GAMING PRO CARBON WIFI Specifications

General

Processor socket	Socket AM4
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 3 2nd Gen, AMD Ryzen 3 3rd Gen, AMD Ryzen 5 2nd Gen, AMD Ryzen 5 3rd Gen, AMD Ryzen 7 2nd Gen, AMD Ryzen 7 3rd Gen, AMD Ryzen 9 3rd Gen
Maximum number of SMP processors	1
Audio chip	Realtek ALC1220
Component for	PC
Motherboard chipset	AMD X570
Audio output channels	7.1 channels
Motherboard form factor	ATX
Number of mounting holes	9
Windows operating systems supported	Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64
ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	1866, 2133, 2400, 2666 MHz
PCI Express x1 (Gen 3.x) slots	2
RAID levels	0, 1, 10
Supported storage drive interfaces	SATA III
Maximum resolution	4096 x 2160 pixels
Parallel processing technology support	2-Way CrossFireX
Number of SATA III connectors	6
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
BIOS type	UEFI AMI
HDMI version	1.4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
LAN controller	Intel® I211-AT
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth version	5.0
Ethernet interface type	Gigabit Ethernet
Cables included	SATA
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	243 mm
Width	304 mm
