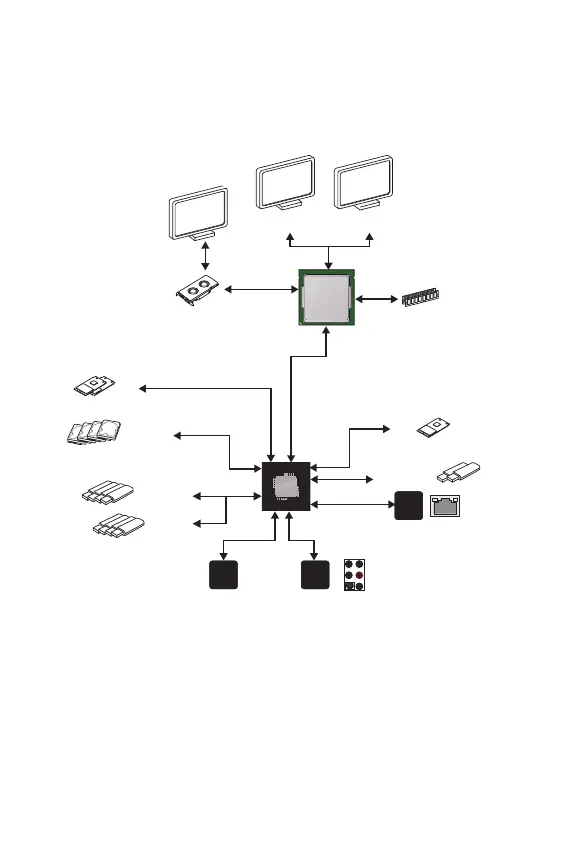

Block Diagram
Block Diagram
(Rear + Front)
2 Channel DDR4 Memory
2x USB 3.1 Gen2
PCIE Bus
DMI 3.0
PCH
Processor
NV6797
Super I/O
Realtek
ALC892
4x USB 3.1 Gen1
4x USB 2.0
Realtek
8111H
Audio Jacks
4x SATA 6Gb/s
2x M.2
HDMI
DisplayPort
PCIe Bus
1x M.2
(E Key for Intel CNVi module only)
