2-8
MS-9643 Mainboard
Link IndicatorActivity Indicator
LED Color LED State Condition
Off LAN link is not established.
Left Yellow On (steady state) LAN link is established.
On (brighter & pulsing)The computer is communicating with another computer on the LAN.
Green Off 10 Mbit/sec data rate is selected.
Right On 100 Mbit/sec data rate is selected.
Yellow On 1000 Mbit/sec data rate is selected.
LAN (RJ-45) Jack
The standard RJ-45 jack is for connection
to single Local Area Network (LAN). You
can connect a network cable to it.

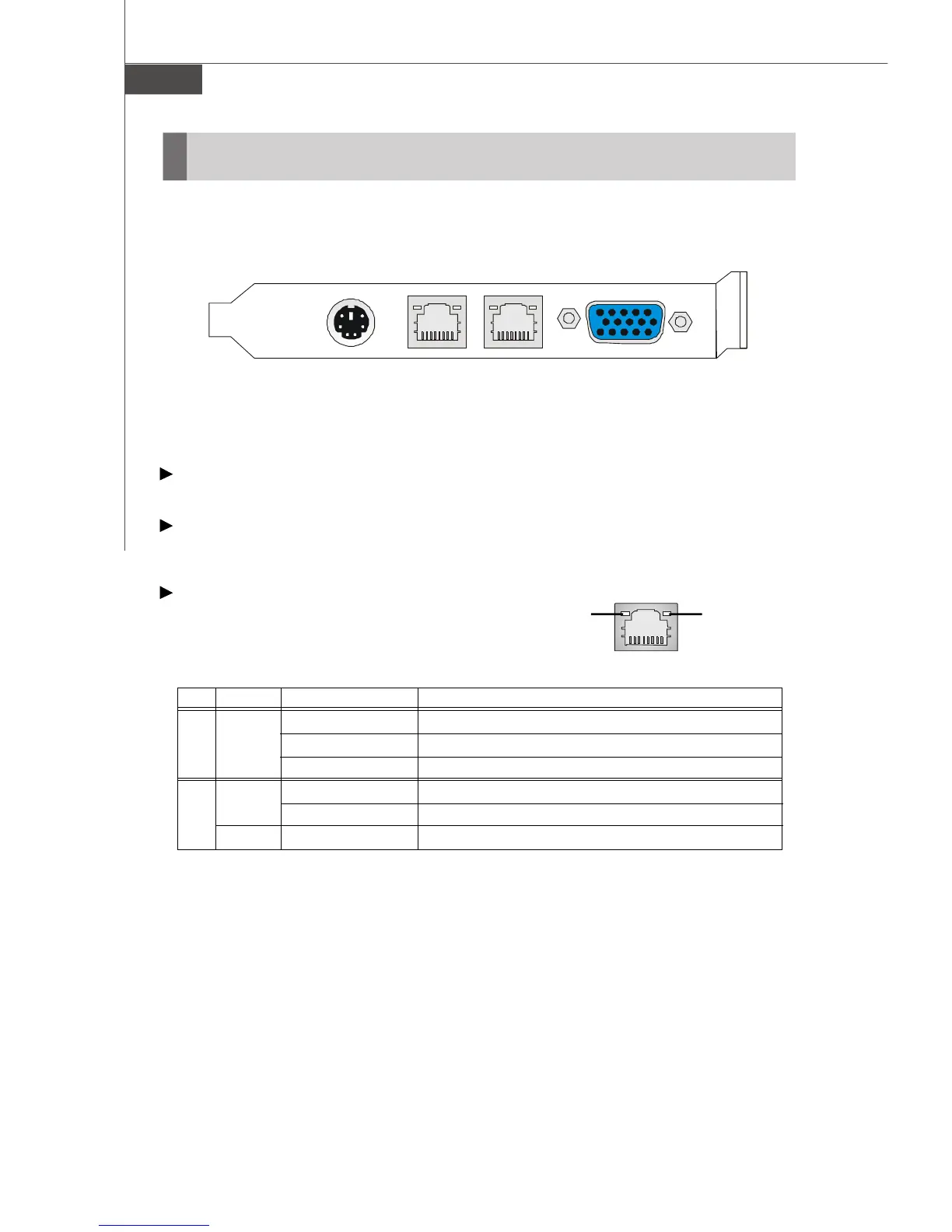

Bracket I/O
Mouse/Keyboard Connector
The standard PS/2
®
mouse/keyboard DIN connector is for a PS/2
®
mouse/keyboard.
VGA Connector
The DB15-pin female connector is provided for VGA monitors.
Mouse/
Keyboard VGA Port
LAN1
(Optional)
LAN2
(Optional)
To Next Page
