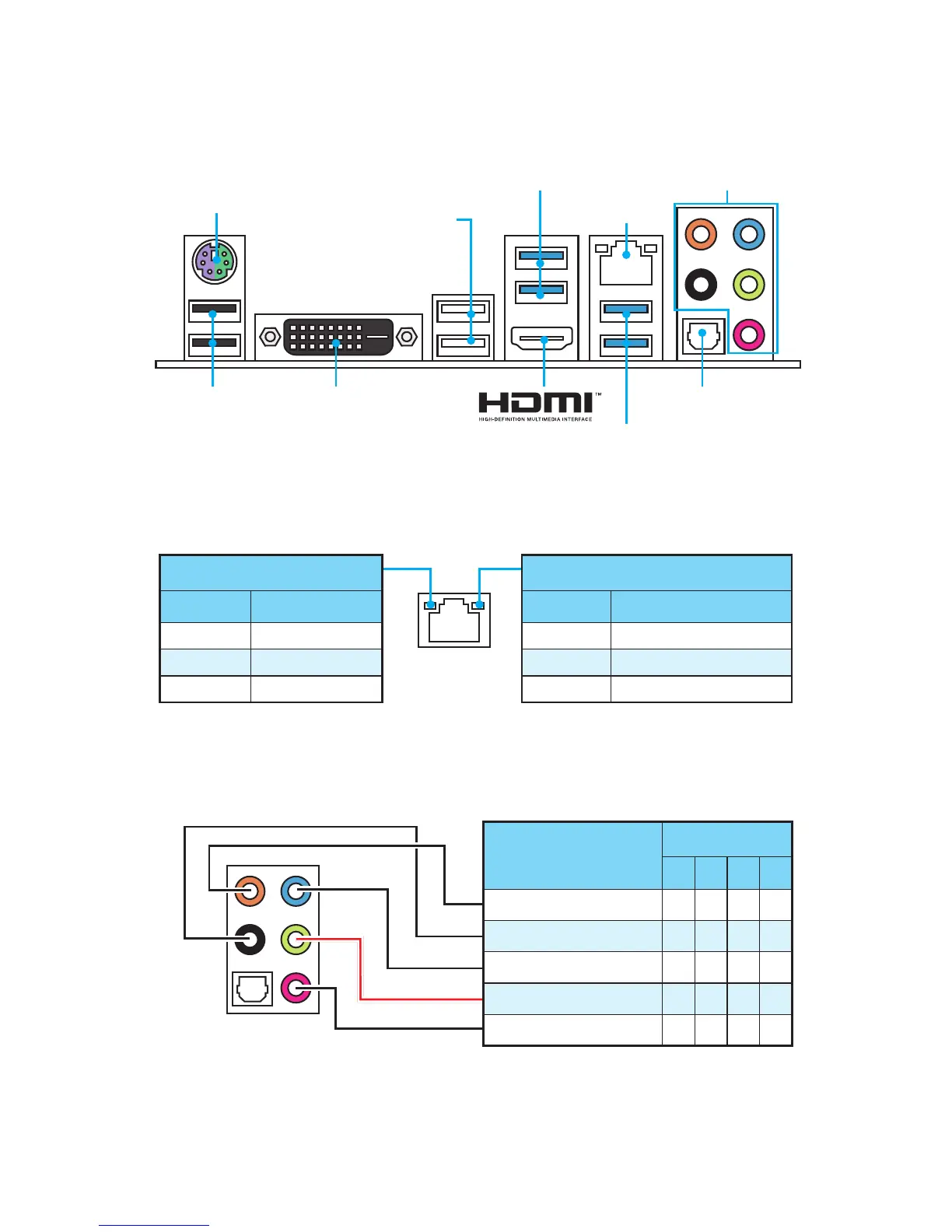

Rear I/O Panel

Link/ Activity LED

Status Description

Off No link

Yellow Linked

Blinking Data activity

Speed LED

Status Description

Off 10 Mbps connection

Green 100 Mbps connection

Orange 1 Gbps connection

LAN Port LED Status Table

Audio Ports Configuration

Audio Ports

Channel

2 4 6 8

Center/ Subwoofer Out ● ●

Rear Speaker Out ● ● ●

Line-In/ Side Speaker Out ●

Line-Out/ Front Speaker Out ● ● ● ●

Mic In

(●: connected, Blank: empty)

PS/2

LAN

USB 3.1 Gen1

USB 3.1 Gen2 (blue,

Z170A KRAIT GAMING)

USB 2.0 (black, Z170

KRAIT GAMING)

Audio Ports

USB 2.0

USB 3.1 Gen1

Optical S/PDIF-Out DVI-D

MSI Z170 KRAIT GAMING User Manual
