31
Overview of Components

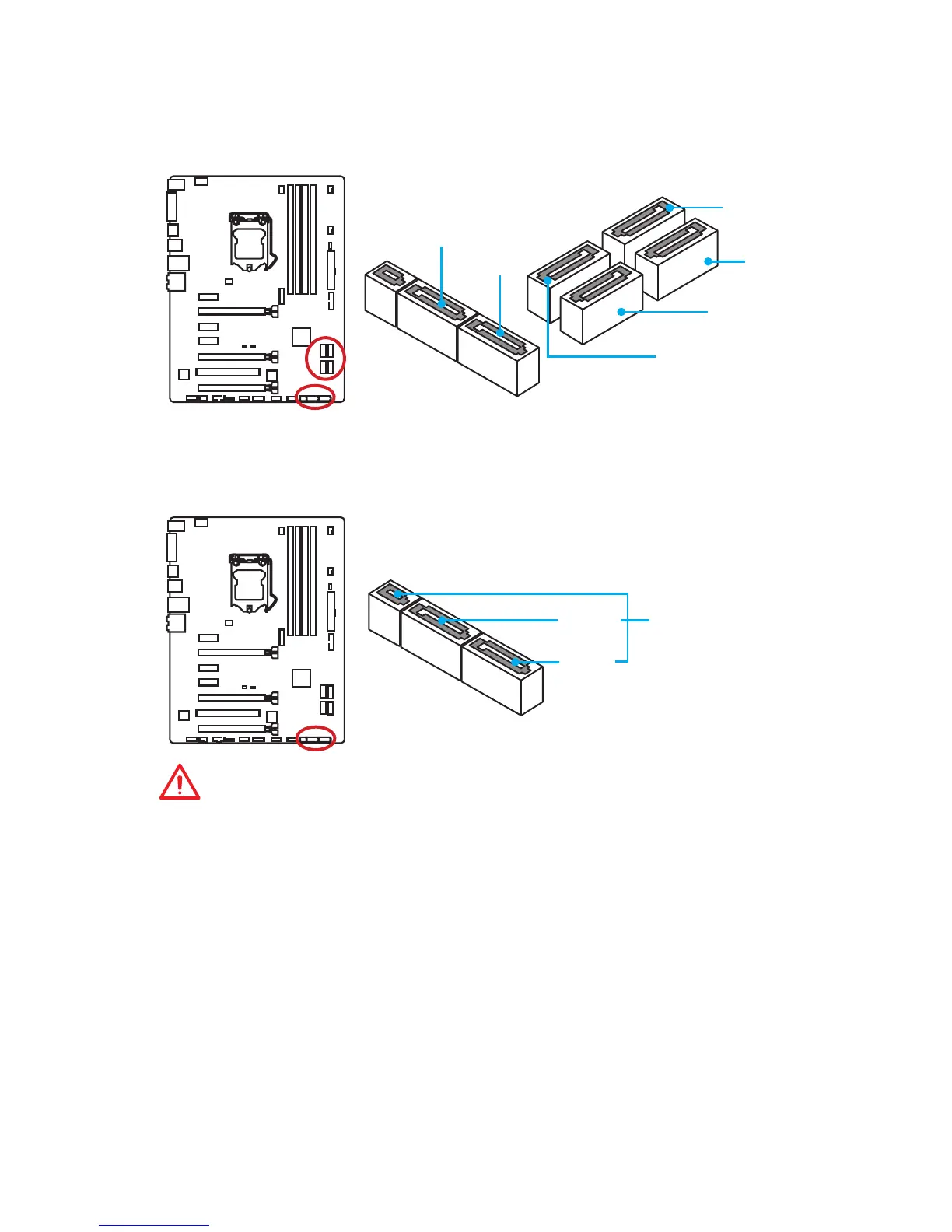

SATA1~6: SATA 6Gb/s Connectors
These connectors are SATA 6Gb/s interface ports. Each connector can connect to
one SATA device.
SATA6
SATA4
SATA5
SATA2
SATA3
SATA1
SE1_21: SATAe Connector
This connector is SATAe (SATA Express) interface port. Each SATAe connector can
be used with a single SATAe device or two legacy SATA devices.
SATA2
SATA1
SATAe connector
Important
●
SATA5~6 ports will be unavailable when installing the M.2 module in M.2 slot.
●
Please do not fold the SATA or SATAe cable at a 90-degree angle. Data loss may
result during transmission otherwise.
●
SATA or SATAe cables have identical plugs on either sides of the cable. However,
it is recommended that the flat connector be connected to the motherboard for
space saving purposes.
