MSI Z270 gaming M3 User Manual

23

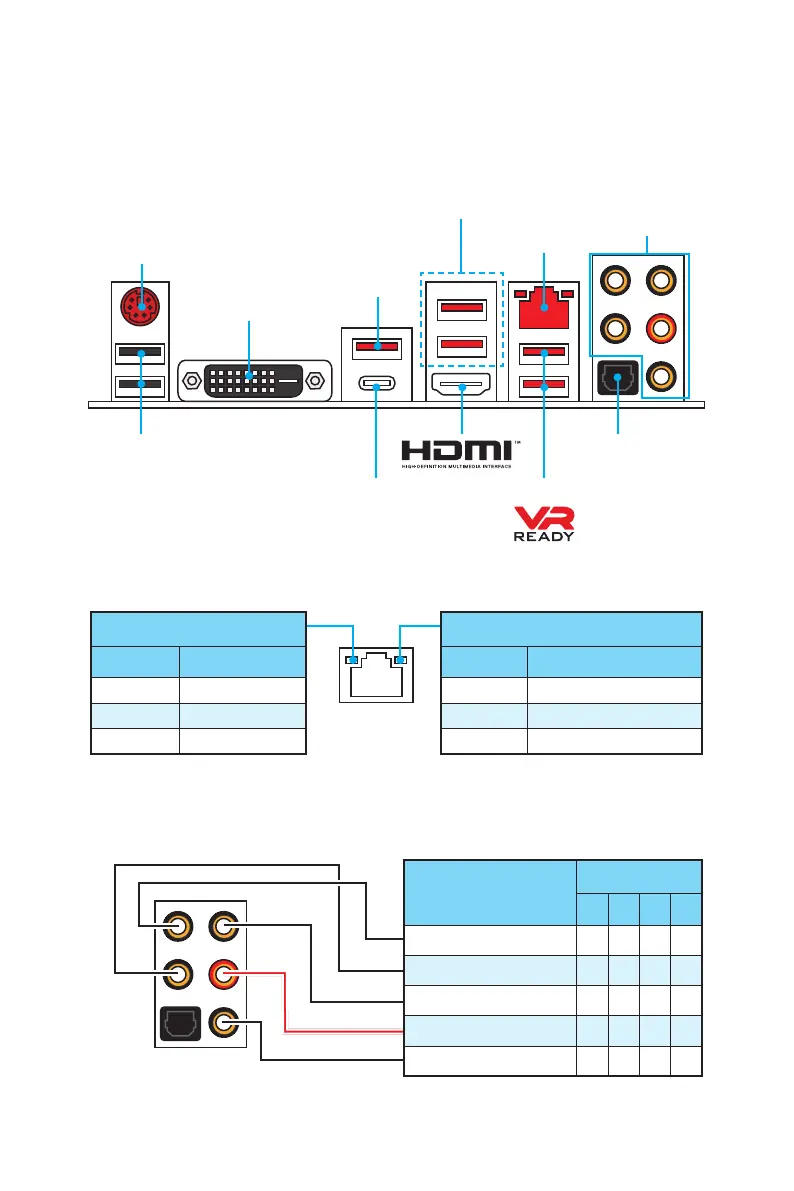

Rear I/O Panel
Rear I/O Panel
PS/2
LAN
USB 2.0
Audio Ports
Optical S/PDIF-Out
DVI-D
USB 3.1 Gen1
(Z270 GAMING M3/
H270 GAMING M3)
USB 3.1 Gen2
USB 3.1 Gen1USB 3.1 Gen2
Type-C
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Description
Off 10 Mbps connection
Green 100 Mbps connection
Orange 1 Gbps connection
LAN Port LED Status Table
Audio Ports Configuration
Audio Ports
Channel
2 4 6 8
Center/ Subwoofer Out ● ●
Rear Speaker Out ● ● ●
Line-In/ Side Speaker Out ●
Line-Out/ Front Speaker Out ● ● ● ●
Mic In
(●: connected, Blank: empty)

MSI Z270 gaming M3 Specifications

General

Chipset	Intel Z270
CPU Socket	LGA 1151
Form Factor	ATX
Memory Slots	4
Max Memory	64 GB
Memory Type	DDR4
Audio	Realtek ALC892
RAID Support	RAID 0, 1, 5, 10
Memory Speed	2133/ 2400/ 2800/ 3000/ 3200/ 3400/ 3600/ 3800 MHz
Storage Interface	6 x SATA 6Gb/s
USB Ports	6 x USB 2.0
LAN	Intel I219-V
Multi-GPU Support	AMD CrossFire
PCIe Slots	2 x PCIe 3.0 x16, 2 x PCIe 3.0 x1
