BIOS Setup

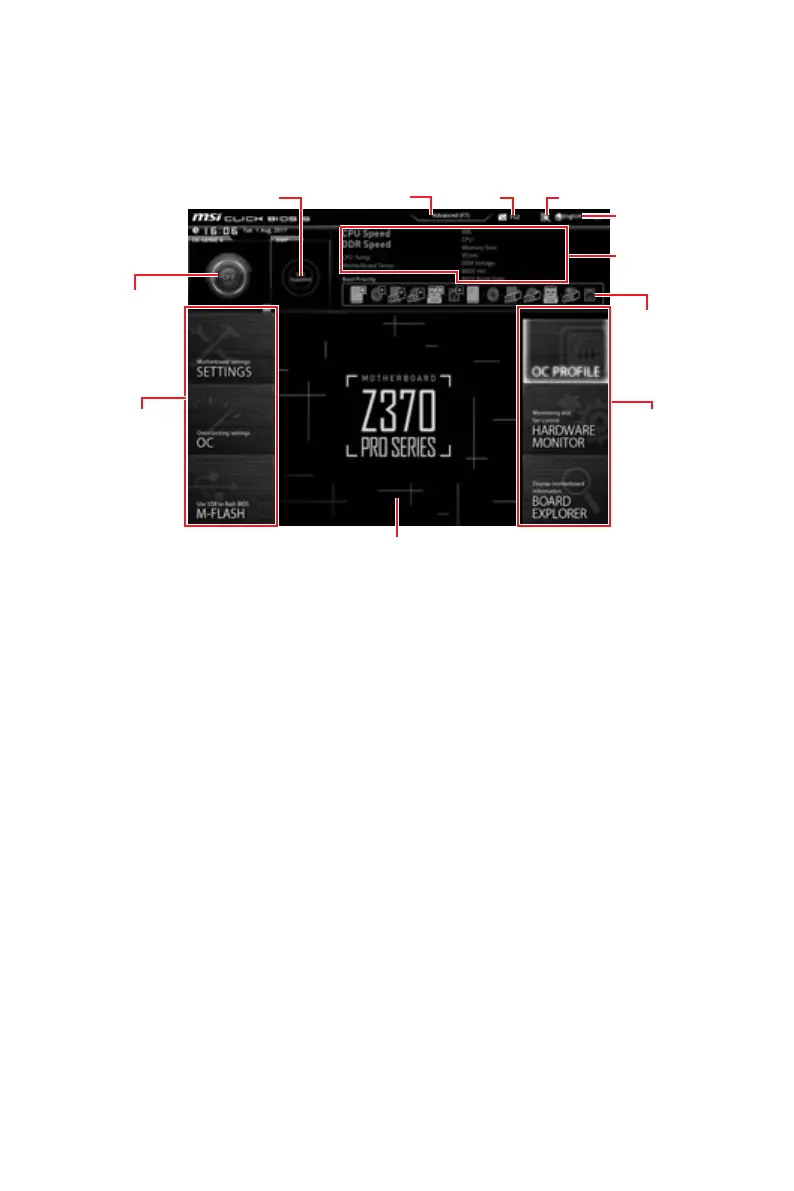

Advanced Mode
Press Setup Mode switch or F7 function key can switch between EZ Mode and
Advanced Mode in BIOS setup.
OC GENIE 4
switch
XMP switch
System
information
Boot device
priority bar
BIOS menu
selection
Language
SearchScreenshotSetup Mode switch
Menu display
BIOS menu
selection
y OC GENIE 4 switch/ XMP switch/ Setup Mode switch/ Screenshot/ Language/
System information/ Boot device priority bar - please refer to the descriptions of EZ
Mode Overview section.
y BIOS menu selection - the following options are available:
 SETTINGS - allows you to specify the parameters for chipset and boot devices.
 OC - allows you to adjust the frequency and voltage. Increasing the frequency may
get better performance.
 M-FLASH - provides the way to update BIOS with a USB flash drive.
 OC PROFILE - allows you to manage overclocking profiles.
 HARDWARE MONITOR - allows you to set the speeds of fans and monitor voltages
of system.
 BOARD EXPLORER - provides the information of installed devices on this
motherboard.
y Menu display - provides BIOS setting items and information to be configured.

MSI Z370-A PRO Specifications

General

ECC	No
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 4000 MHz
RAID levels	0, 1, 5, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Audio chip	Realtek ALC892
Cooling type	Passive
Component for	PC
Motherboard chipset	-
PC health monitoring	CPU, FAN, Power supply, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	ATX
Motherboard chipset family	Intel
Parallel processing technology support	2-Way CrossFireX
Processor socket	LGA 1151 (Socket H4)
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	1
Number of SATA connectors	6
Number of Parallel ATA connectors	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
BIOS type	UEFI
LAN controller	Realtek RTL8111H
Ethernet interface type	Gigabit Ethernet
Cables included	SATA
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.

Weight and Dimensions

Depth	- mm
Width	244 mm
Height	305 mm
