Intel® Optane™ Memory Configuration
Troubleshooting
When you installed the operating system in AHCI mode, the system will be changed to
RAID/ Optane mode after enabling Intel
®
Optane™ Memory. If you want to disable Intel
Optane Memory and switch BIOS setting from RAID/ Optane mode back to AHCI mode,
that may cause operating system damage. MSI has developed a software assistance
for this problem. You can disable Intel
®
Optane™ Memory and switch back to AHCI
mode while keep the system bootable with MSI SMART TOOL.
Please follow the steps below to disable Intel
®
Optane™ Memory and set the SATA
mode back to AHCI.

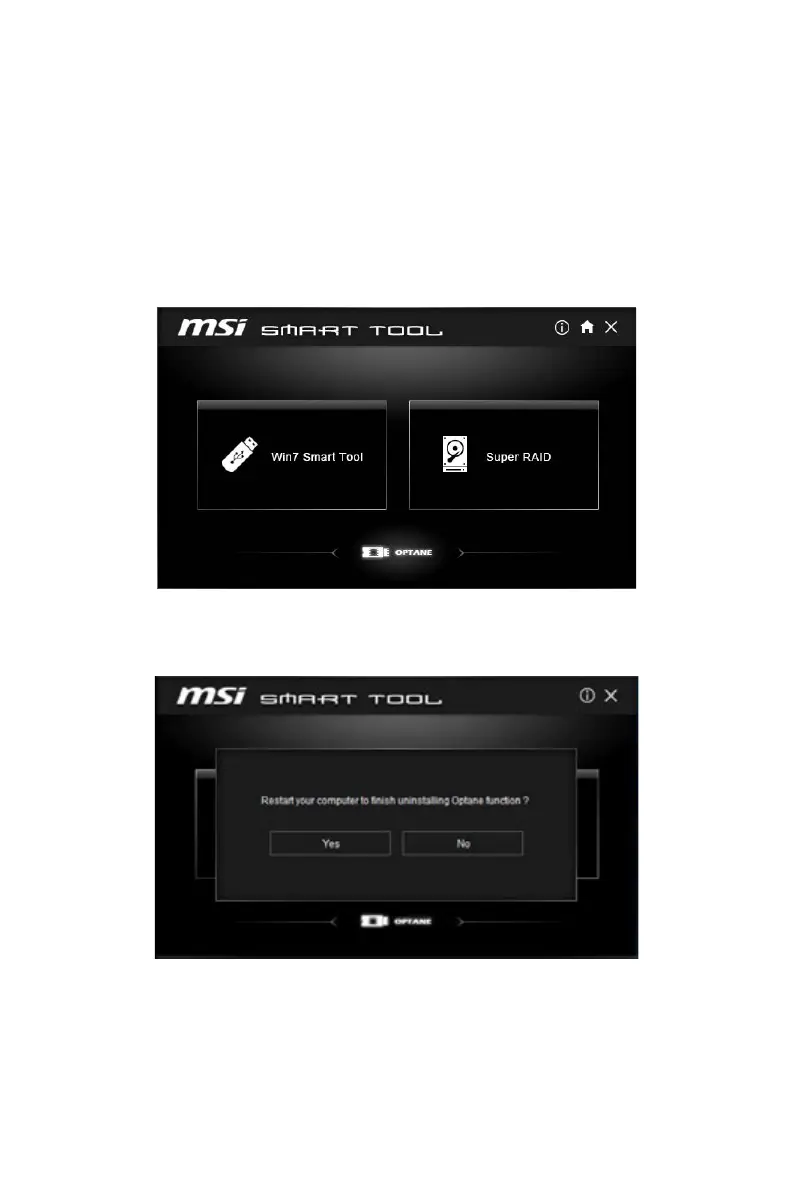

1. Run MSI SMART TOOL.
2. Click the OPTANE icon. (Note: the OPTANE icon is only available when Intel
®
Optane™ Memory has been enabled)
3. Click Yes.
4. Reboot System.

MSI Z370-A PRO Specifications

General

ECC	No
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 4000 MHz
RAID levels	0, 1, 5, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Audio chip	Realtek ALC892
Cooling type	Passive
Component for	PC
Motherboard chipset	-
PC health monitoring	CPU, FAN, Power supply, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	ATX
Motherboard chipset family	Intel
Parallel processing technology support	2-Way CrossFireX
Processor socket	LGA 1151 (Socket H4)
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	1
Number of SATA connectors	6
Number of Parallel ATA connectors	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
BIOS type	UEFI
LAN controller	Realtek RTL8111H
Ethernet interface type	Gigabit Ethernet
Cables included	SATA
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.

Weight and Dimensions

Depth	- mm
Width	244 mm
Height	305 mm
