MSI Z370 GAMING PRO CARBON User Manual

115
Intel® Optane™ Memory Configuration
Troubleshooting
When you installed the operating system in AHCI mode, the system will be changed to
RAID/ Optane mode after enabling Intel
®
Optane™ Memory. If you want to disable Intel
Optane Memory and switch BIOS setting from RAID/ Optane mode back to AHCI mode,
that may cause operating system damage. MSI has developed a software assistance
for this problem. You can disable Intel
®
Optane™ Memory and switch back to AHCI
mode while keep the system bootable with MSI SMART TOOL.
Please follow the steps below to disable Intel
®
Optane™ Memory and set the SATA
mode back to AHCI.

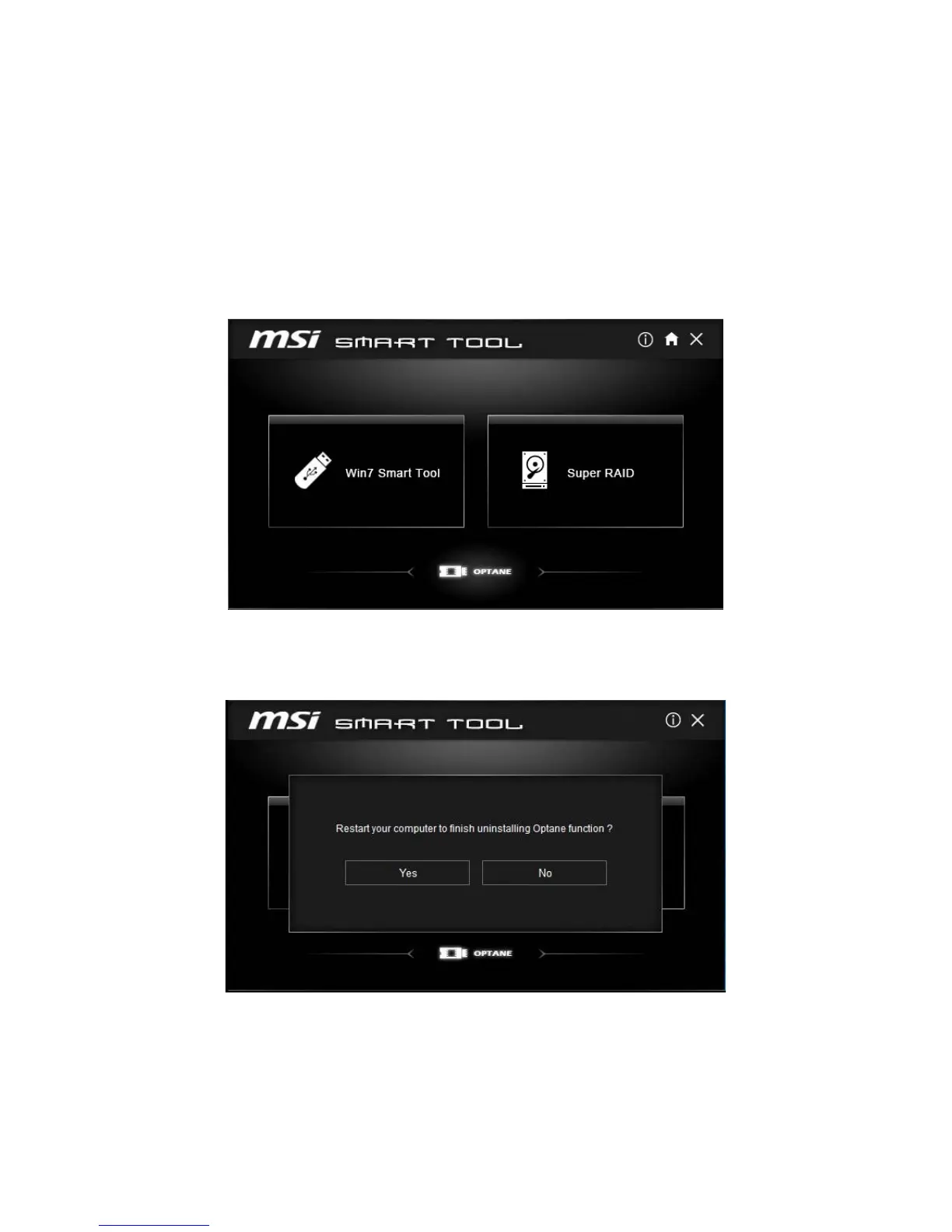

1. Run MSI SMART TOOL.
2. Click the OPTANE icon. (Note: the OPTANE icon is only available when Intel
®
Optane™ Memory has been enabled)
3. Click Yes.
4. Reboot System.

MSI Z370 GAMING PRO CARBON Specifications

General

ECC	No
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 4000 MHz
Audio chip	Realtek ALC1220
Cooling type	Passive
Component for	PC
Motherboard chipset	Intel® Z370
PC health monitoring	CPU, FAN, Power supply, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	ATX
Motherboard chipset family	Intel
RAID levels	0, 1, 5, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Parallel processing technology support	2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX
Processor socket	LGA 1151 (Socket H4)
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	1
Number of M.2 (M) slots	2
PCI Express x1 (Gen 3.x) slots	3
BIOS type	UEFI
Cables included	SATA
LAN controller	Intel® I219-V
Ethernet interface type	Gigabit Ethernet
Number of SATA connectors	6
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.

Weight and Dimensions

Depth	- mm
Width	243 mm
Height	304 mm
